CONTROL AT A GLANCE
Twin gauges, a regulator and Euro coupling help set the outlet for compatible tools and accessories.

24L SILENT PRO OIL-FREE AIR COMPRESSORControlled compressed air for light-trade, garage and DIY tasks
JCB-OFAC-24HConfirmed product features designed around workshop use, straightforward control and routine maintenance.

Twin gauges, a regulator and Euro coupling help set the outlet for compatible tools and accessories.

The oil-free pump removes routine pump-oil changes and avoids pump-oil carryover.

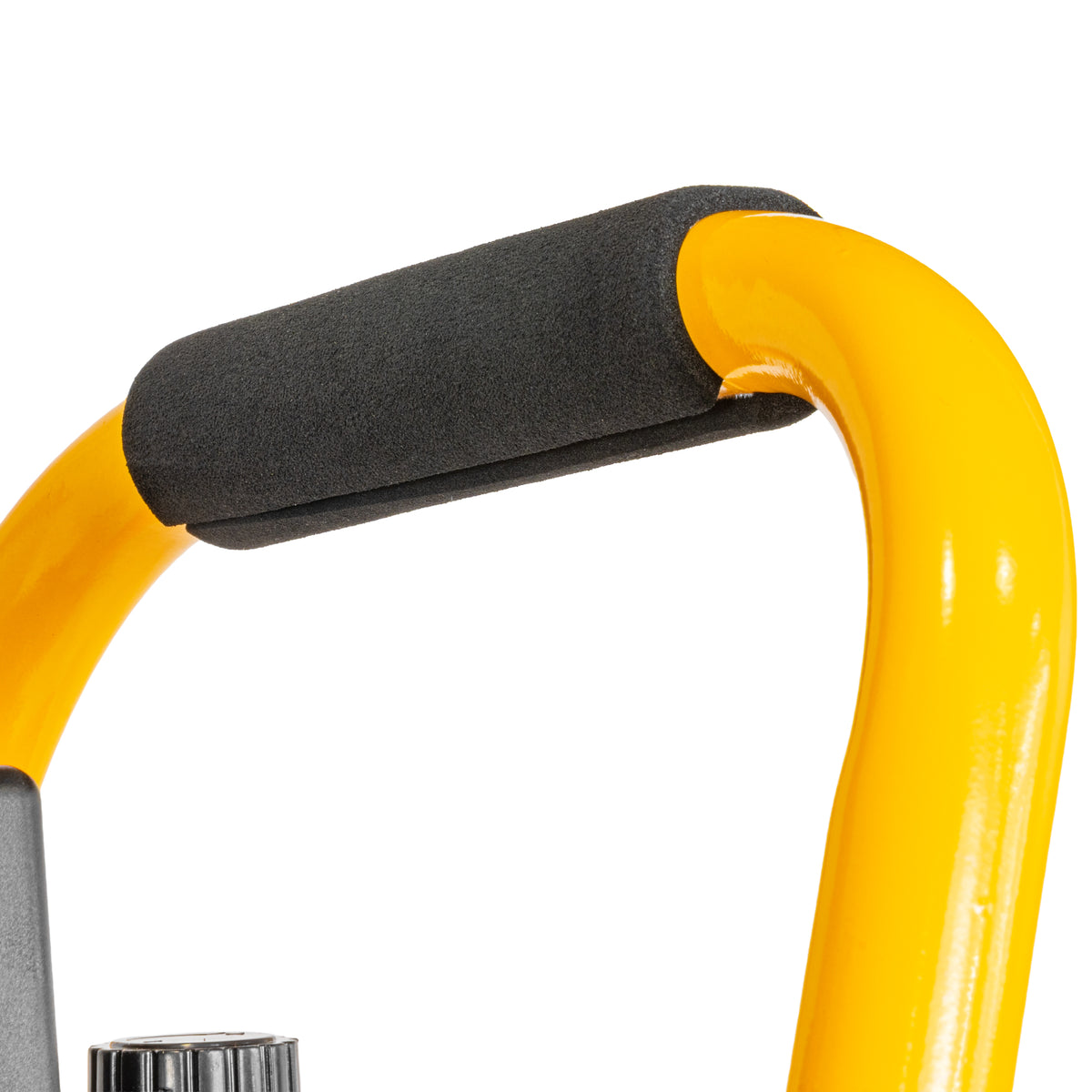

A fixed handle and wheels support movement around workshops and garages.
Silent Pro operation supports garages and workshops where operating noise matters.
One year commercial cover and 90 days for hire, subject to current terms.
Choose compatible tools and accessories only after checking working pressure, airflow and duty-cycle requirements.

Useful stored air for compatible tyre and inflatable equipment.

Support compatible short-duration stapling tasks after checking tool demand.

Oil-free air for compatible airbrush work in a suitable environment.

Clear loose workshop debris with a compatible blow gun and suitable PPE.

Compare receiver size, air displacement and working format to the demands of the task.

8L OIL-FREE AIR COMPRESSOR
VIEW MODEL
50L OIL-FREE AIR COMPRESSOR
VIEW MODEL
50L VERTICAL AIR COMPRESSOR
Models shown are sold separately. Always match the connected tool to the compressor’s pressure, air-delivery and duty-cycle specifications.
Description

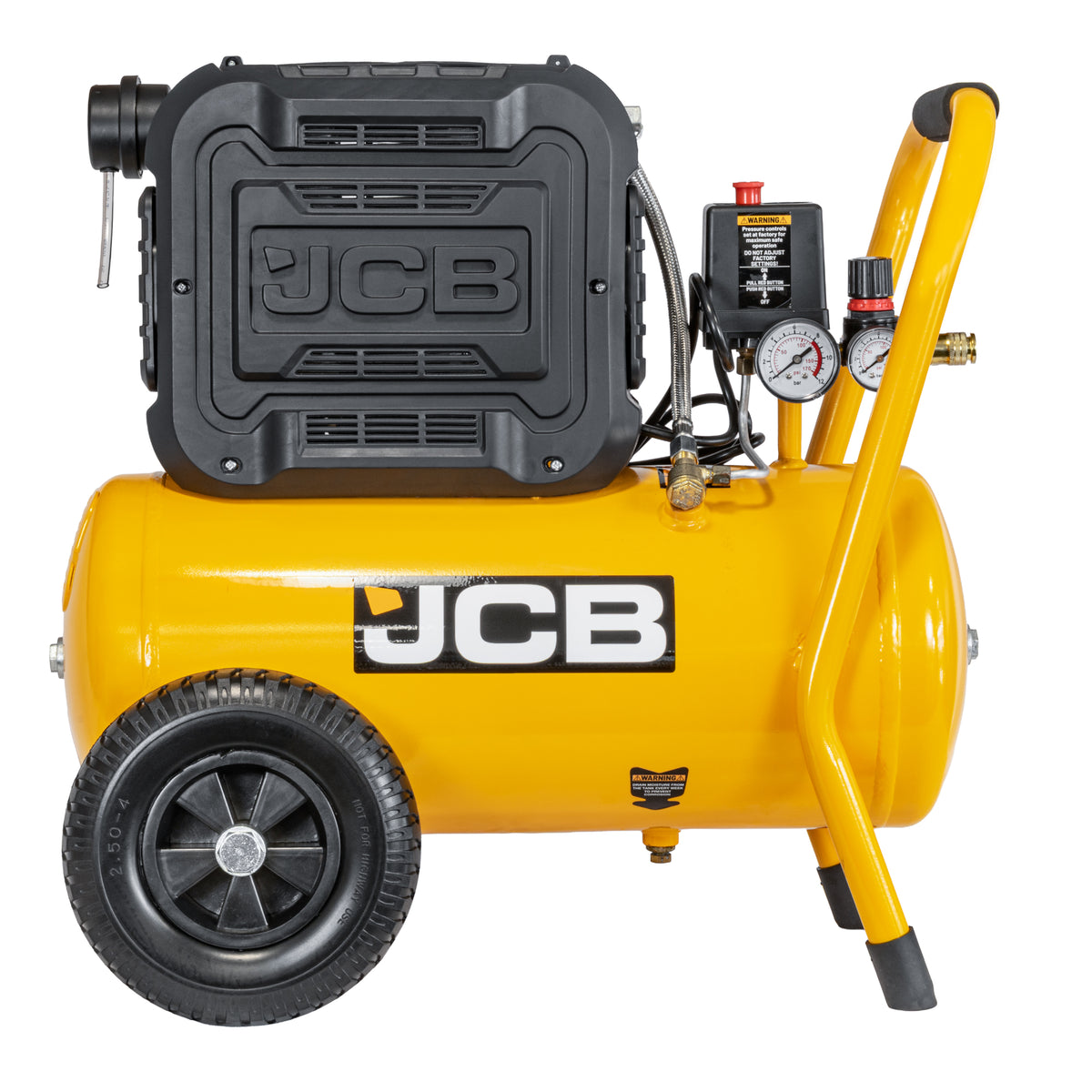

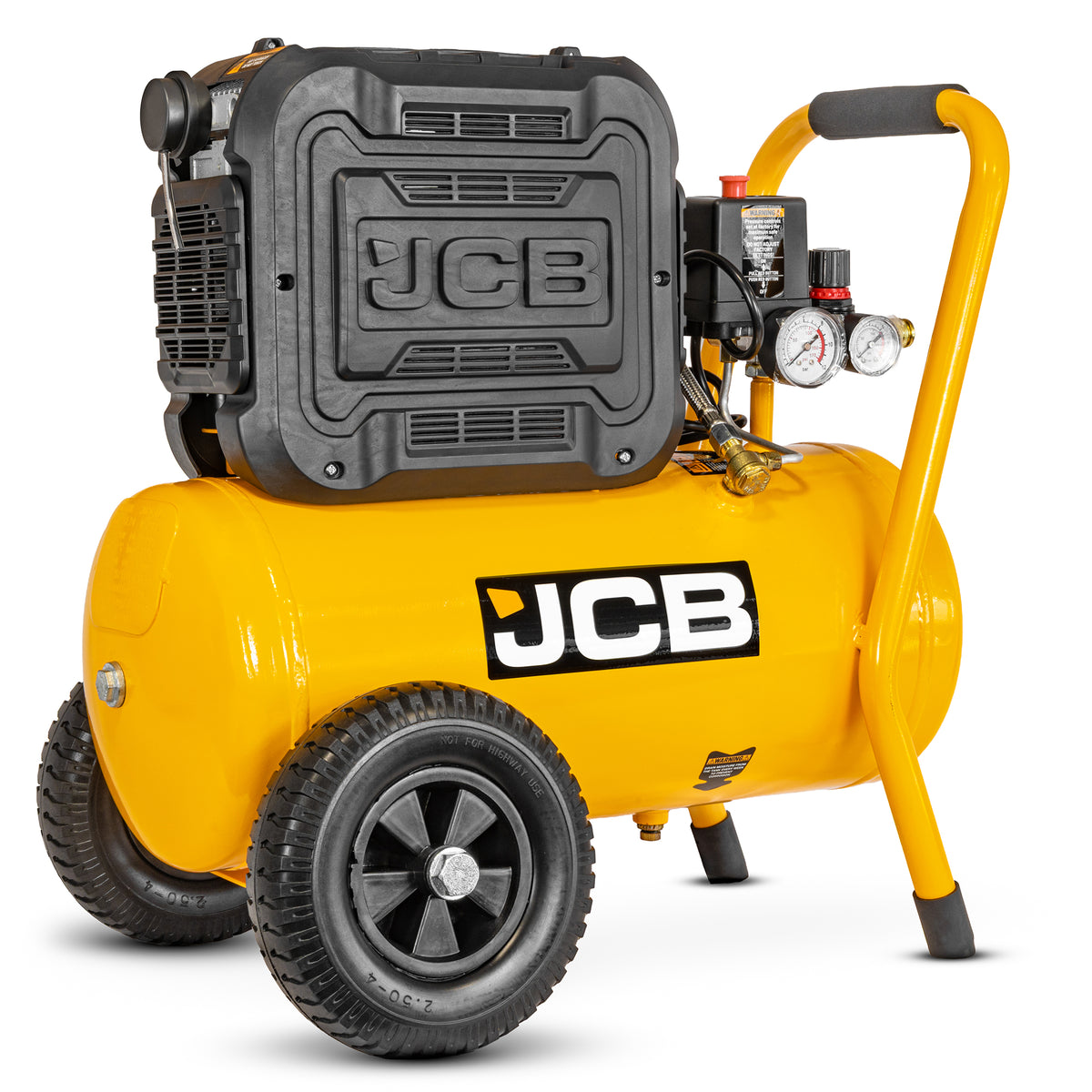

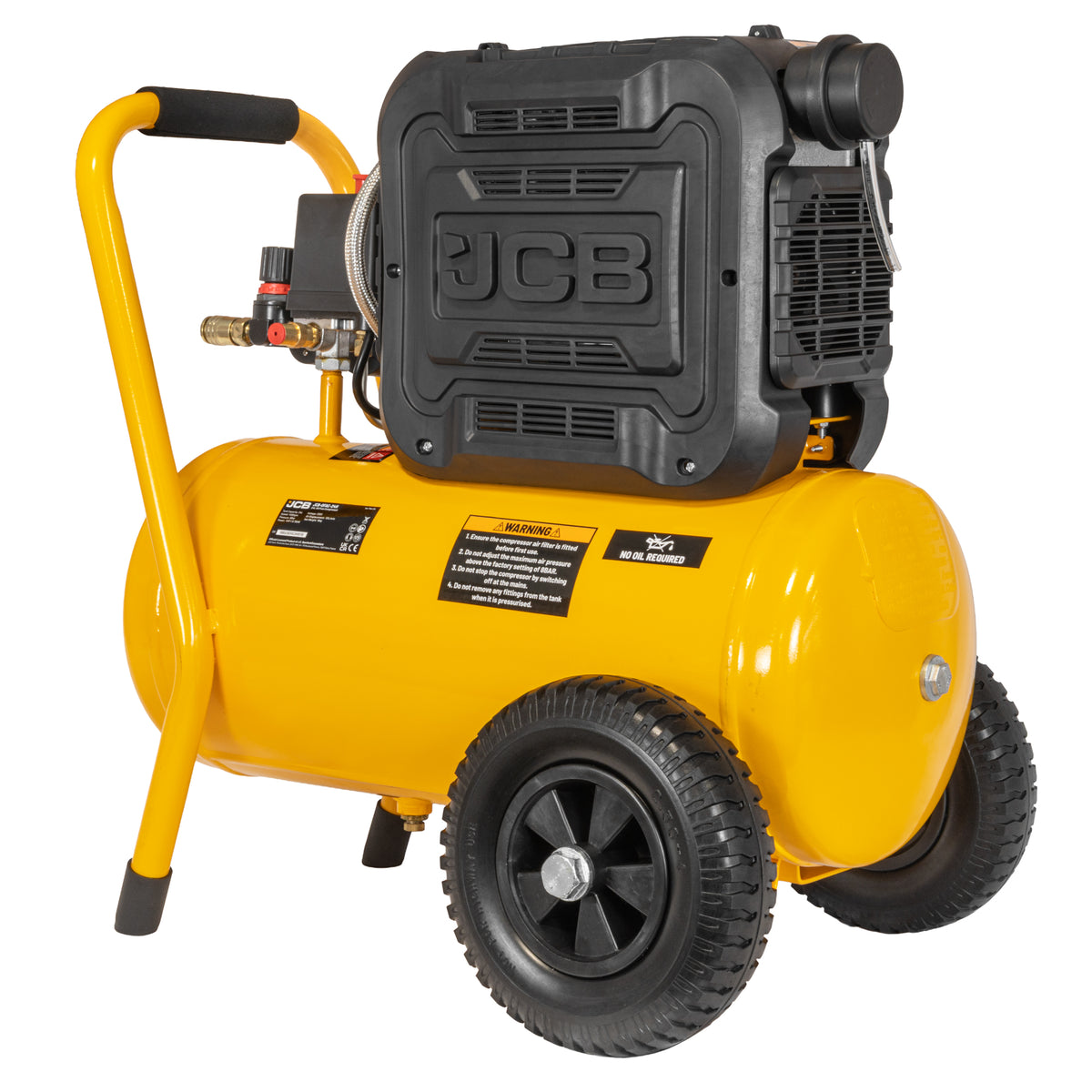

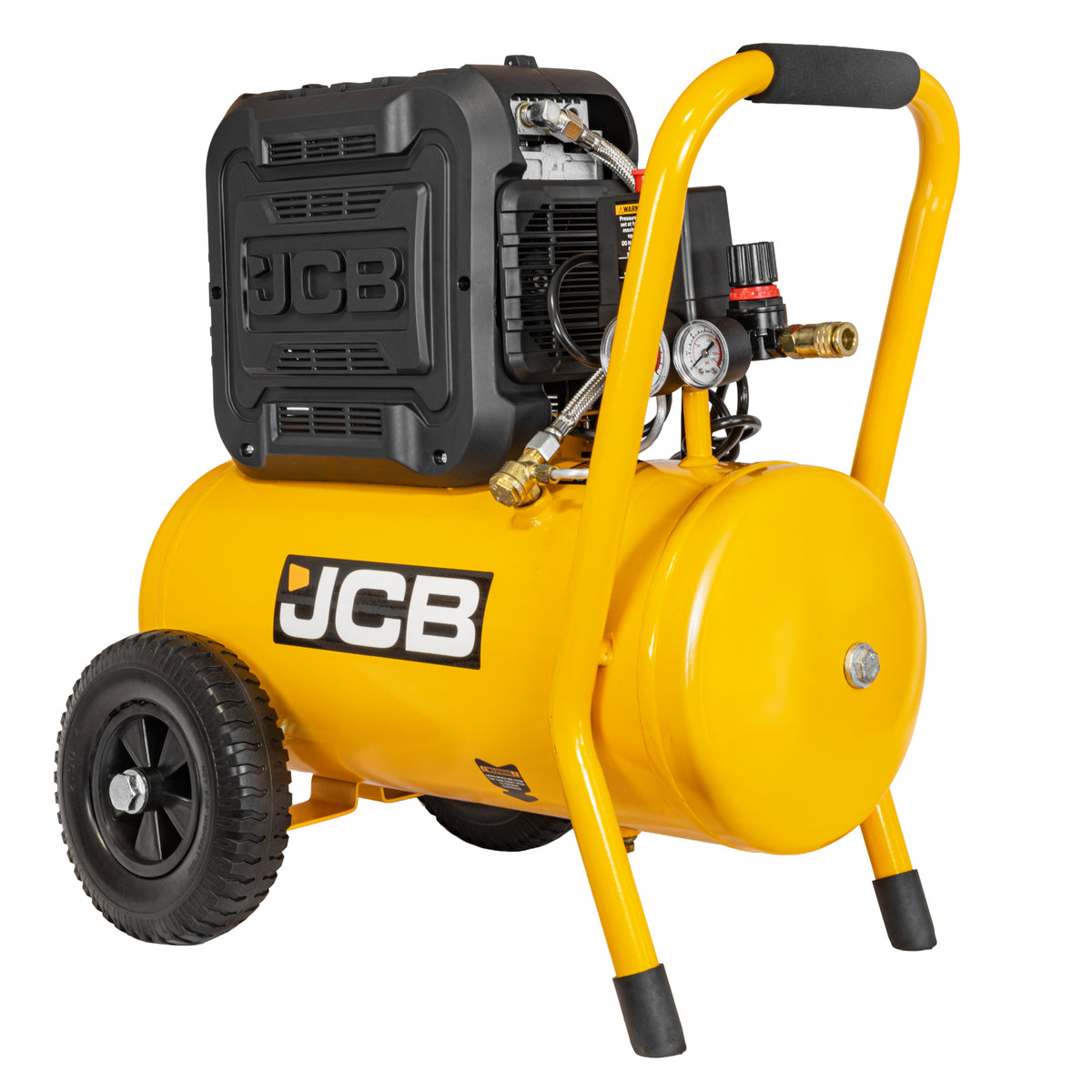

Part of the JCB Silent Pro range, the JCB-OFAC-24H is a 24L oil-free air compressor for light trade, workshop and DIY use. It is suitable for tasks including inflation, air brushing, blow cleaning and light stapling, subject to the connected tool's air requirements. Its 750W, 1HP direct-drive pump provides 131L/min air displacement and reaches 8 bar/116psi.

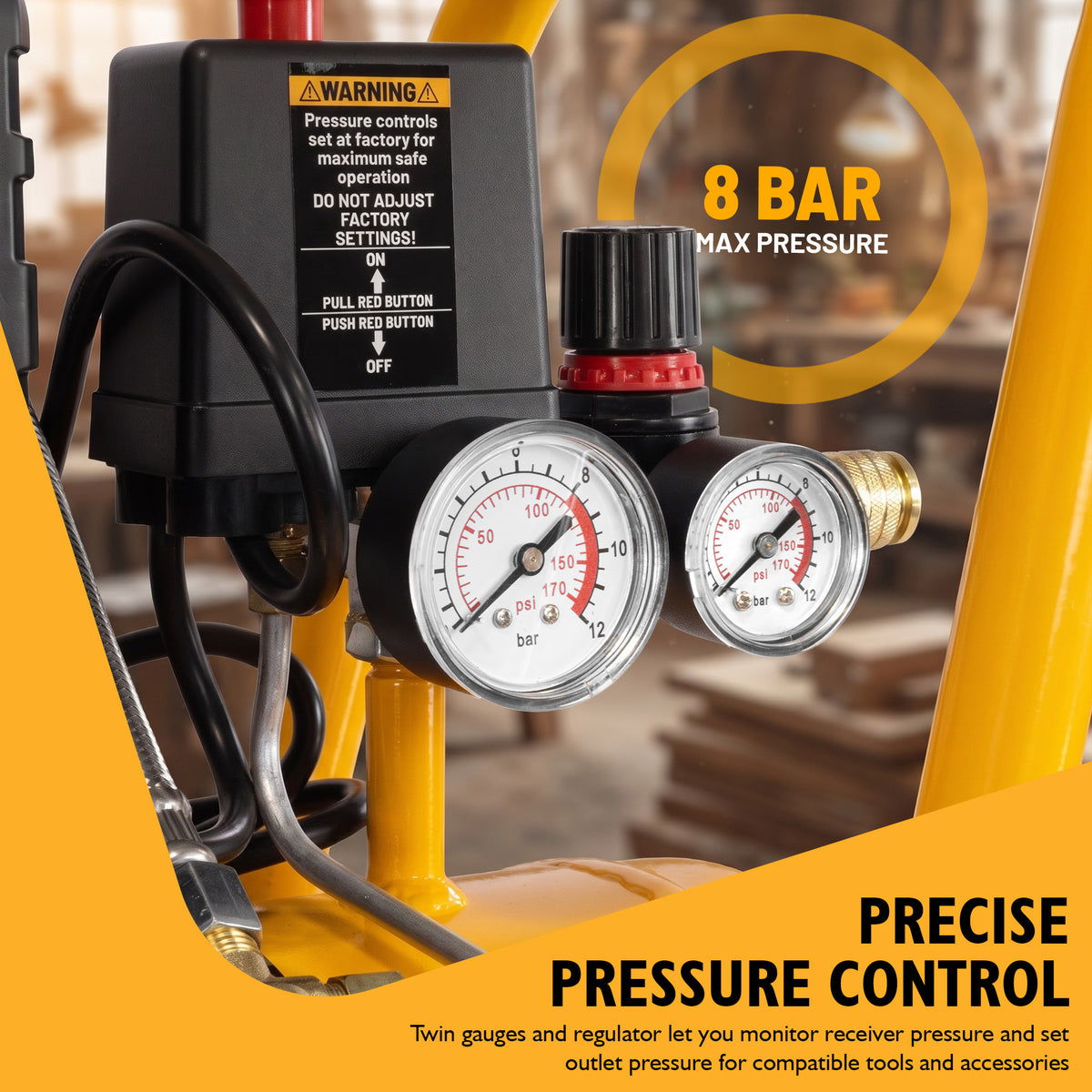

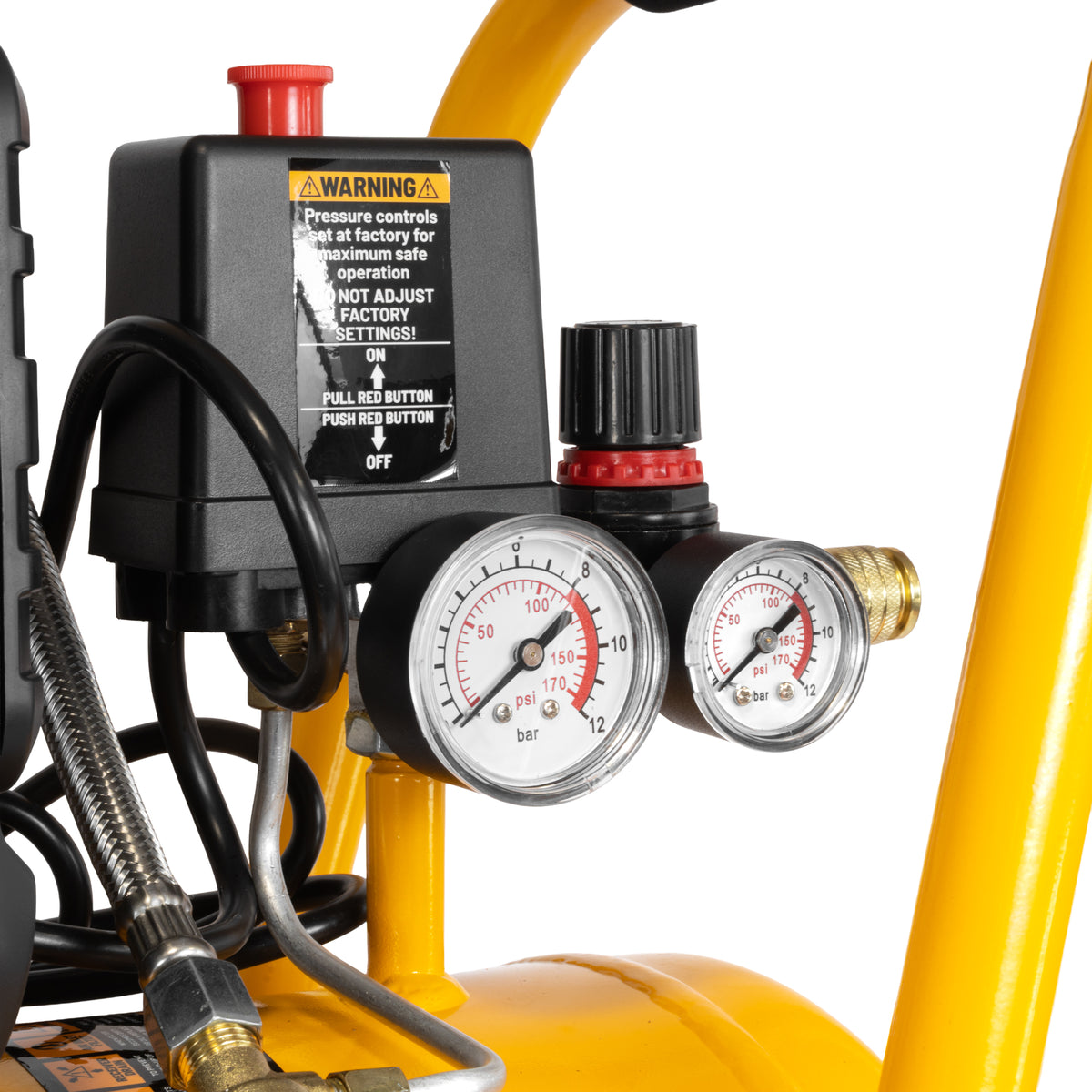

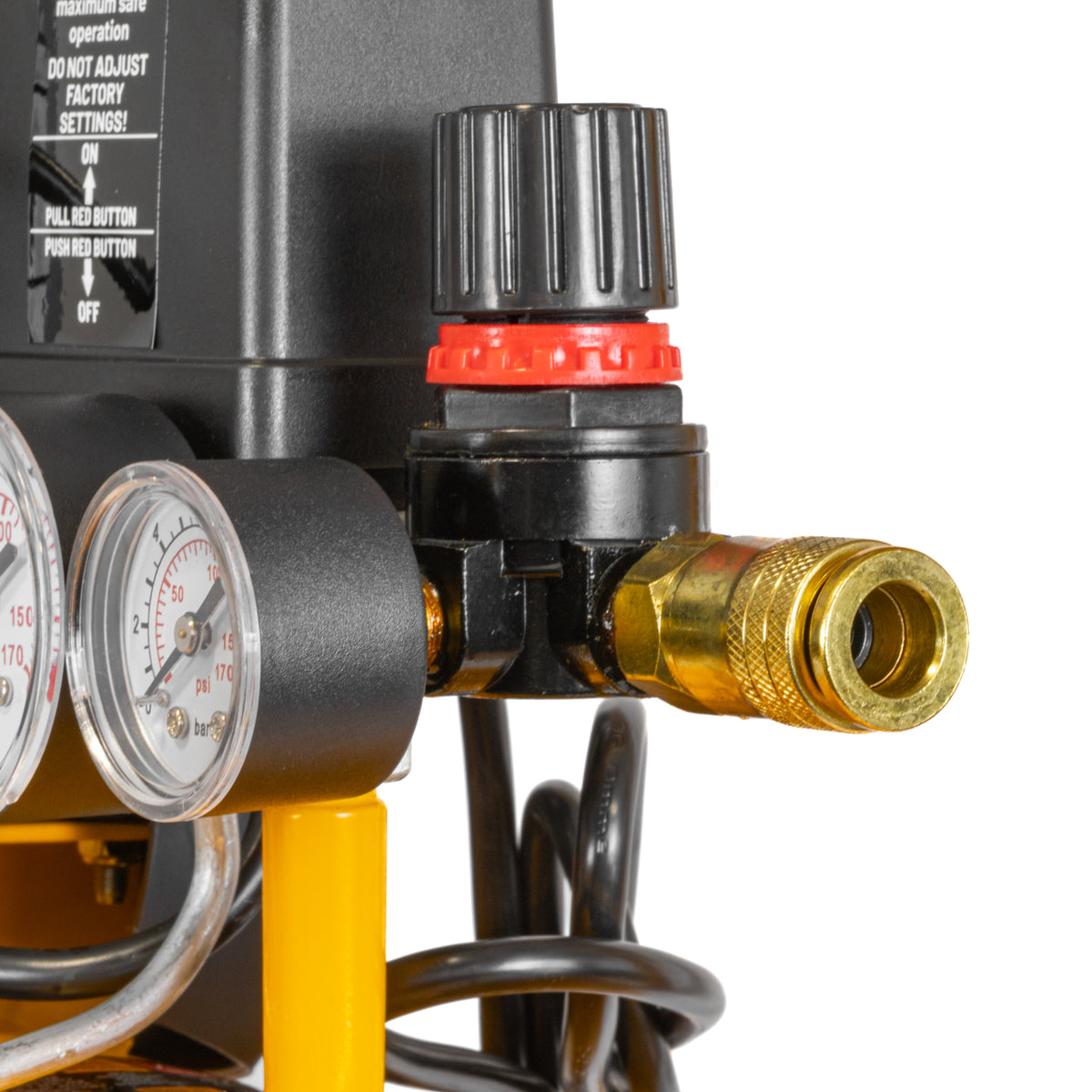

Twin pressure gauges, a pressure regulator and a Euro coupling with 1/4in BSP connection make it straightforward to monitor receiver pressure and connect compatible accessories and air tools.

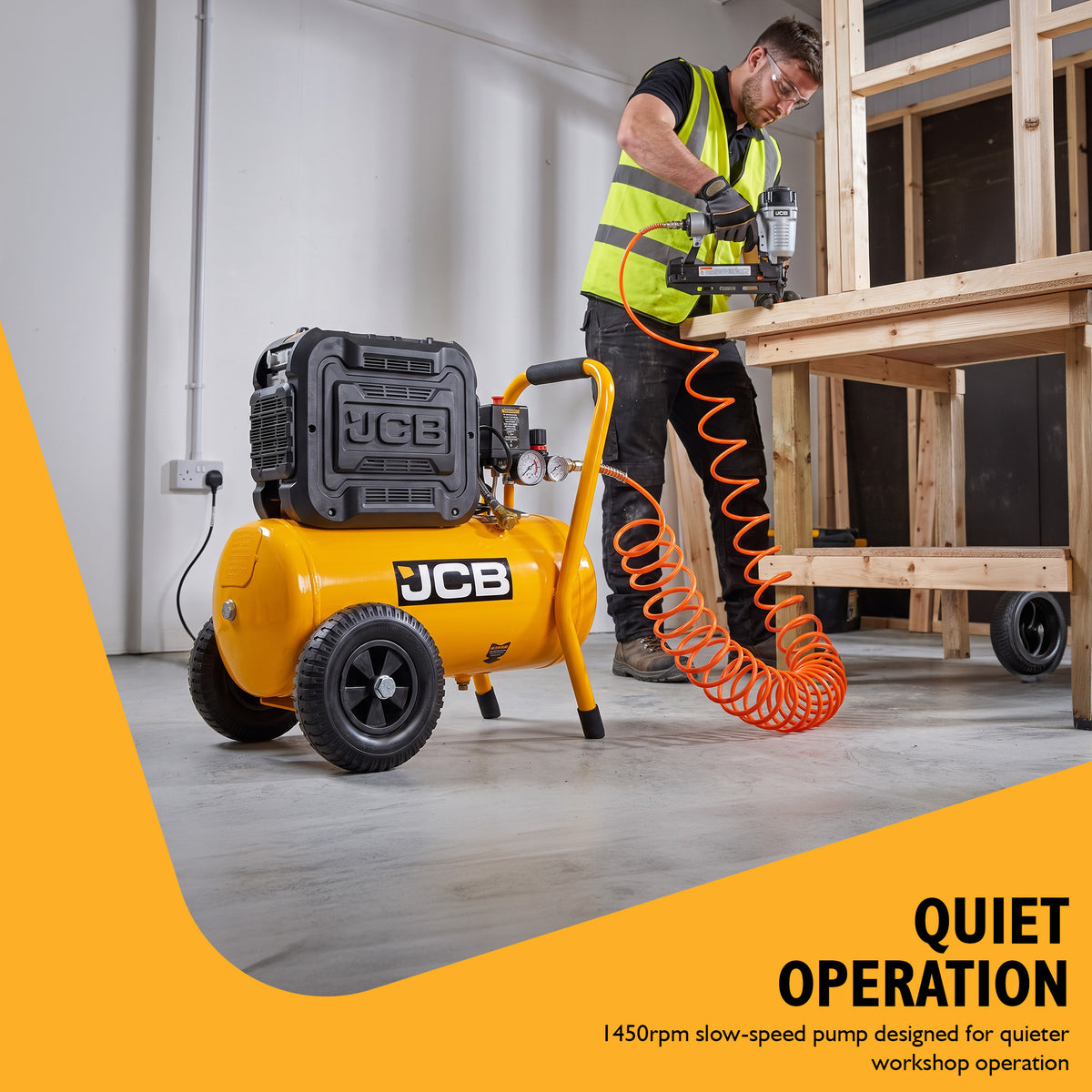

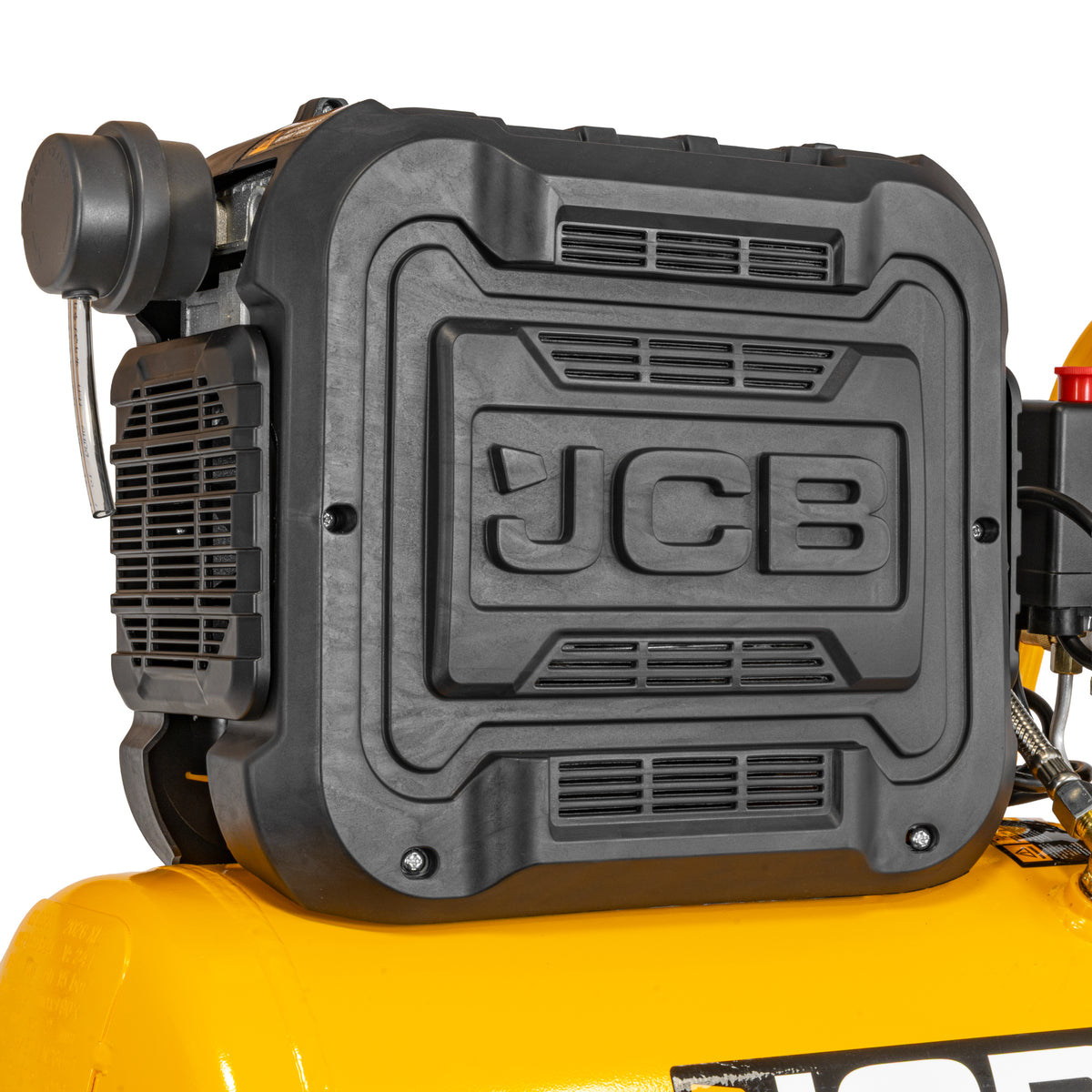

The JCB Silent Pro design uses a 1450rpm slow-speed pump for quieter workshop operation. Intertek testing records a 65dB(A) sound pressure level, making normal conversation practical in typical indoor use. The separate 78dB(A) figure is the sound power level under the applicable test conditions; actual perceived noise varies with distance and surroundings.

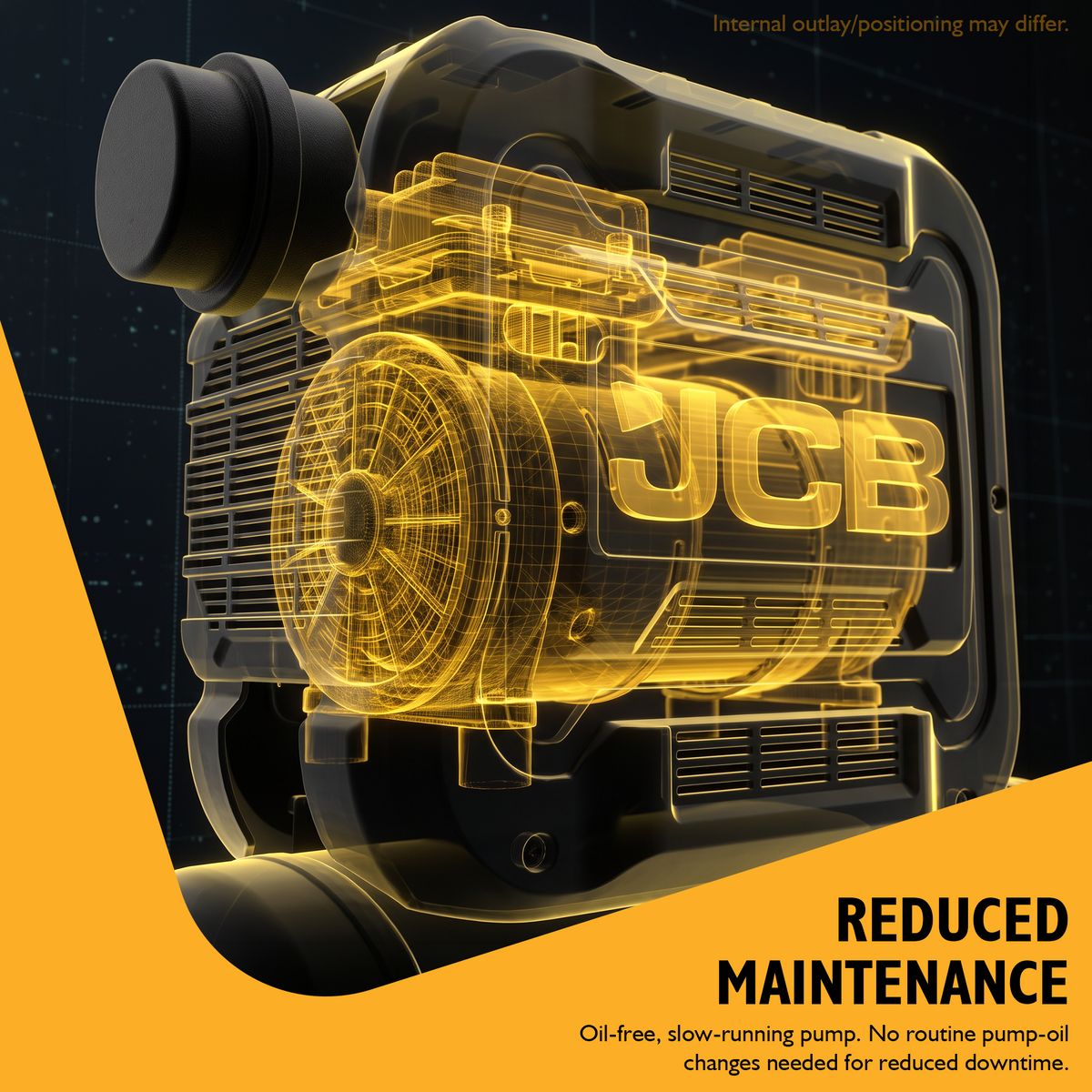

The oil-free pump does not need routine pump-oil changes, reducing pump maintenance and downtime while avoiding pump-oil carryover into the airline for suitable spraying and air-brushing tasks. Its direct-drive design also helps keep the compressor compact for easier storage and transport between jobs.

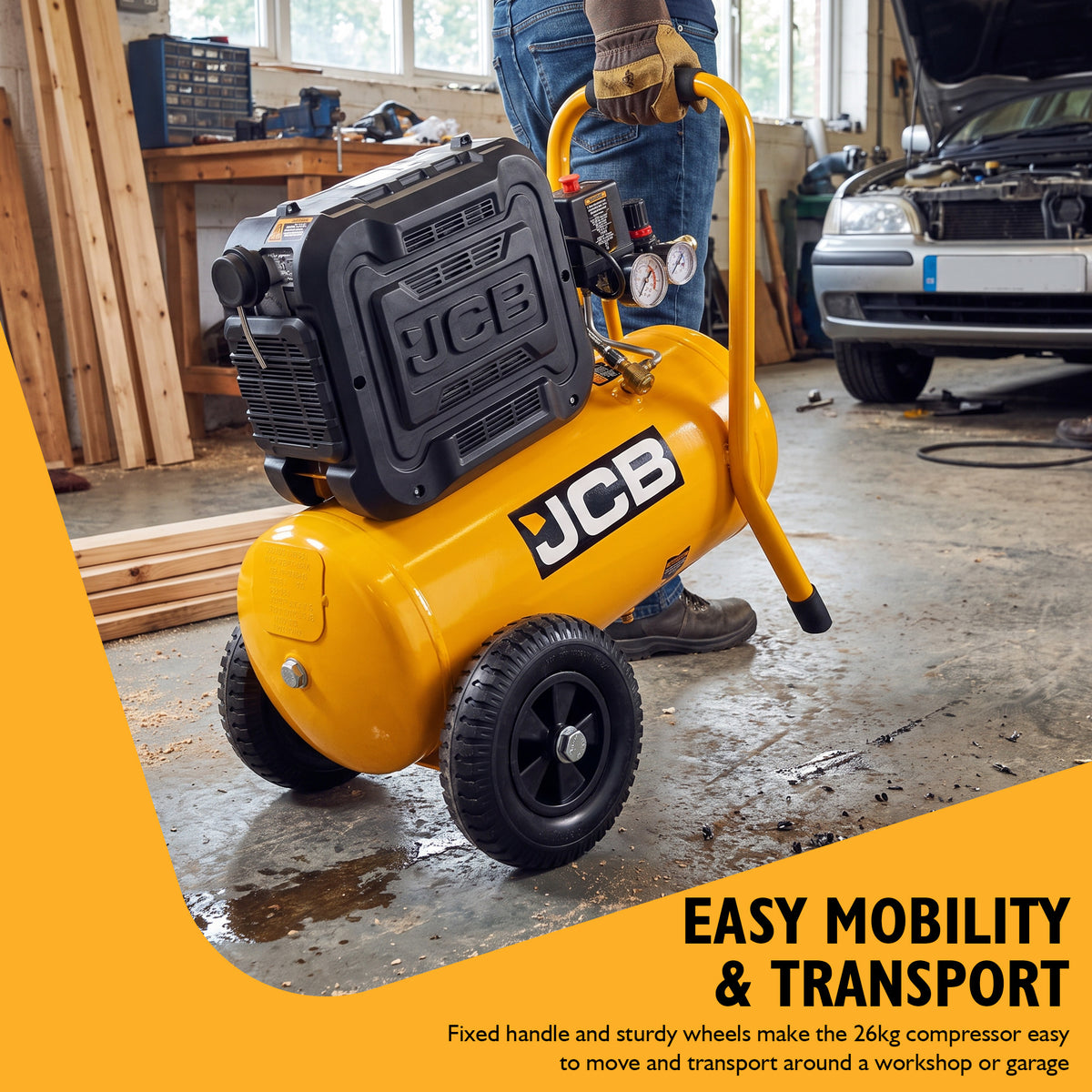

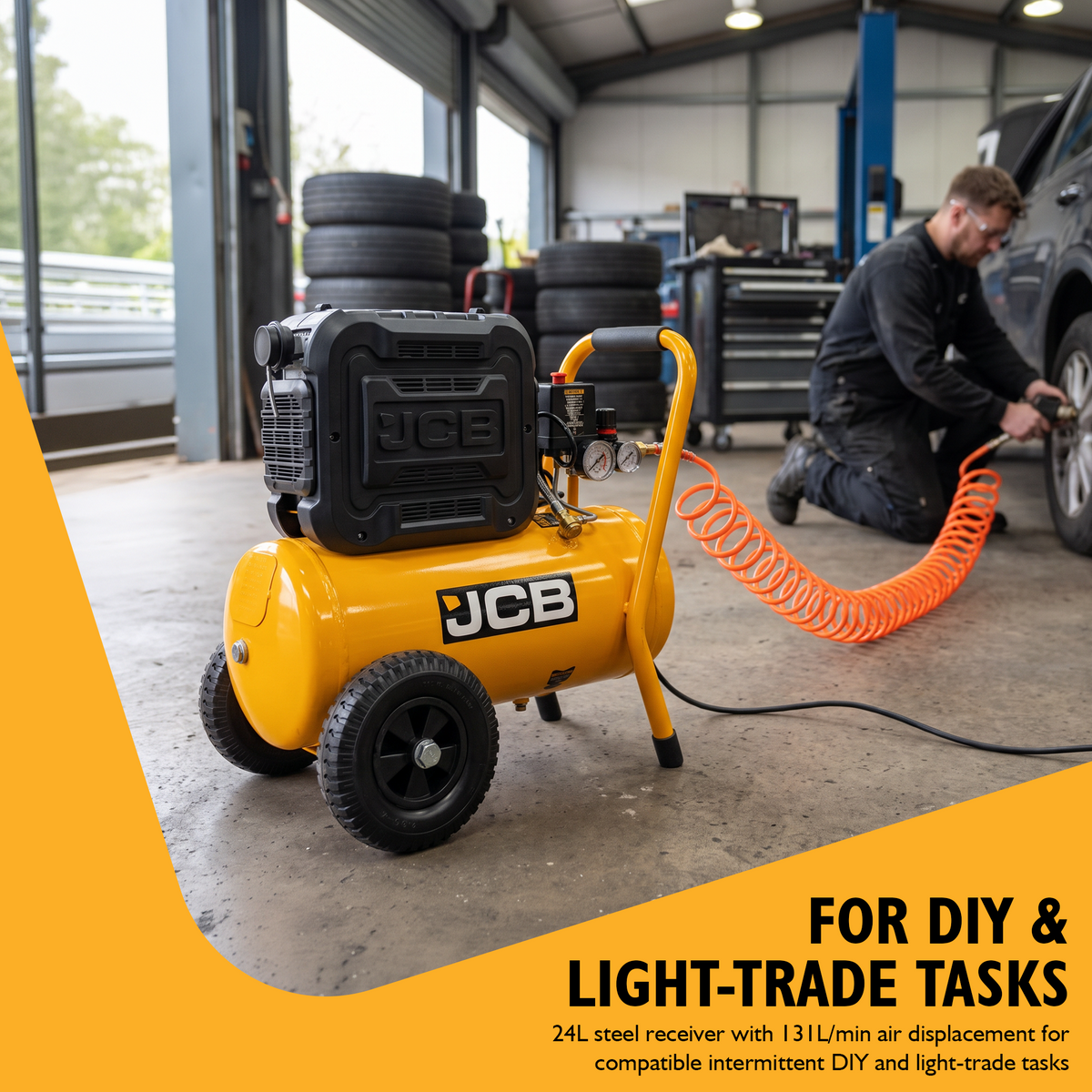

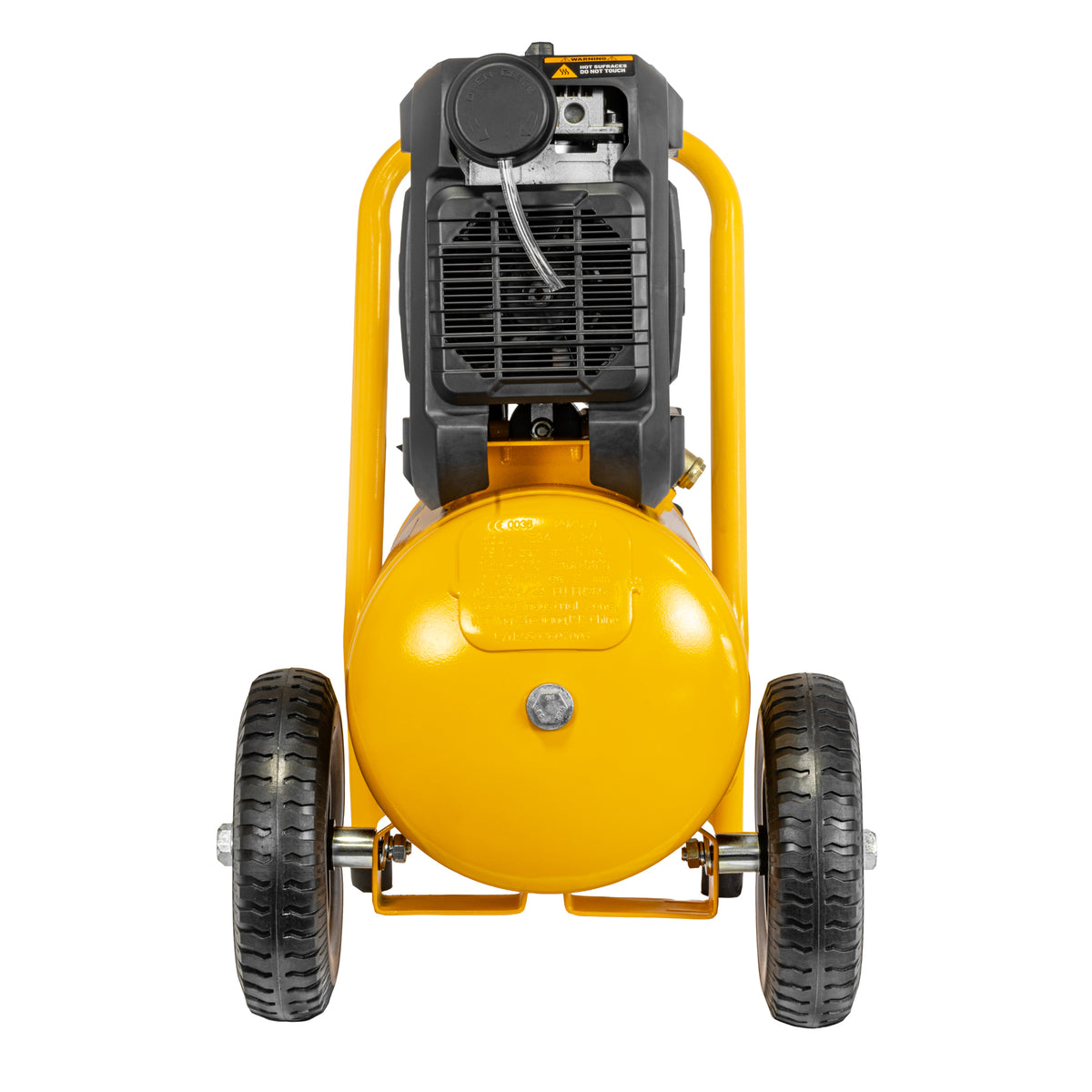

The 24L steel receiver provides ample stored-air capacity for intermittent DIY and light-trade tasks such as inflation, blow cleaning, air brushing and light stapling. For higher air demand or longer tool run times, consider the JCB-OFAC-50H, subject to the connected tool's air requirements. The fixed handle and wheels make the 26kg compressor easier to move and transport around a workshop or garage.
UK-based service and parts support is available. 2 years for residential/non-commercial use, 1 year for commercial use and 90 days for hire, subject to current JCB Tools UK warranty terms.
Specifications
| Product type | Silent Pro oil-free air compressor |
| Tank capacity | 24L |
| Pump type | Oil-free, direct drive |
| Rated power | 750W / 1HP |
| Motor speed | 1450rpm |
| Voltage | 230V |
| Maximum pressure | 8 bar / 116psi |
| Free air delivery (FAD) | 50L/min / 1.77CFM |
| Air displacement | 131L/min / 4.63CFM |
| Air outlet | Euro coupling with 1/4in BSP connection |
| Sound pressure level | 65dB(A), K=3dB |
| Sound power level | 78dB(A), K=1.99dB |
| Duty type | S1 continuous duty |
| Power cable | 1.5m |
| Tank material | Steel |
| Mobility | Handle and wheels |
| Net weight | 26kg |
| Gross weight | 29kg |
| Assembled dimensions (H x W x L) | 620 x 390 x 600mm |
| Packaged dimensions (H x W x L) | 680 x 360 x 660mm |
