JCB, 7.6kW/3.8kW Dual-Voltage Inverter Generator, Remote Start | JCB-IG8500DVE
JCB, 7.6kW/3.8kW Dual-Voltage Inverter Generator, Remote Start | JCB-IG8500DVE
Product Details
Description

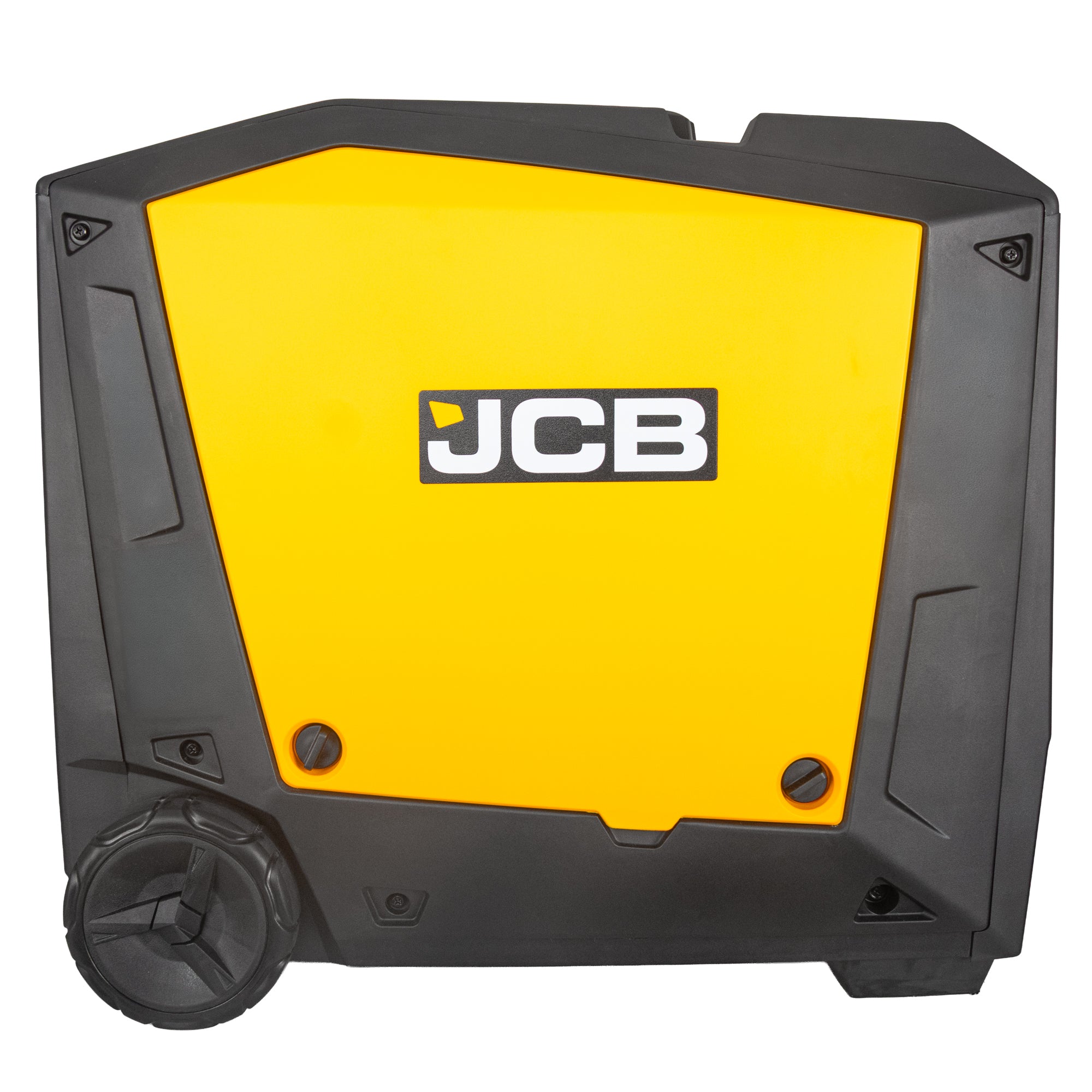

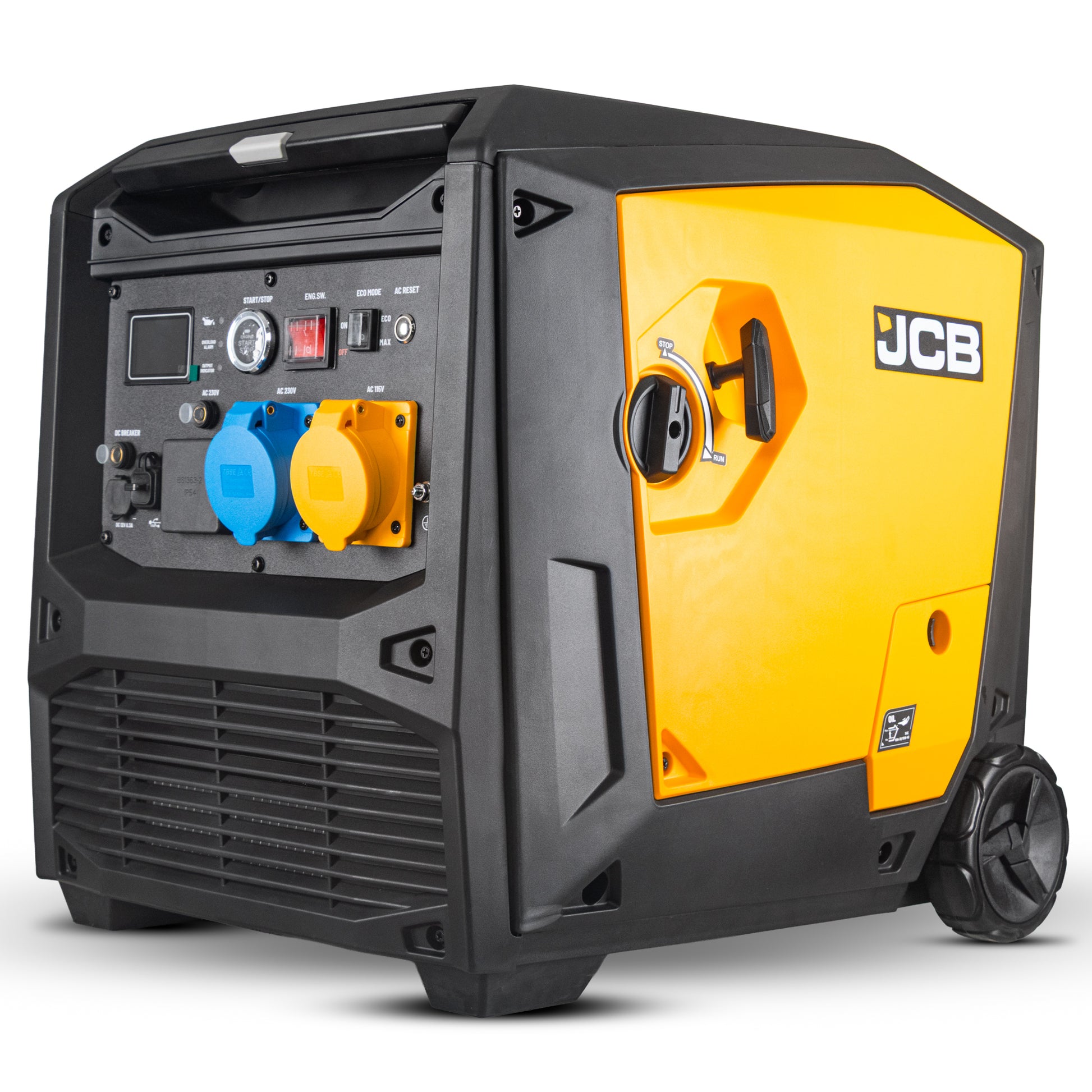

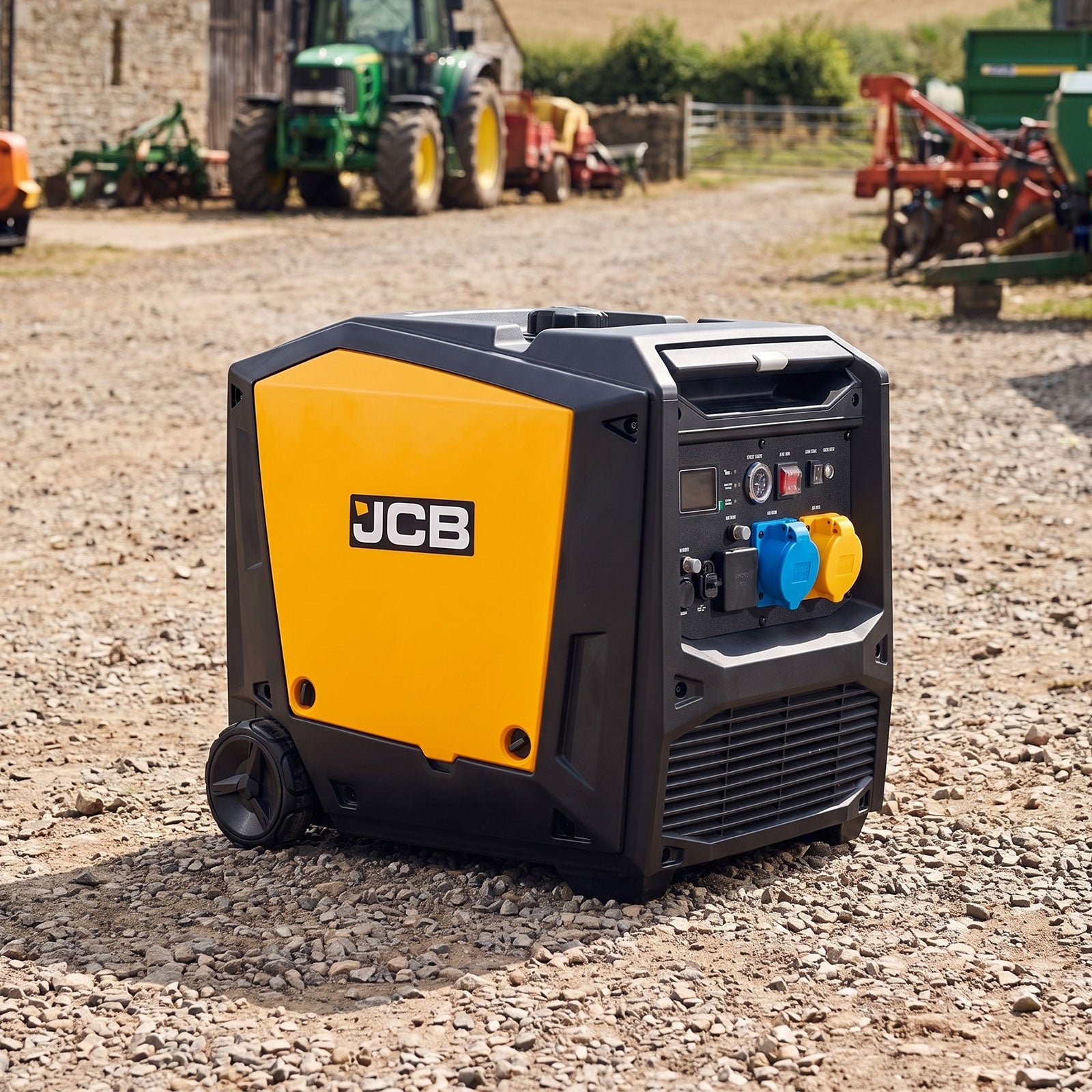

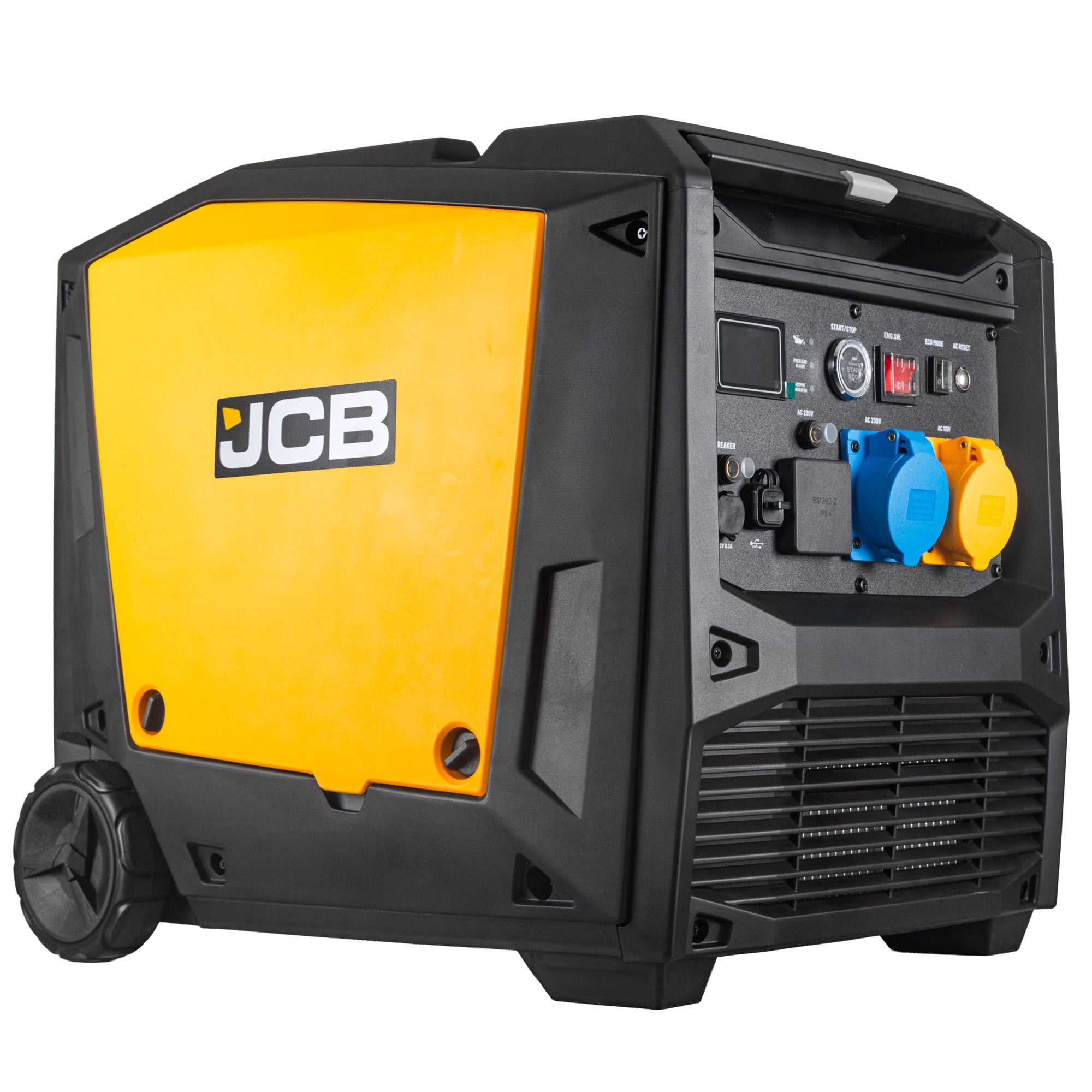

The JCB-IG8500DVE is a wheeled dual-voltage petrol inverter generator for compatible 110V/115V and 230V equipment, lighting and temporary power. Output is 7,600W maximum / 7,200W rated at 230V and 3,800W maximum / 3,600W rated at 115V, with pure sine wave output at THD ≤3%, electric start, recoil backup and factory-paired remote start.

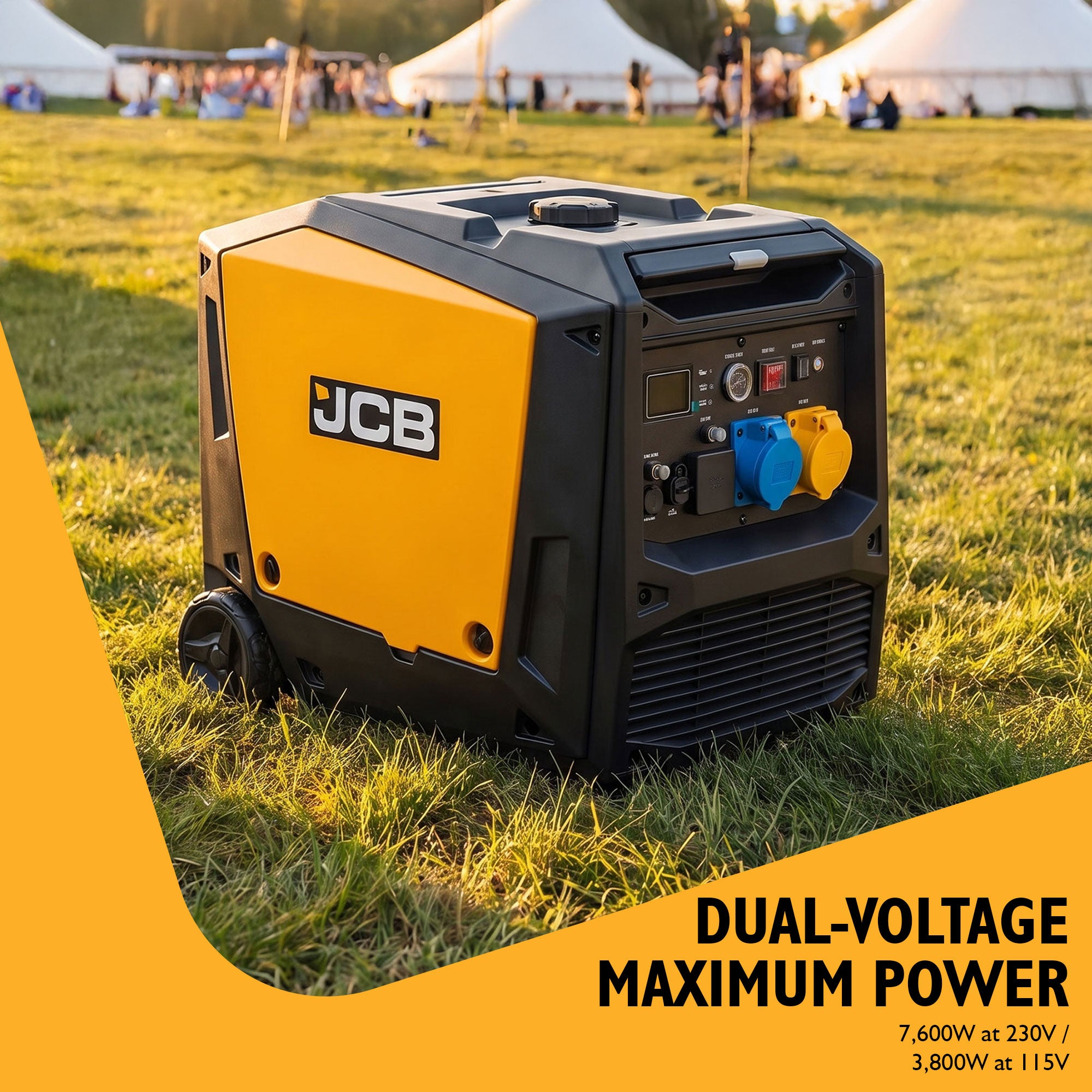

Dual-Voltage Output for Compatible Equipment
At 230V, the JCB-IG8500DVE provides 7600W maximum and 7200W continuous output. At 115V, it provides 3800W maximum and 3600W continuous output for compatible 110V/115V equipment, with the exact socket arrangement shown in the Specifications.
Pure Sine Wave Power with THD ≤3%
The inverter produces pure sine wave power with total harmonic distortion of 3% or less. This supports compatible lighting, event equipment and electronics that require a stable electrical supply.

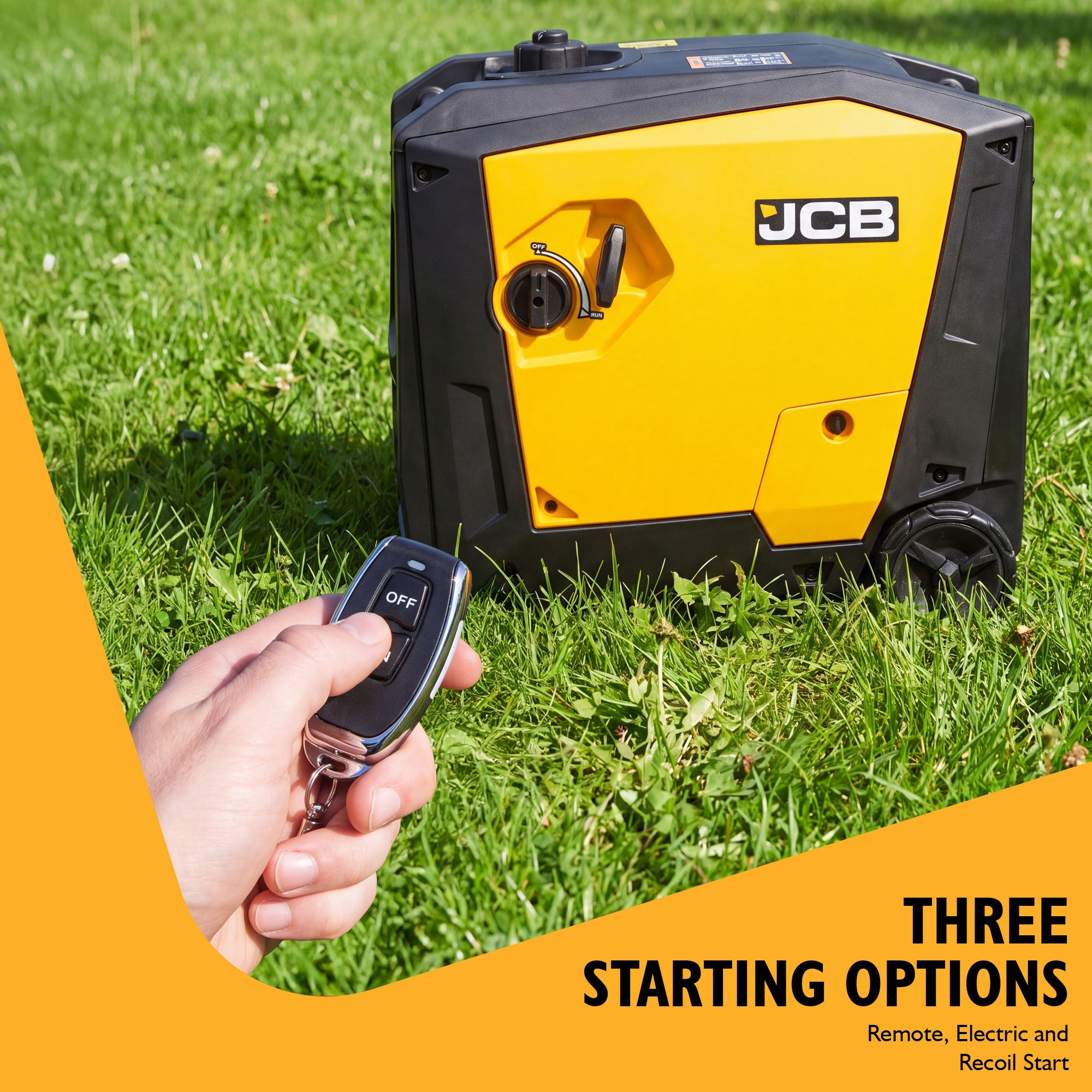

Remote Start and Wheeled Mobility

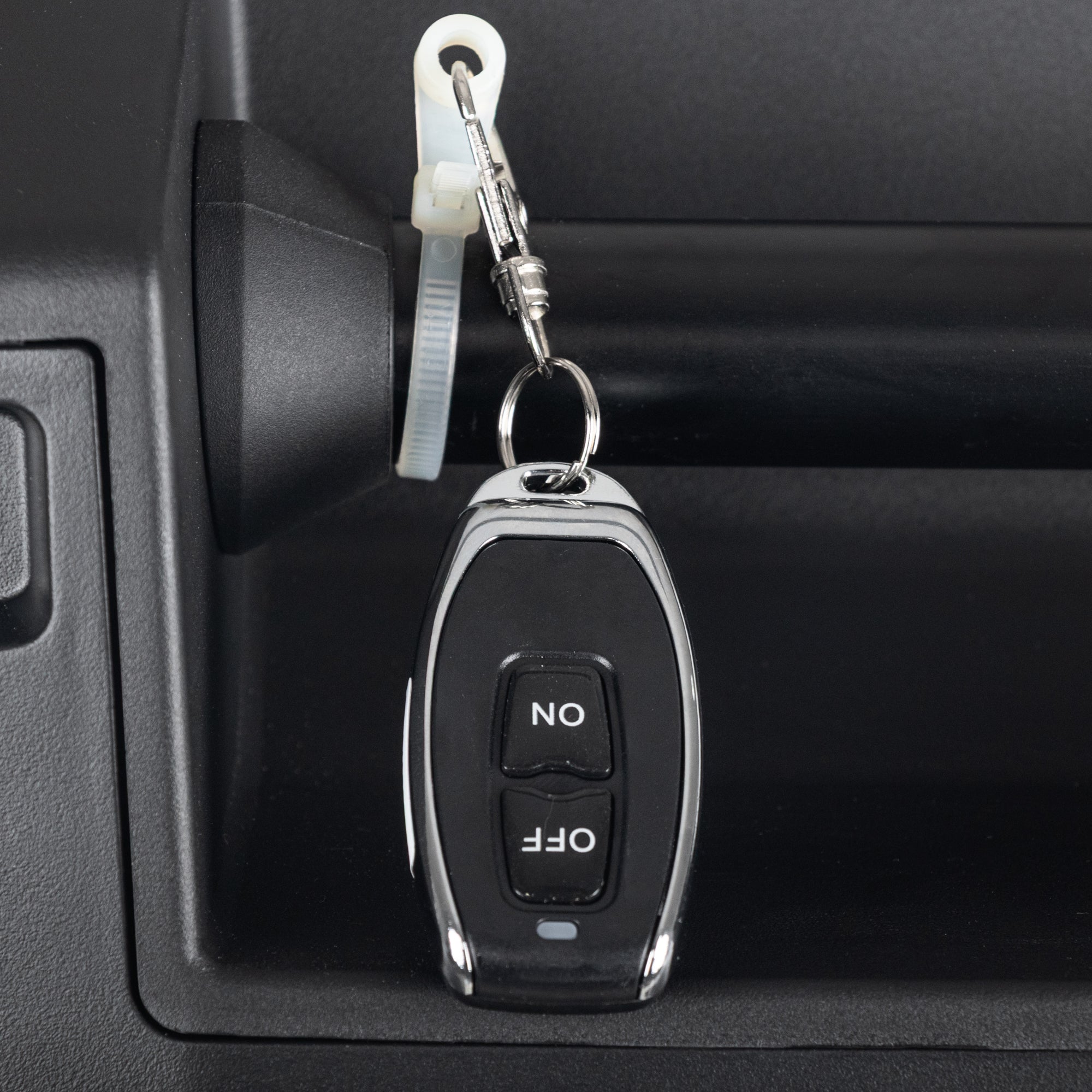

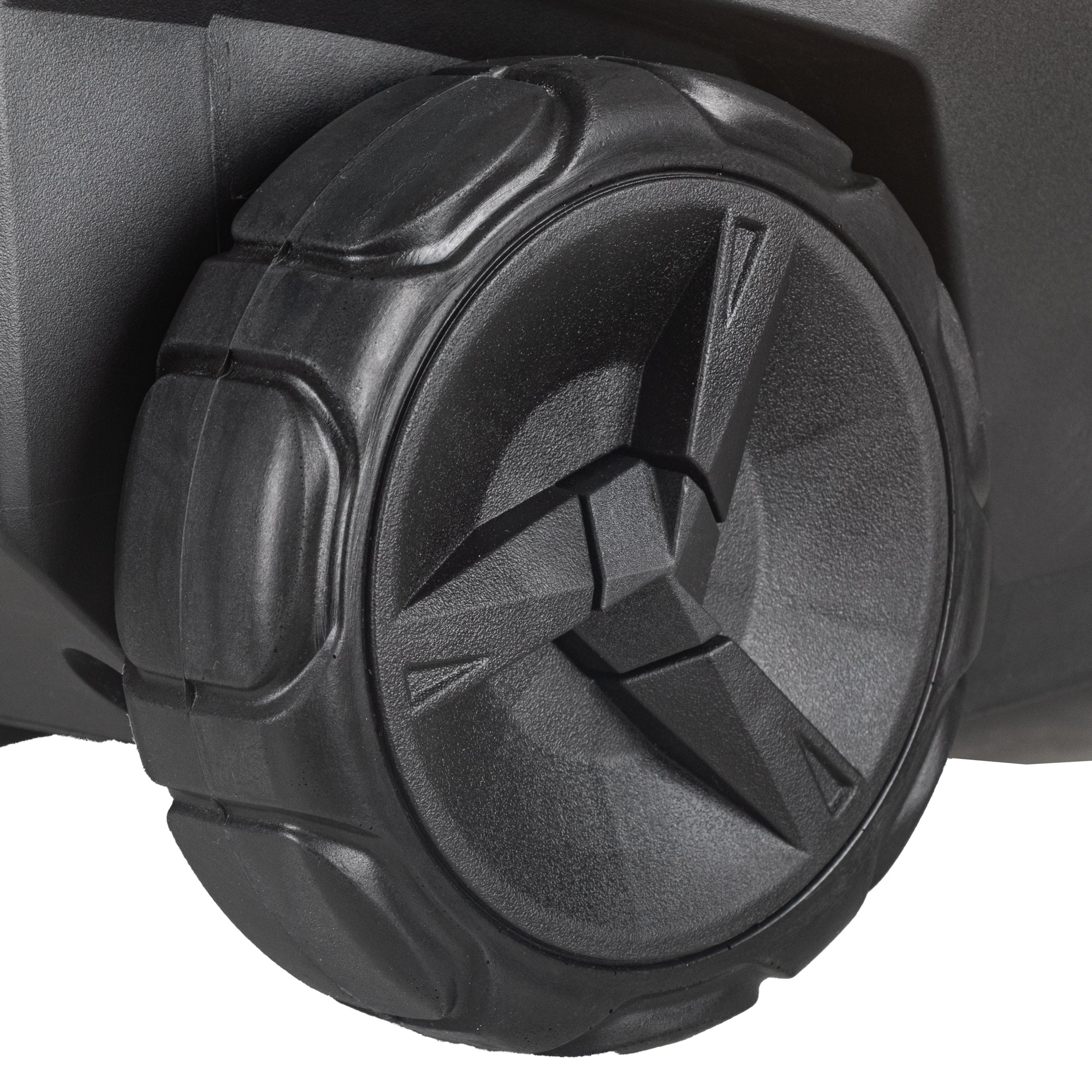

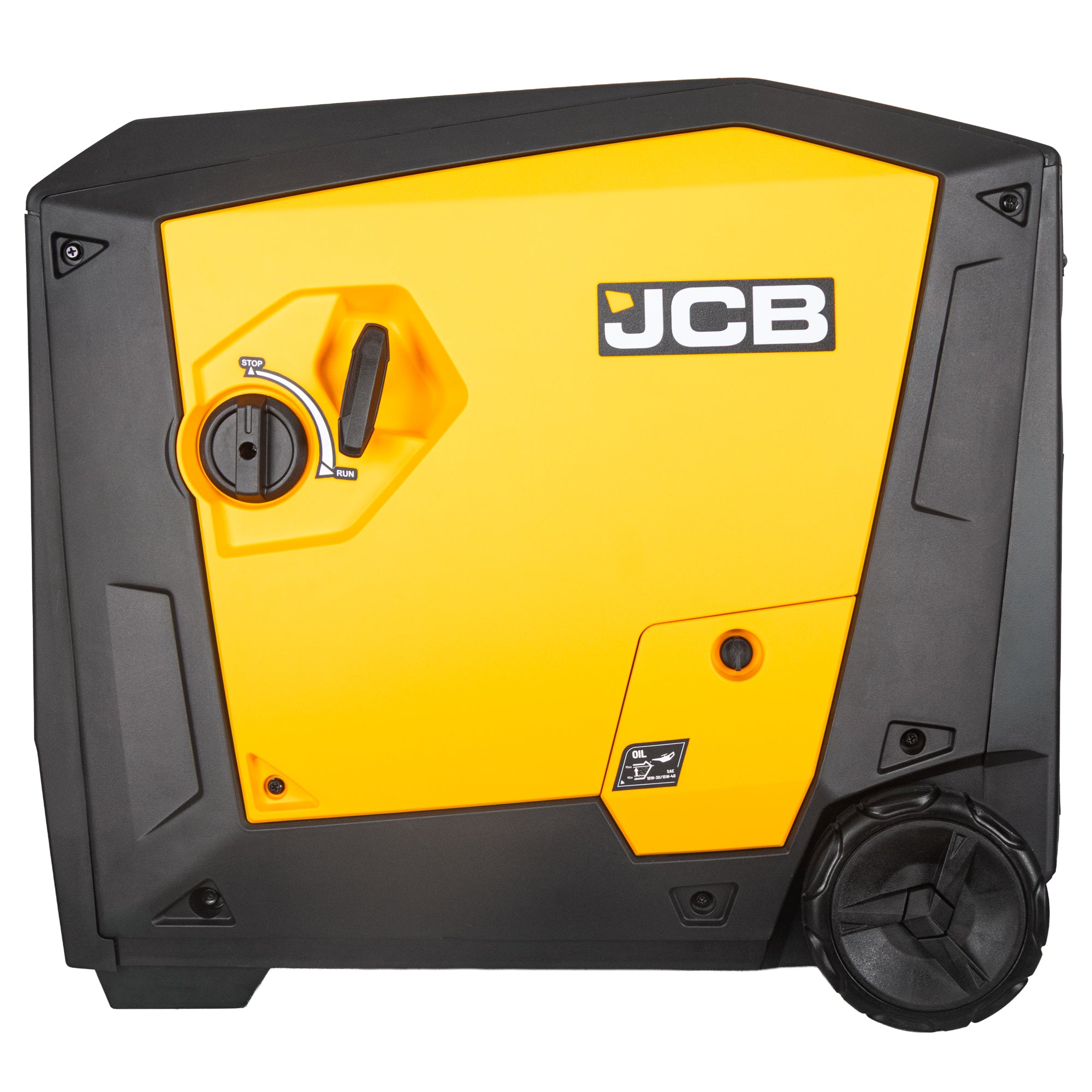

The factory-paired remote key provides start and stop control from a distance, alongside electric start and recoil backup. Pre-fitted rear wheels and the telescopic handle support movement of the 56kg generator across a firm surface.
Carbon Monoxide Warning
Use this generator outdoors only, well away from doors, windows and vents. Never run it inside or in a partly enclosed space, including a house, garage, shed, tent, caravan, motorhome, large vehicle or site cabin, even with doors or windows open. Fit a separate, working battery-powered carbon monoxide alarm inside any nearby enclosed occupied space as an additional safeguard. An alarm does not make indoor or enclosed use safe.
Support, Warranty and Range
UK-based service and parts support is available. Warranty cover varies by use, with up to 3 years/1,000 hours for residential use, 1 year for commercial use and 90 days for hire; inverter/circuit boards carry 2 years. Check the full warranty terms and compare other models in the JCB Tools generator range.
Specifications
| Model | JCB-IG8500DVE |
| Maximum output | 7600W at 230V; 3800W at 115V |
| Continuous/rated output | 7200W at 230V; 3600W at 115V |
| Supply | 115V / 230V, 50Hz, single phase |
| Rated current | 31.3A |

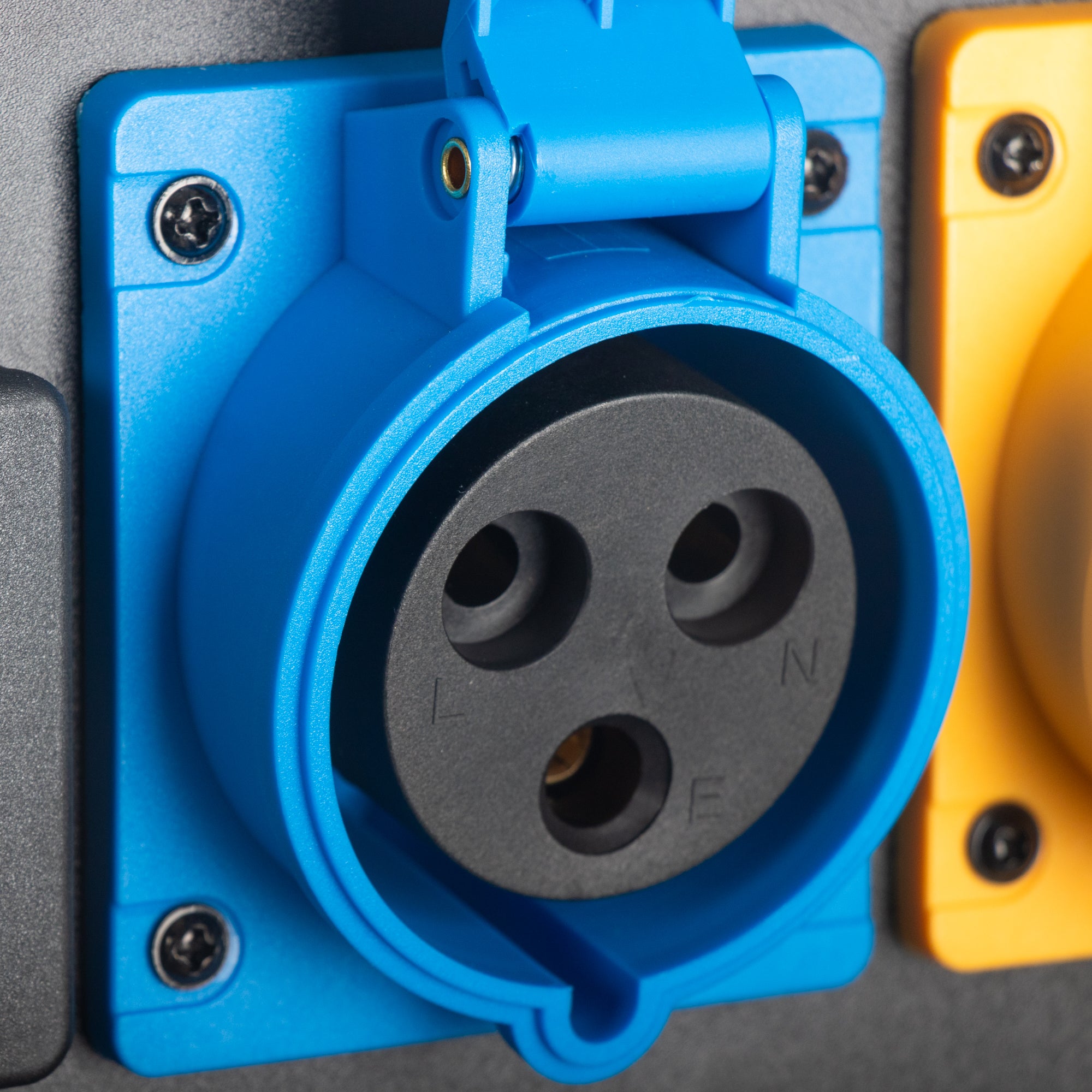

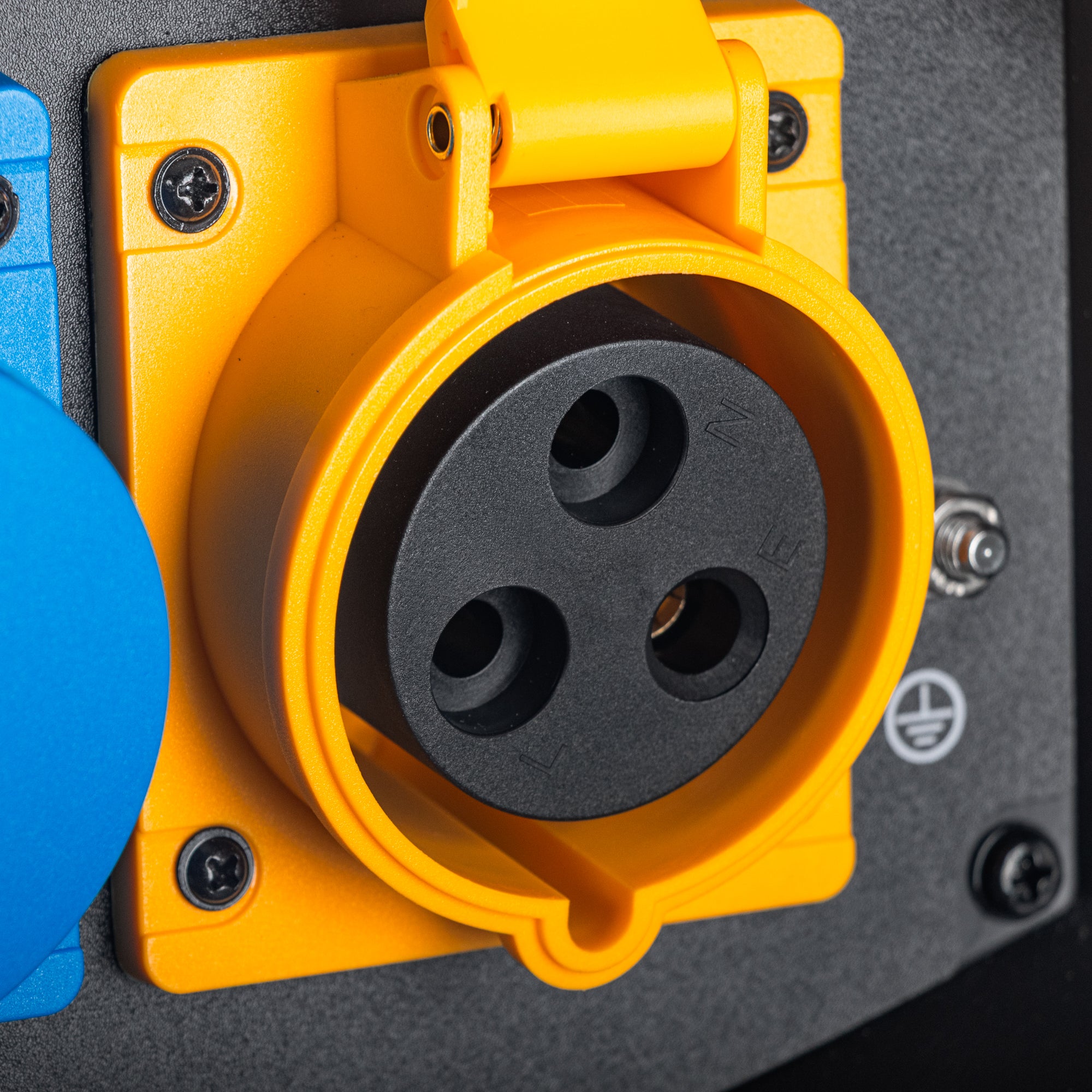

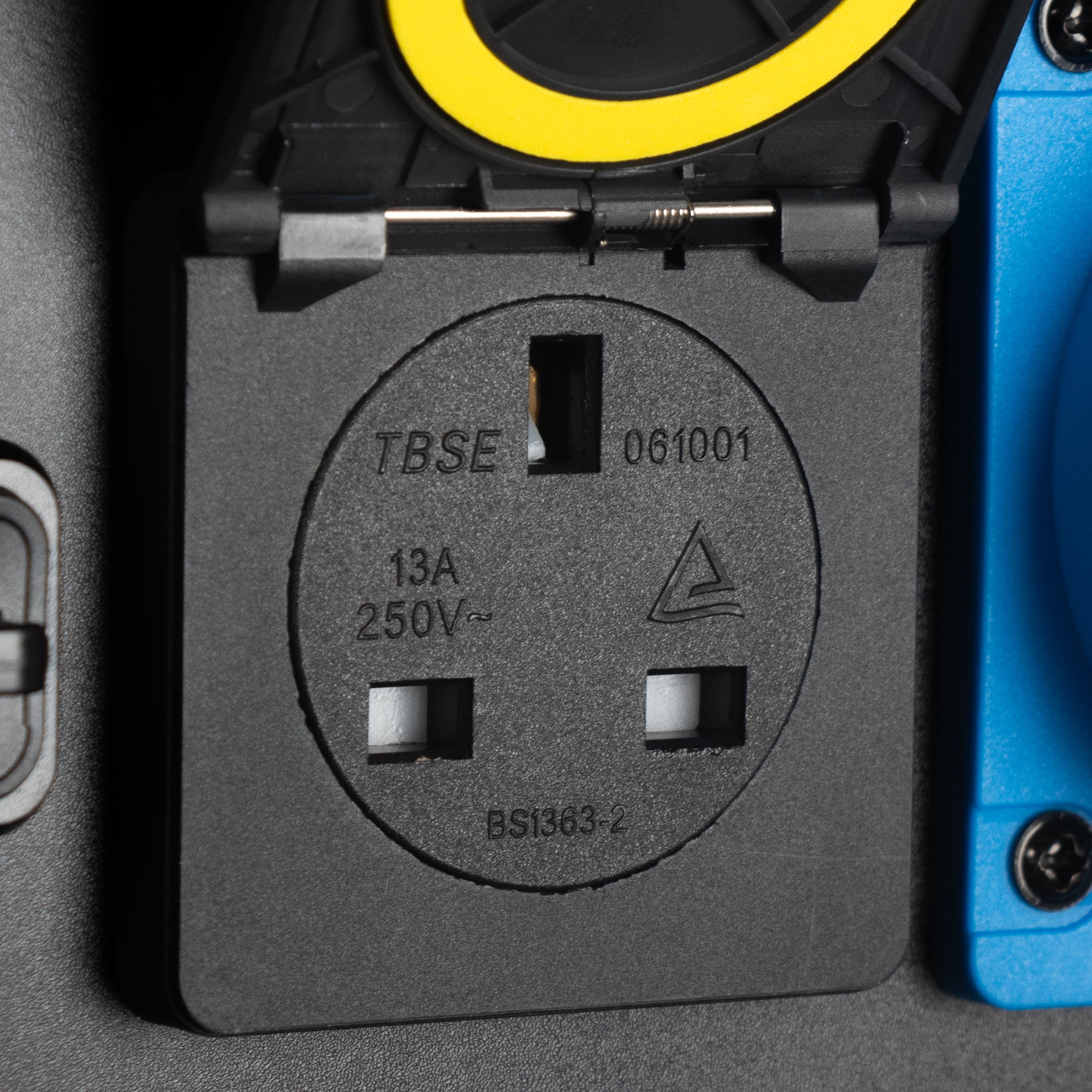

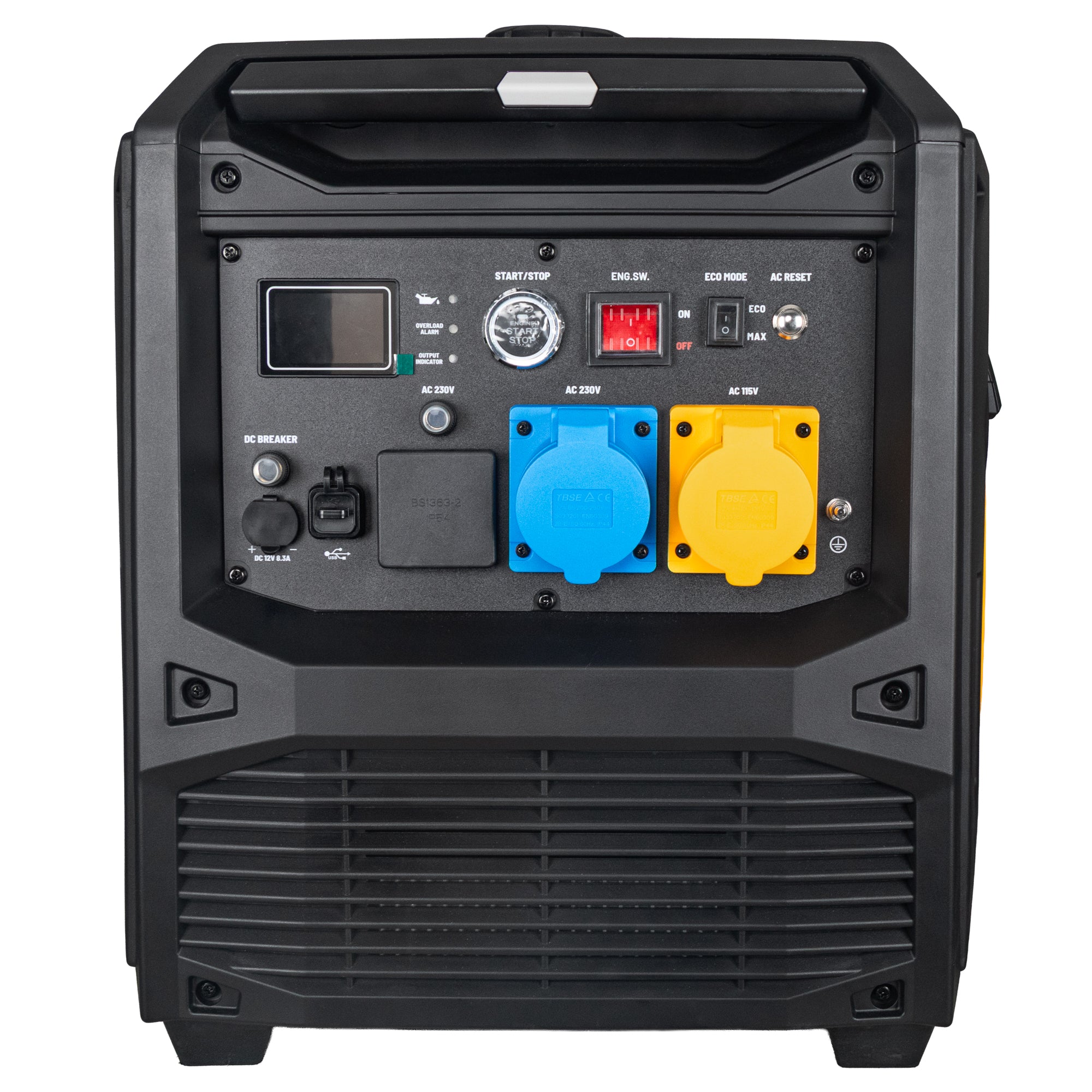

| AC sockets | 1 x 230V 13A BS; 1 x 230V 32A blue; 1 x 115V 32A yellow |
| Output type | Clean pure sine wave inverter, THD ≤3% |
| Start | Factory-paired remote key-fob, electric start and recoil backup |
| Engine | 351.8cc single-cylinder, 4-stroke OHV petrol |
| Engine speed | 4200rpm |

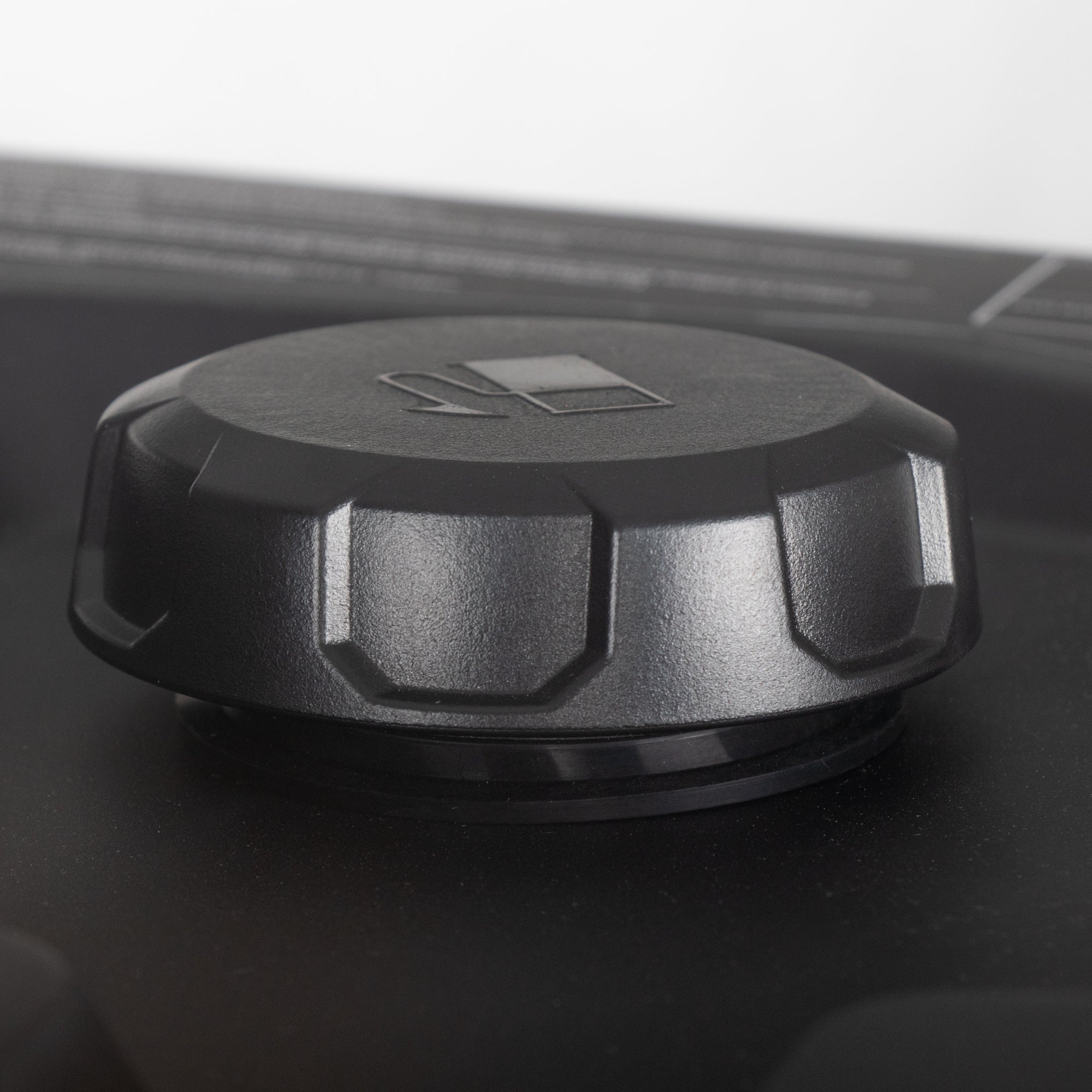

| Fuel | Unleaded petrol; 16L tank; 0.51L/h at 10% load (calculated) |
| Rated-output runtime | 4h at 100% load on a full 16L tank |
| Engine oil | 0.8L; SAE 10W-30 |
| DC and USB outputs | 12V/8A, USB and USB-C |
| Noise | 63 dB(A) at 10% load / 65 dB(A) at 25% load, both from 7m; LWA: 97 dB(A) |
| Dimensions (L x W x H) | 640 x 500 x 565mm |
| Net weight and mobility | 56kg; rear wheels and telescopic handle |
| Controls/display | Eco mode; voltage, current, frequency, power, load %, fuel level and total/session runtime; output, overload and low-oil indicators; overload protection and low-oil shut-off |
| Package Dimensions (H x W x L) (mm) | 700 × 565 × 720 mm |
What's in the Box
- JCB-IG8500DVE inverter generator
- Pre-fitted wheel kit
- Pre-fitted lithium-ion starter battery
- Factory-paired remote key
- Spark plug socket
- Funnel
- Screwdriver
- DC power cable
- Instruction manual
