Product Details
Description

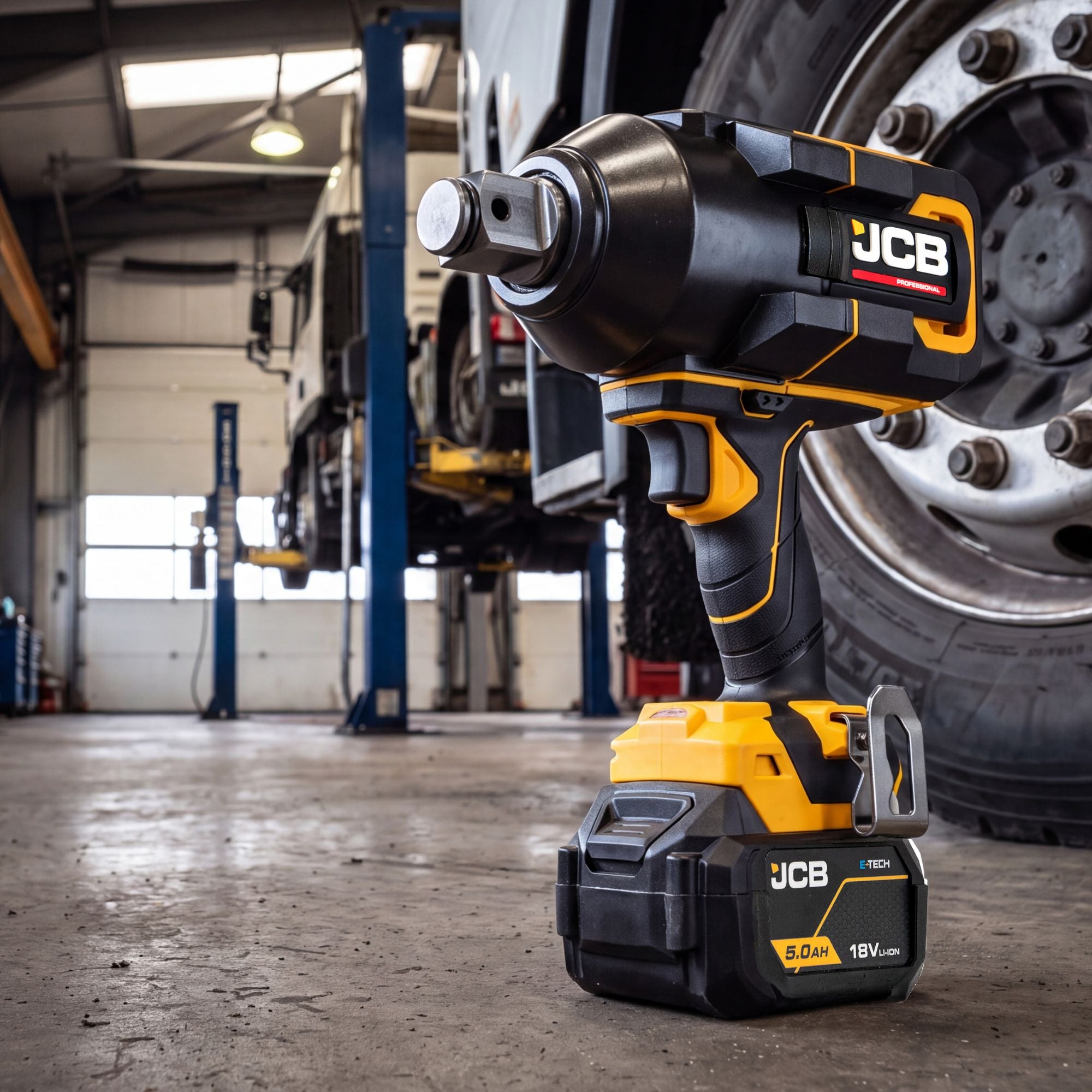

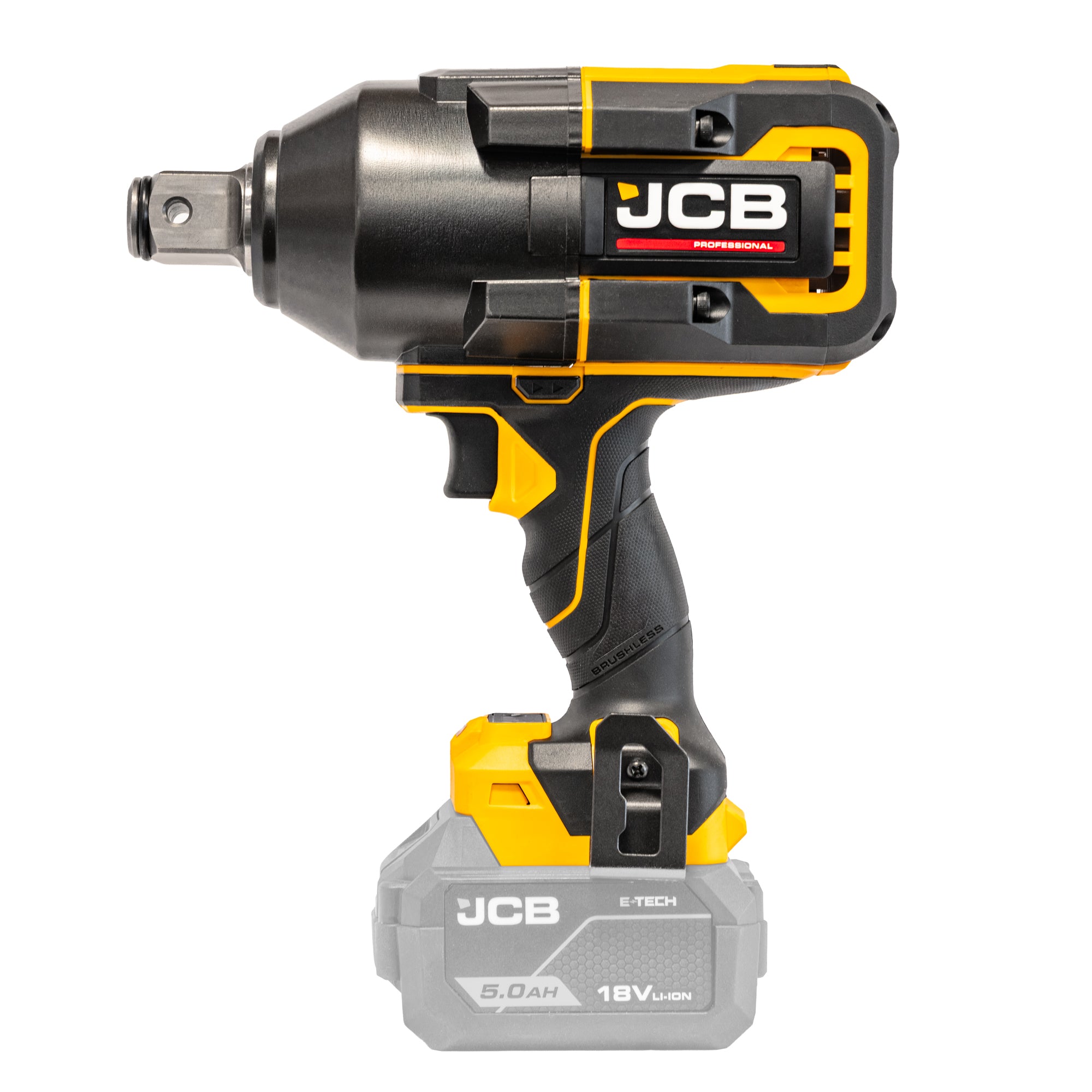

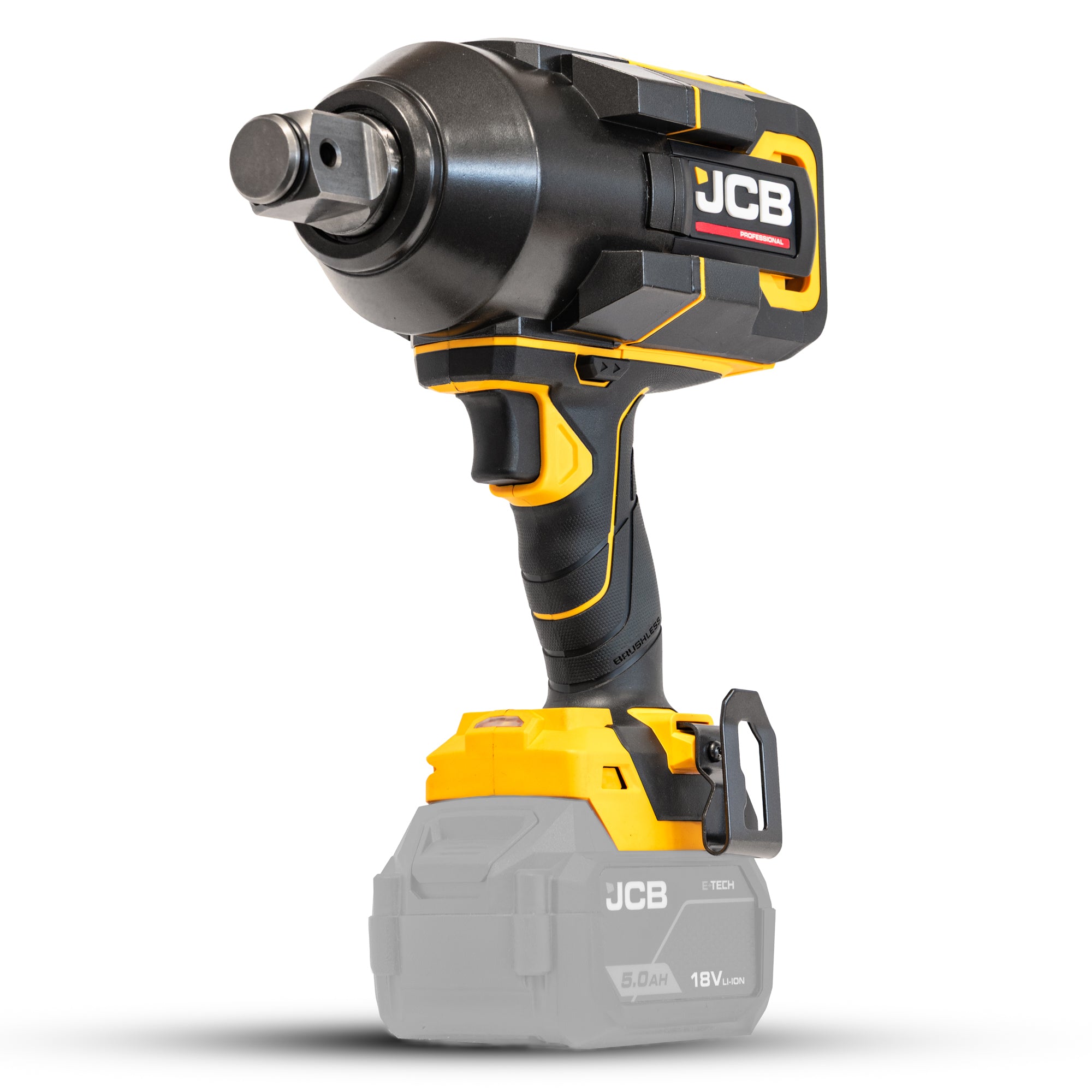

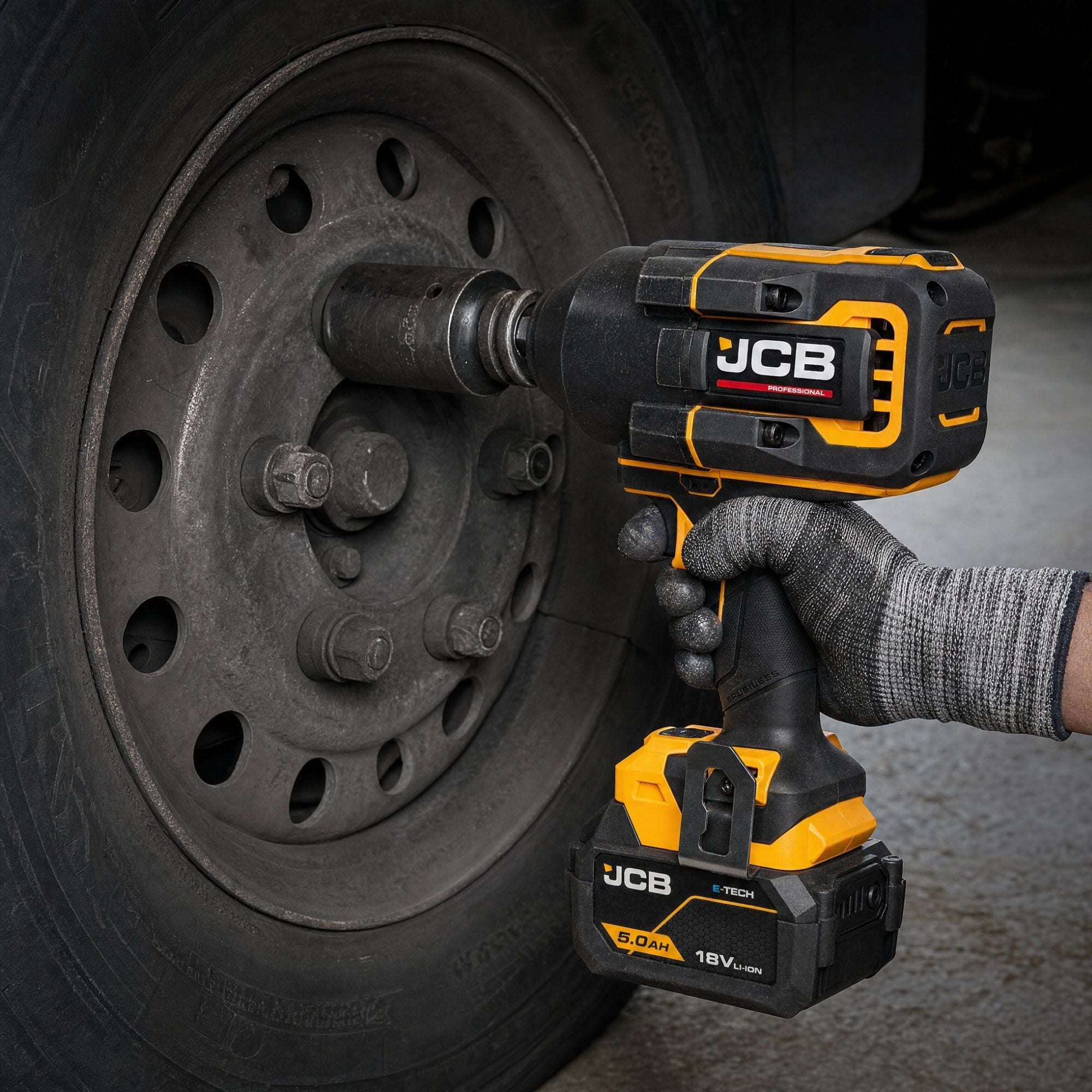

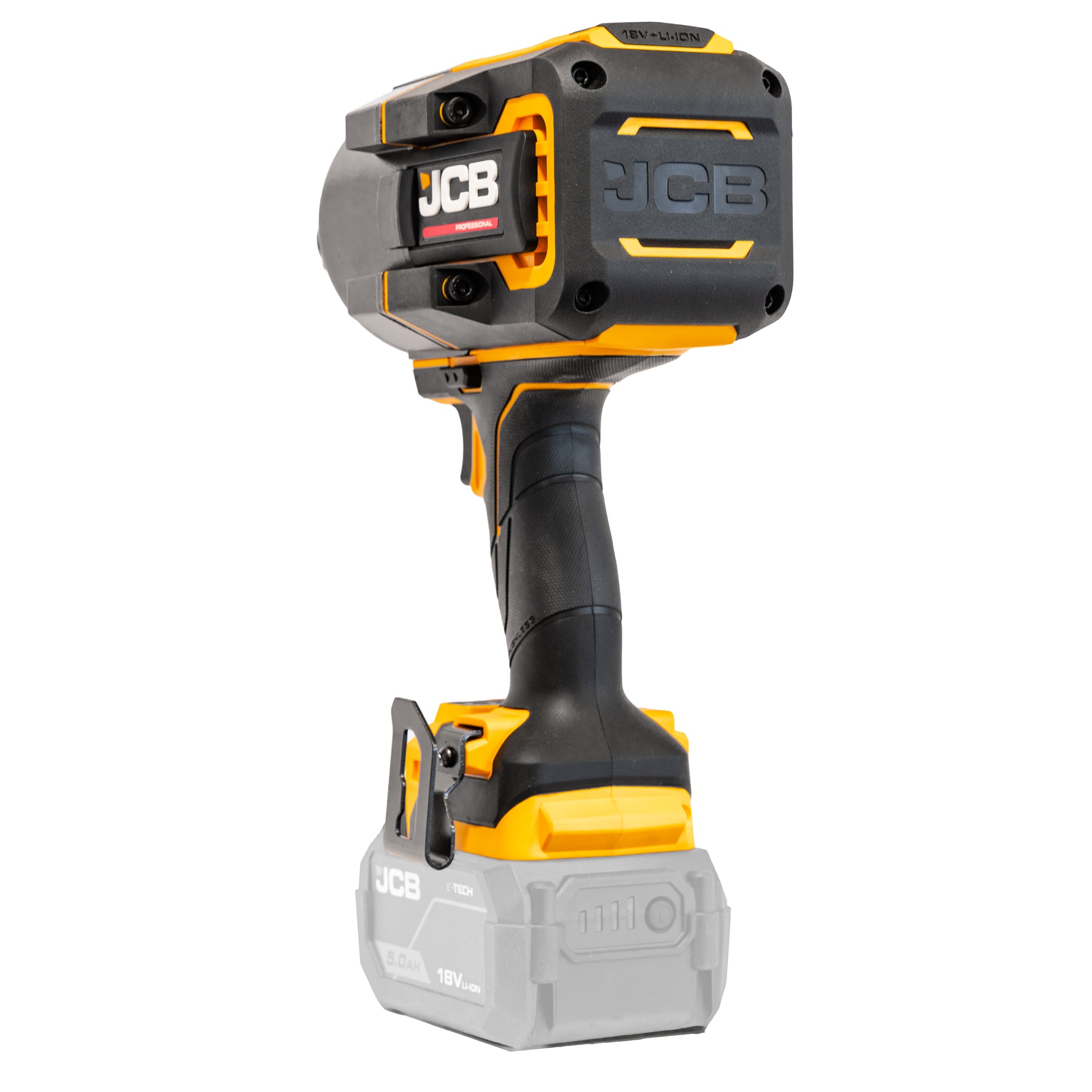

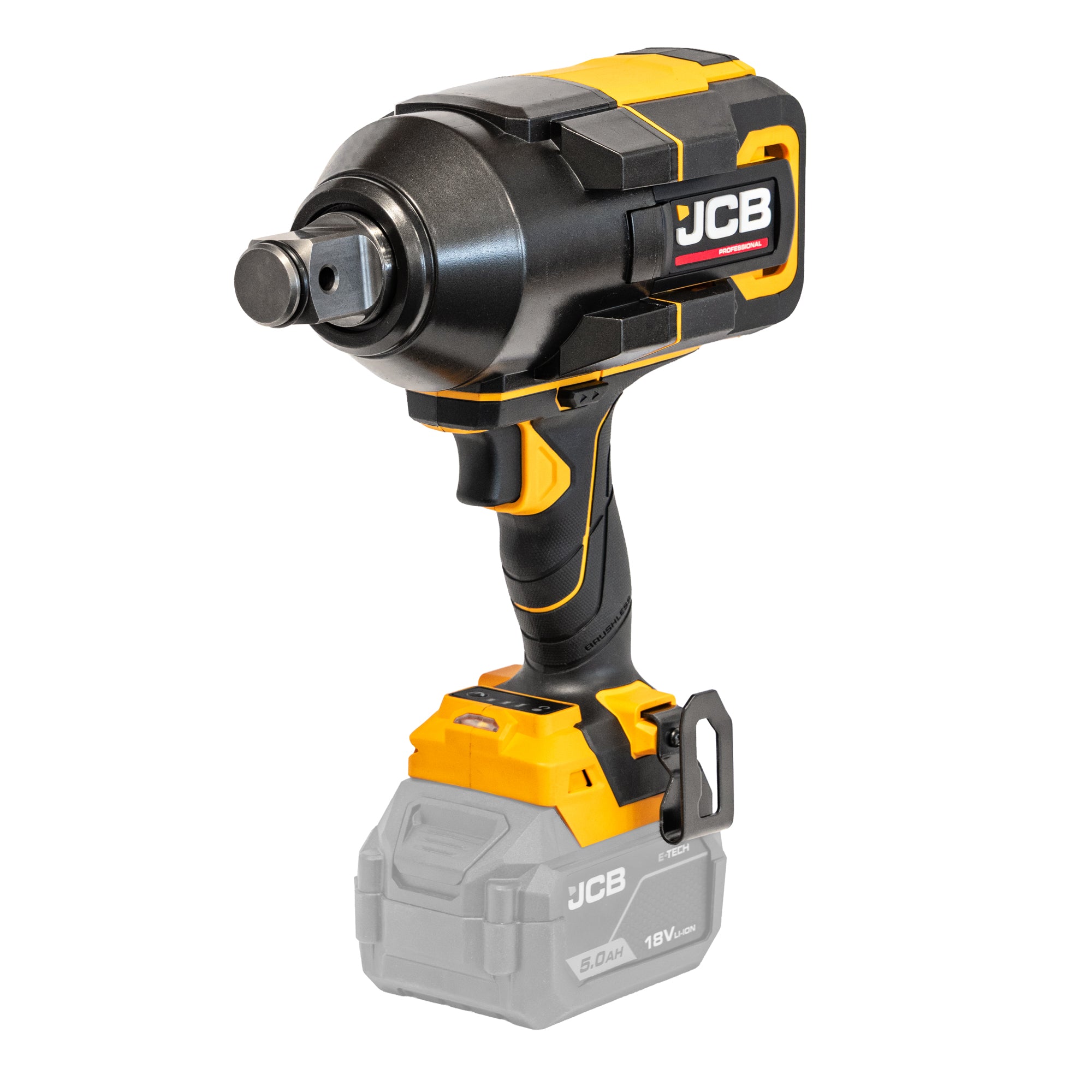

The JCB Professional 18V 1" Impact Wrench delivers three fastening settings up to 2,100Nm and up to 2,300Nm breakaway torque for heavy vehicle, plant, agricultural and industrial maintenance. Its brushless motor, 1" square drive with friction ring, variable-speed control and dust-protected PCB provide high-torque cordless performance on the JCB 18V battery platform. Breakaway mode automatically stops when it detects that a nut has loosened; press the trigger again to continue removal.
In The Box
- 1 x JCB Professional 18V 1" Impact Wrench

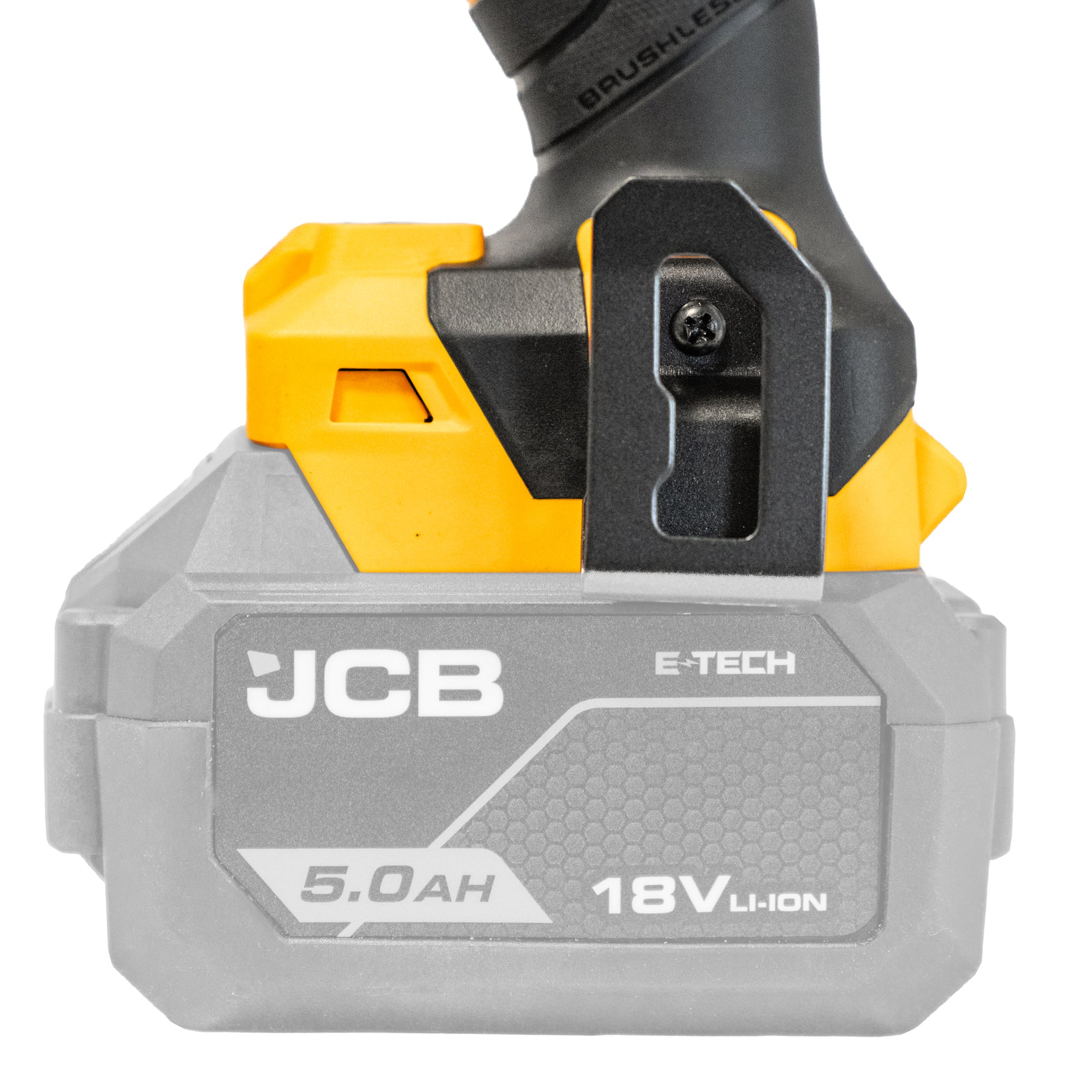

- 1 x Belt clip
Important Use Note
Use impact-rated sockets. For critical fixings, verify final tightening torque with a calibrated torque wrench.
Support, Warranty and Range
Supplied as a body-only tool for users already invested in the JCB 18V battery system. JCB Professional power tools carry a 3-year limited warranty from the original purchase date, subject to the current terms. View JCB batteries and chargers or browse the full JCB Professional 18V range.
Specifications
| Model | JCB-18PIW-2300 |
| Net tool weight (without battery) | 4kg |
| Voltage | 18V DC |
| Motor | Brushless |

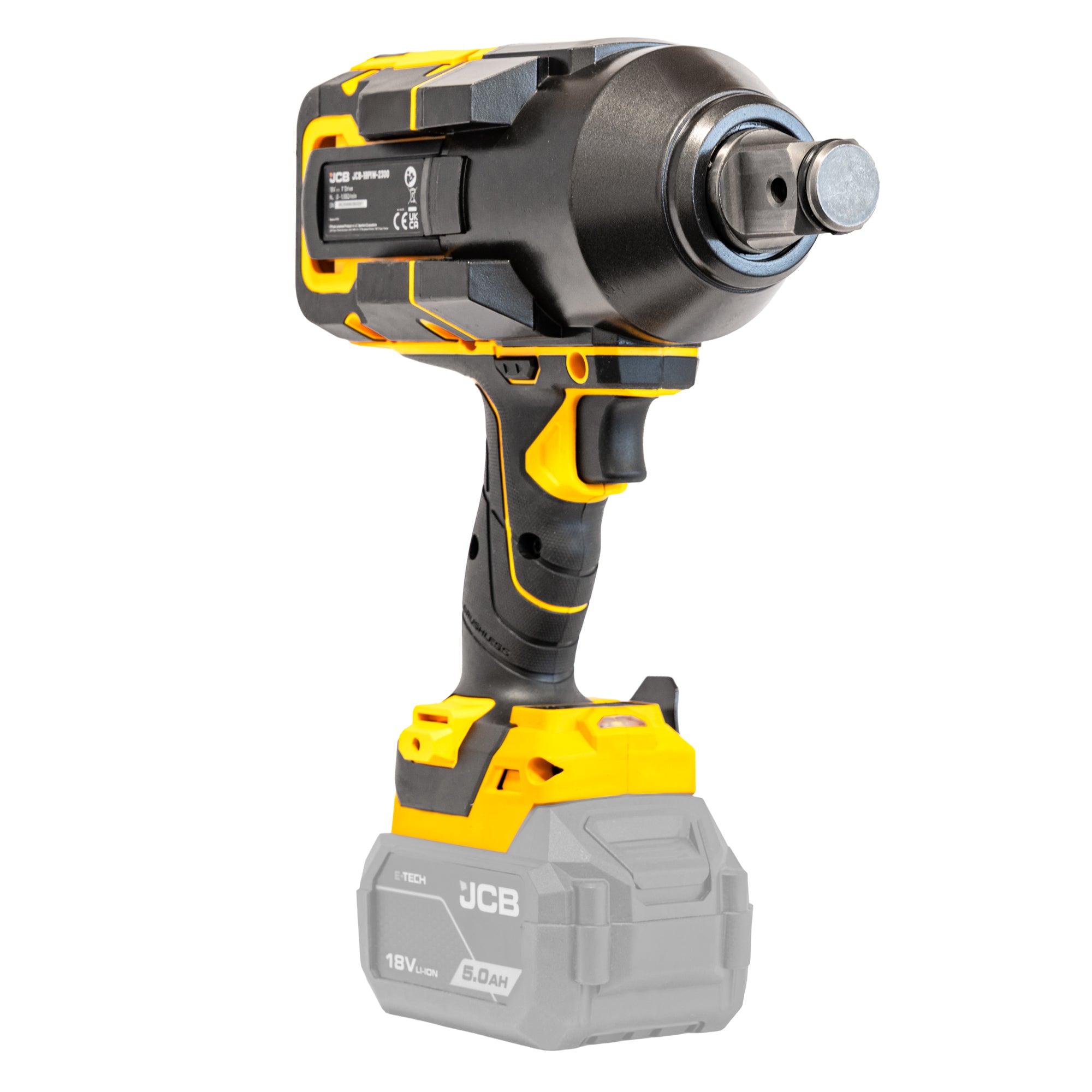

| Drive | 1" square drive with friction ring |

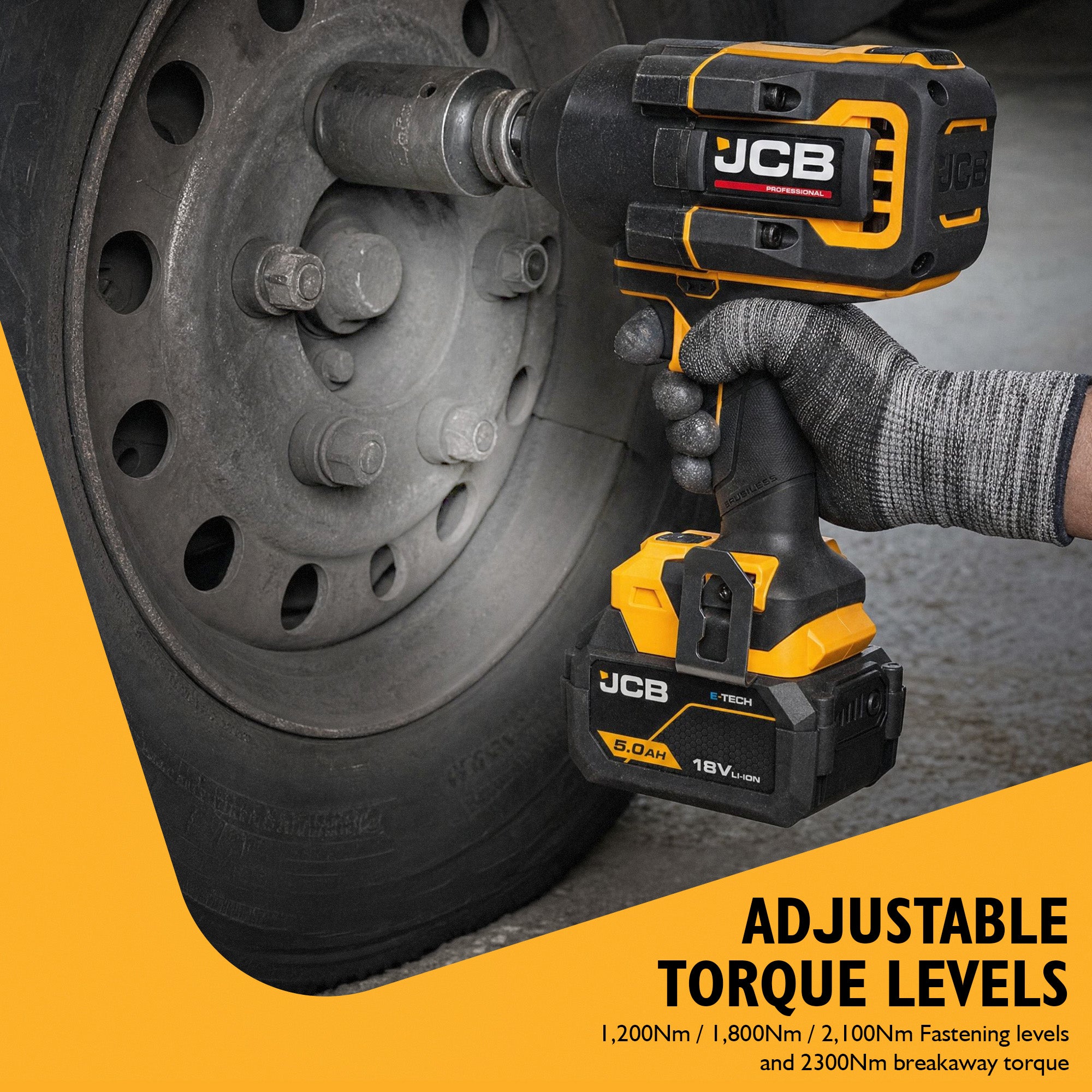

| Fastening torque settings | 1,200 / 1,800 / 2,100Nm |

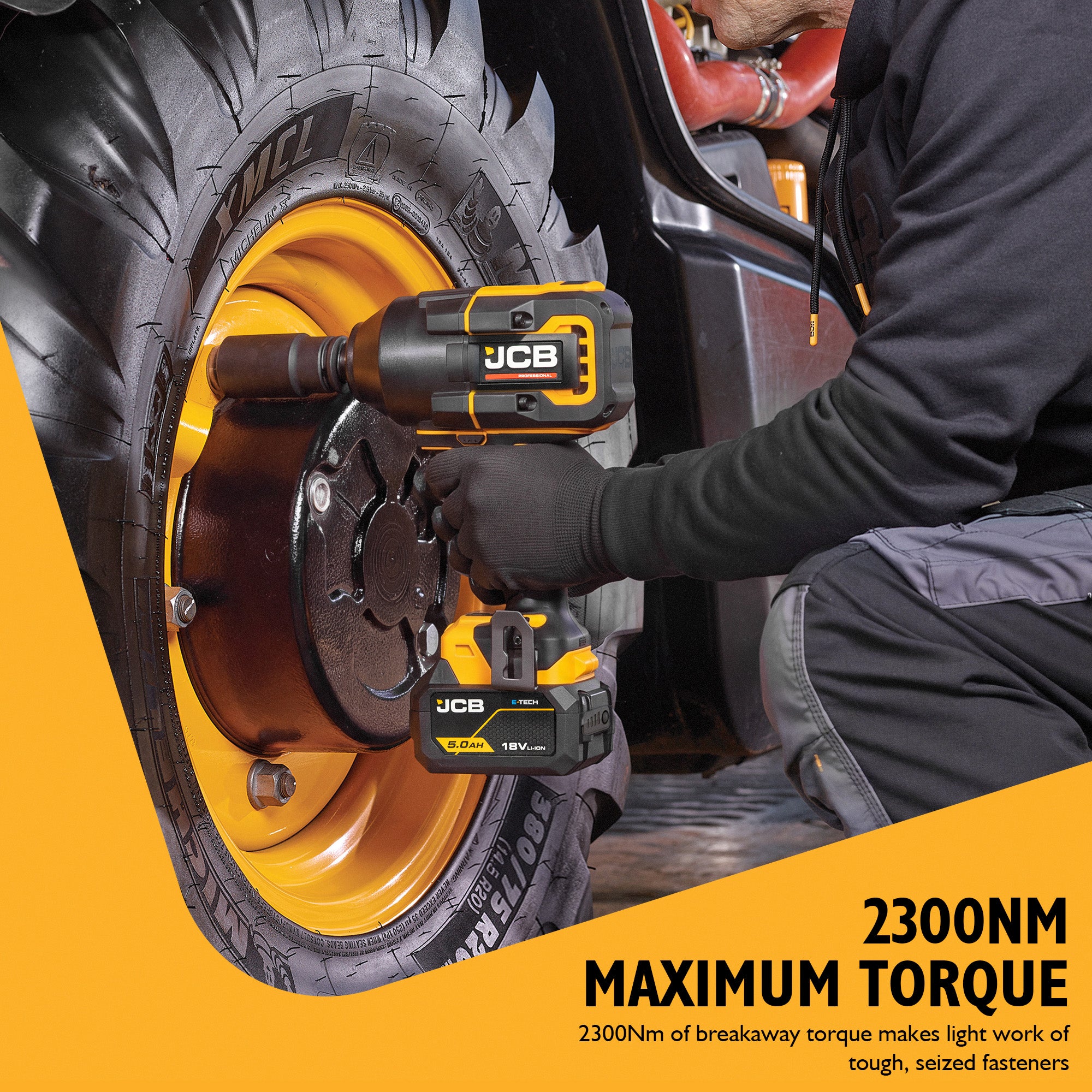

| Maximum breakaway torque | 2,300Nm |
| Operating settings | 3 fastening modes plus Breakaway mode |
| No-load speed | 0–1,150 / 0–1,450 / 0–1,850rpm |
| Impact rate | 0–1,000 / 0–1,800 / 0–2,400bpm |
| Control | Variable speed and forward/reverse |

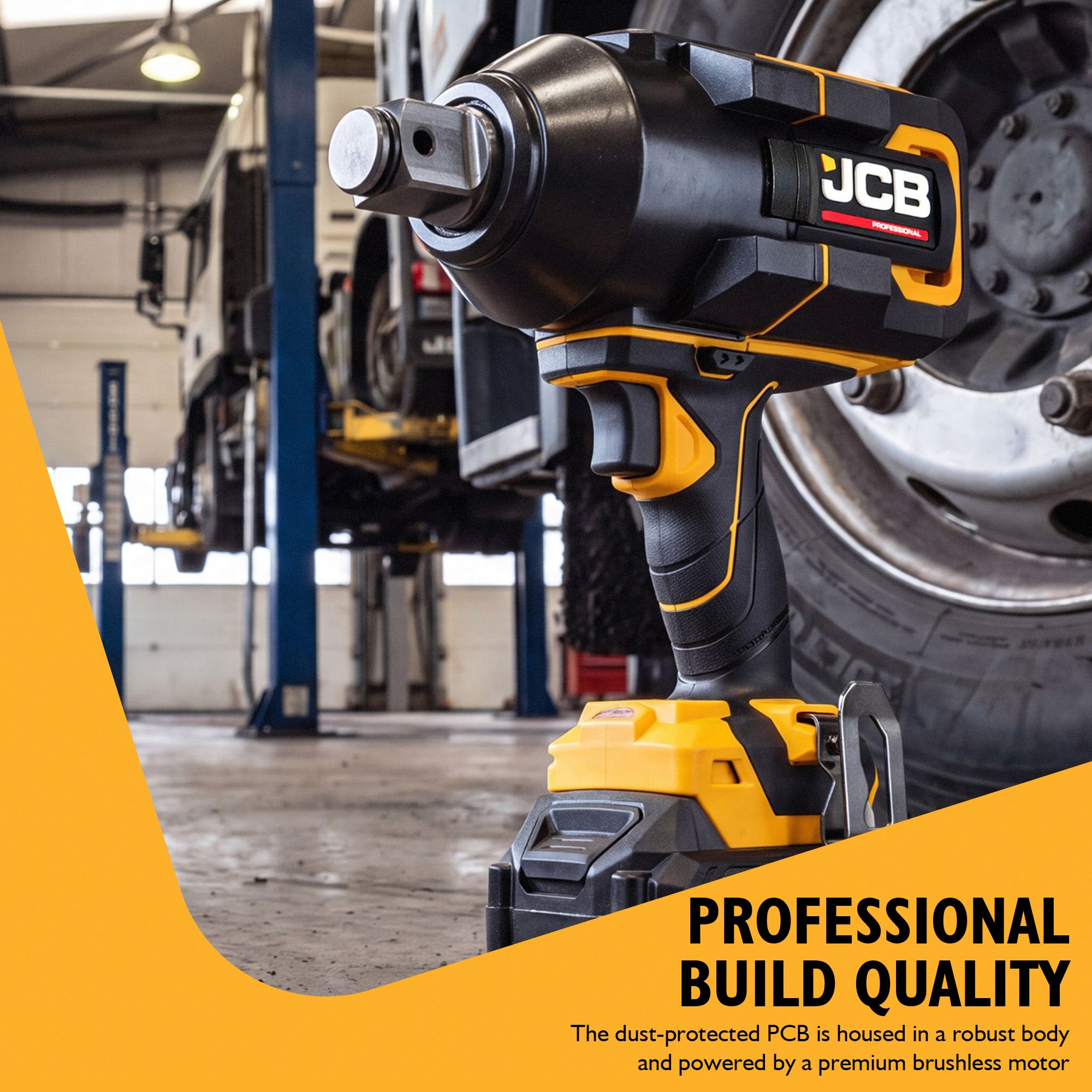

| Electronics | Dust-protected PCB |

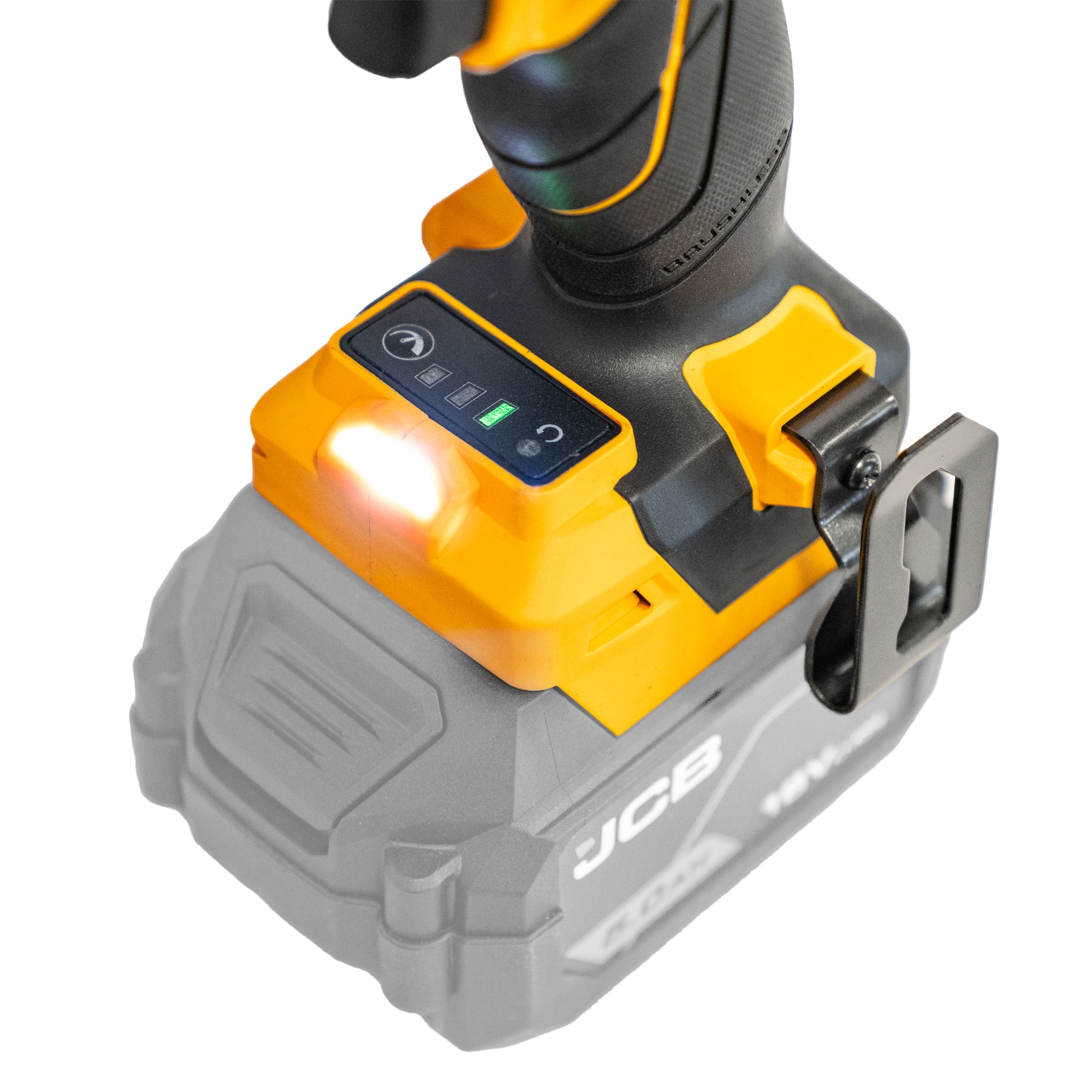

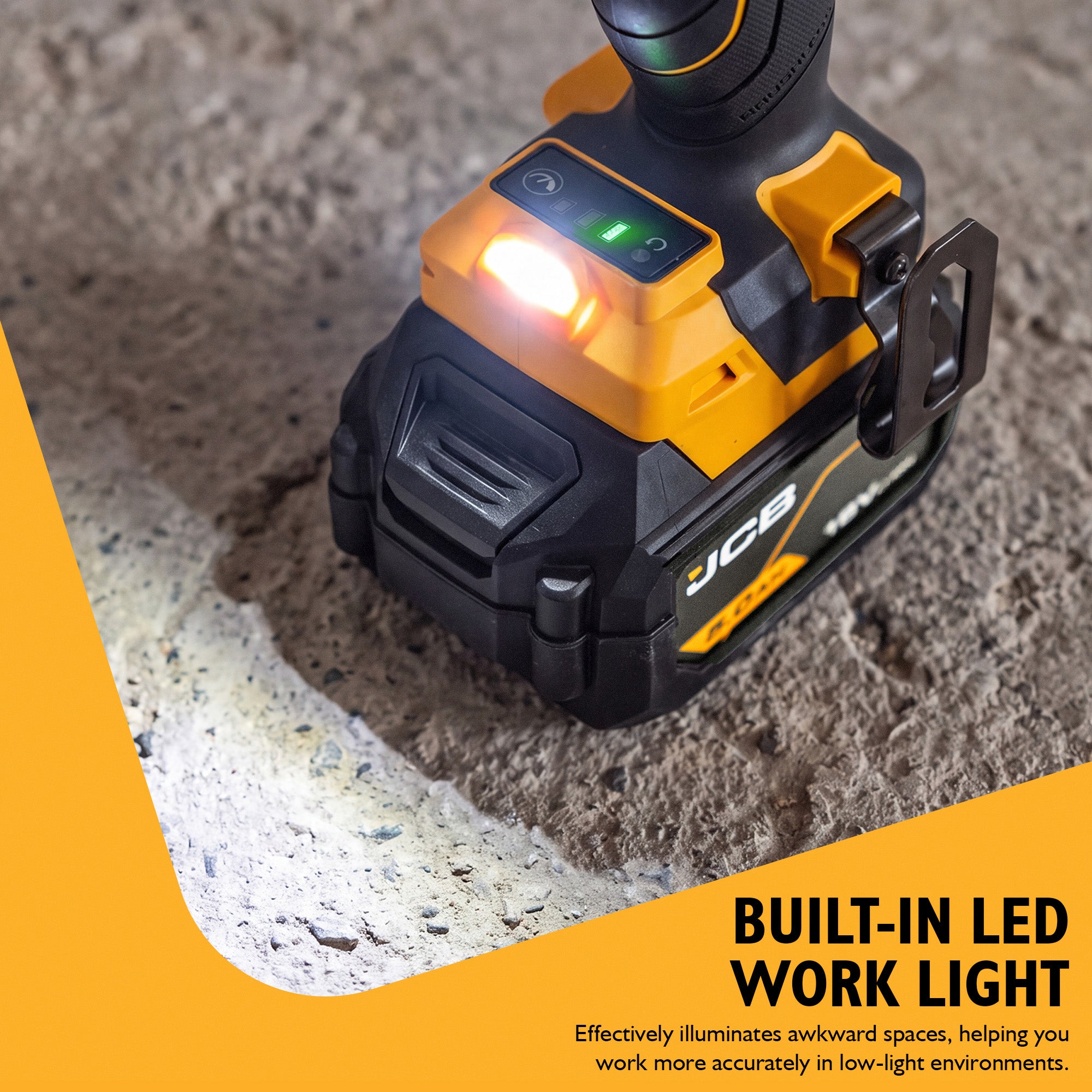

| Work light | Integrated LED |
| Grip | Soft-grip handle |
| Battery type | JCB 18V lithium-ion |
| Supply format | Body only; battery and charger not included |
What's in the Box
- 1 x JCB Professional 18V 1" Impact Wrench
- 1 x Belt clip
