Product Details

Description

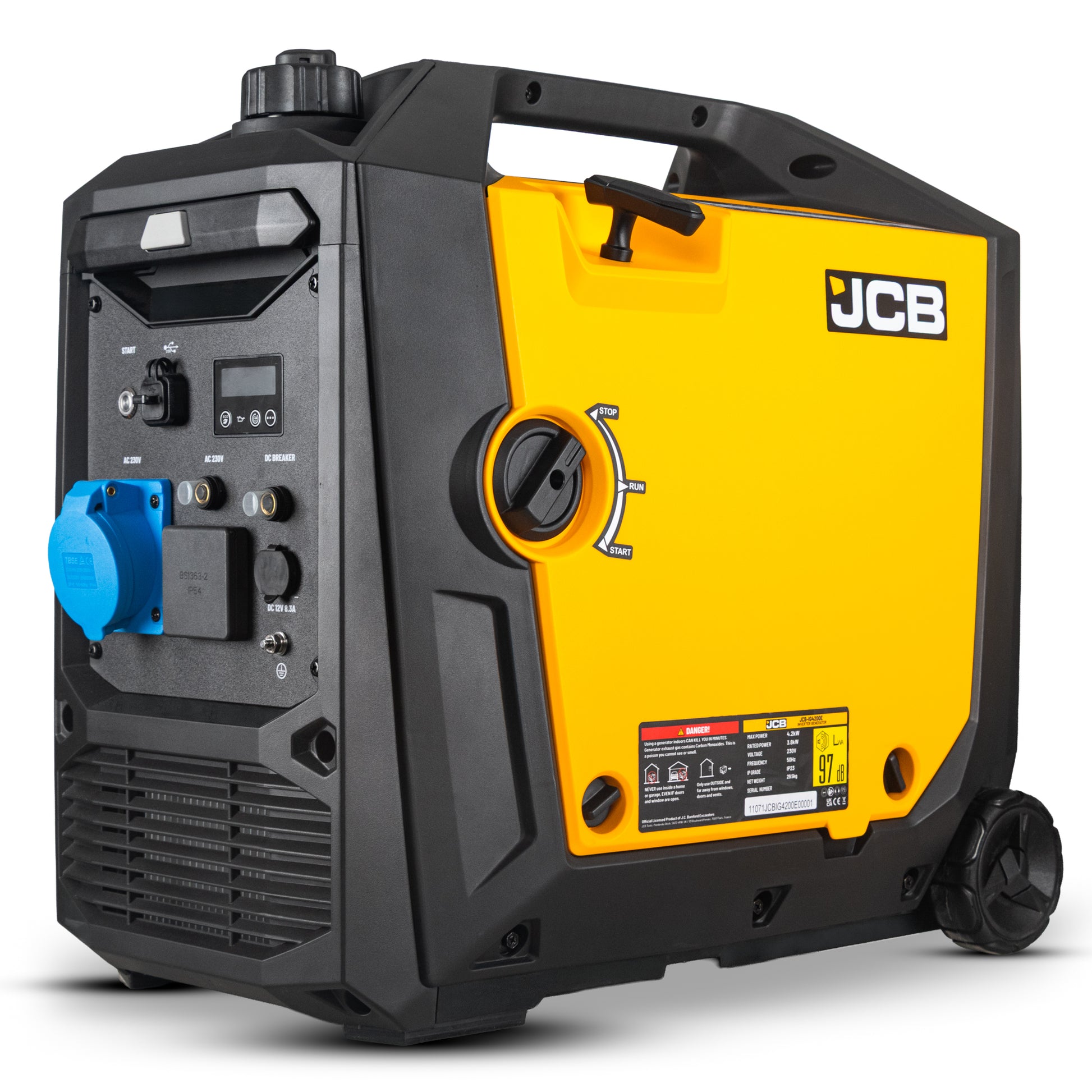

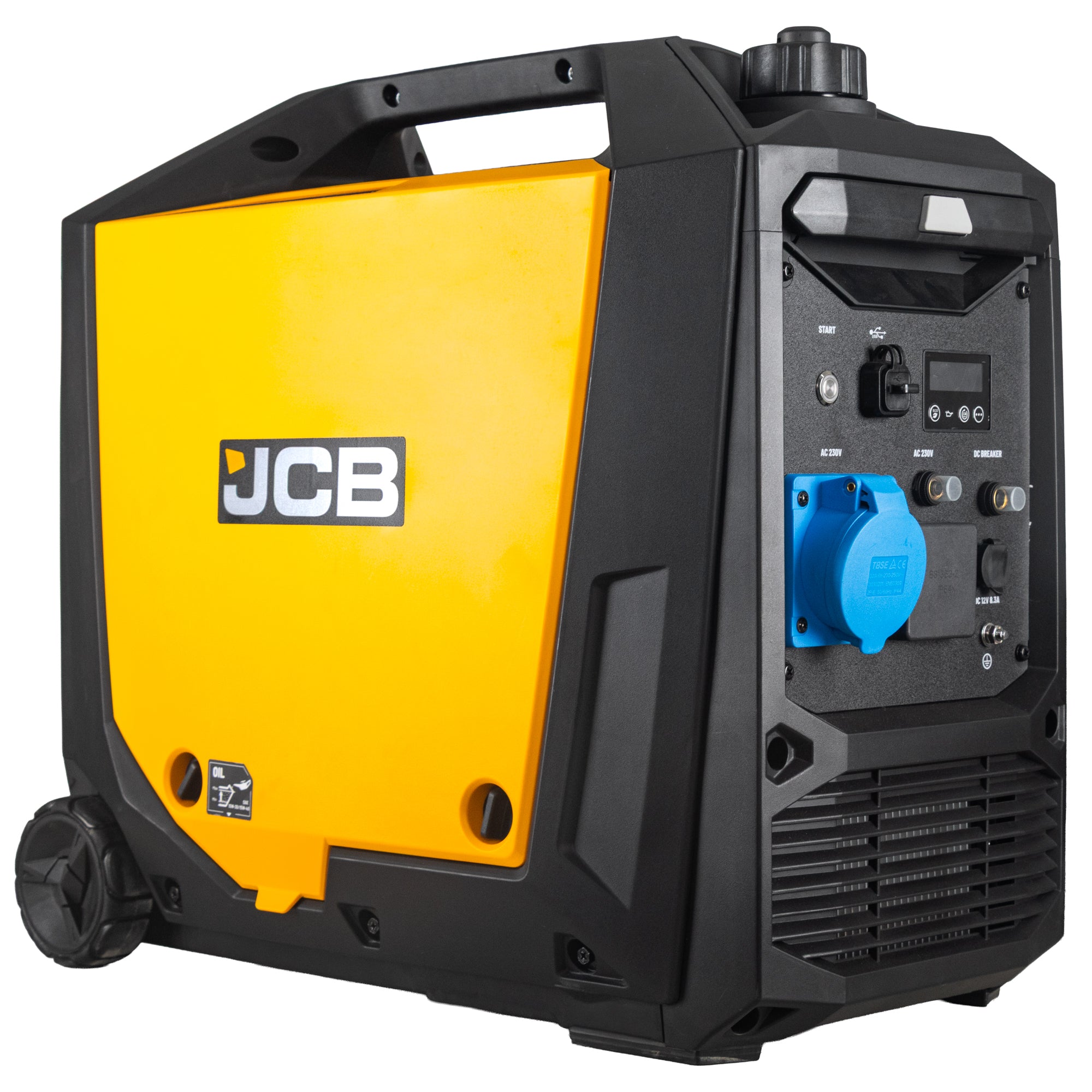

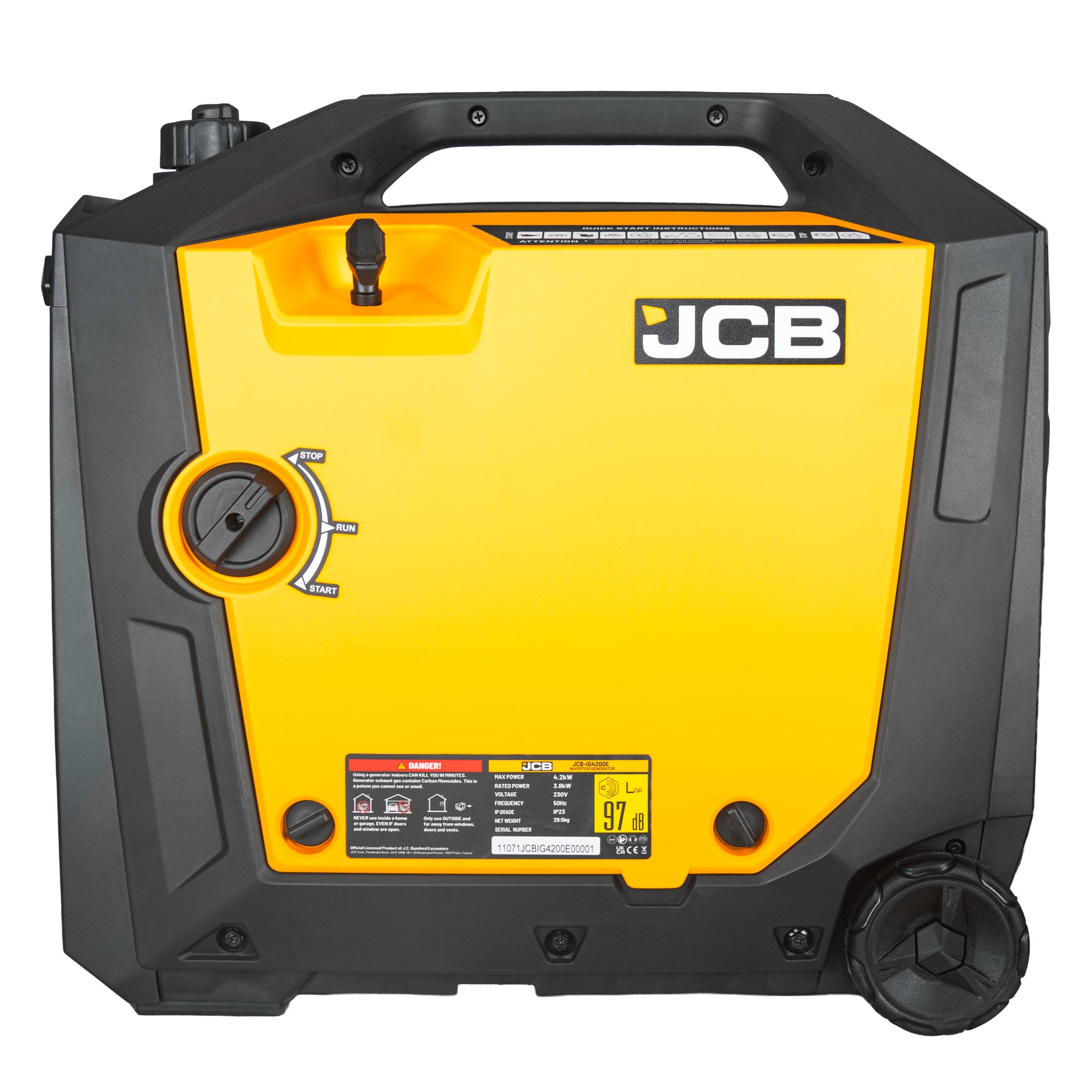

The JCB-IG4200E is a wheeled 230V petrol inverter generator for lighting, events and compatible equipment with sensitive electronics. It supplies 4200W maximum and 3800W continuous pure sine wave output through 13A and 32A sockets. Electric start and a standard wheel kit simplify setup and movement.

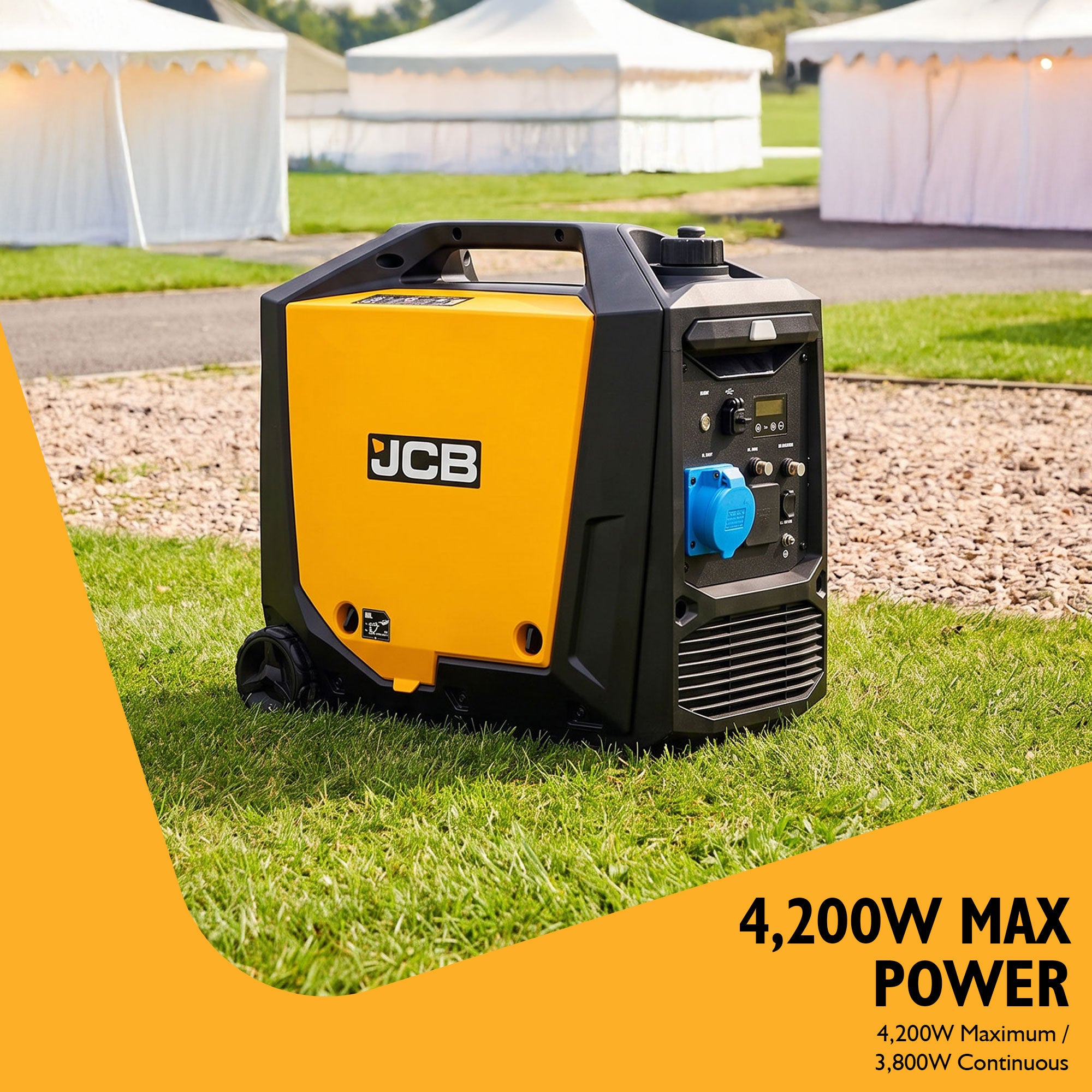

4200W Maximum, 3800W Continuous

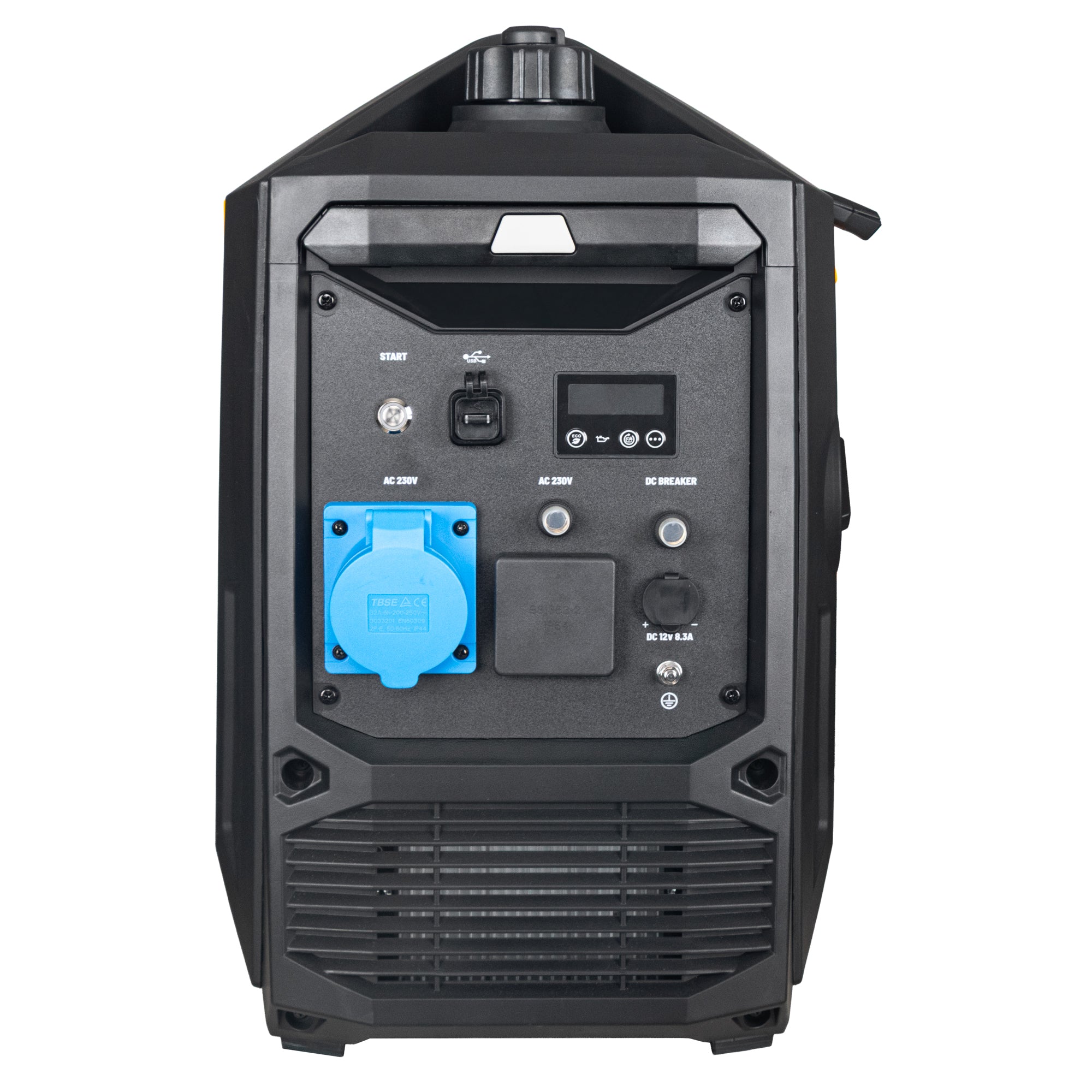

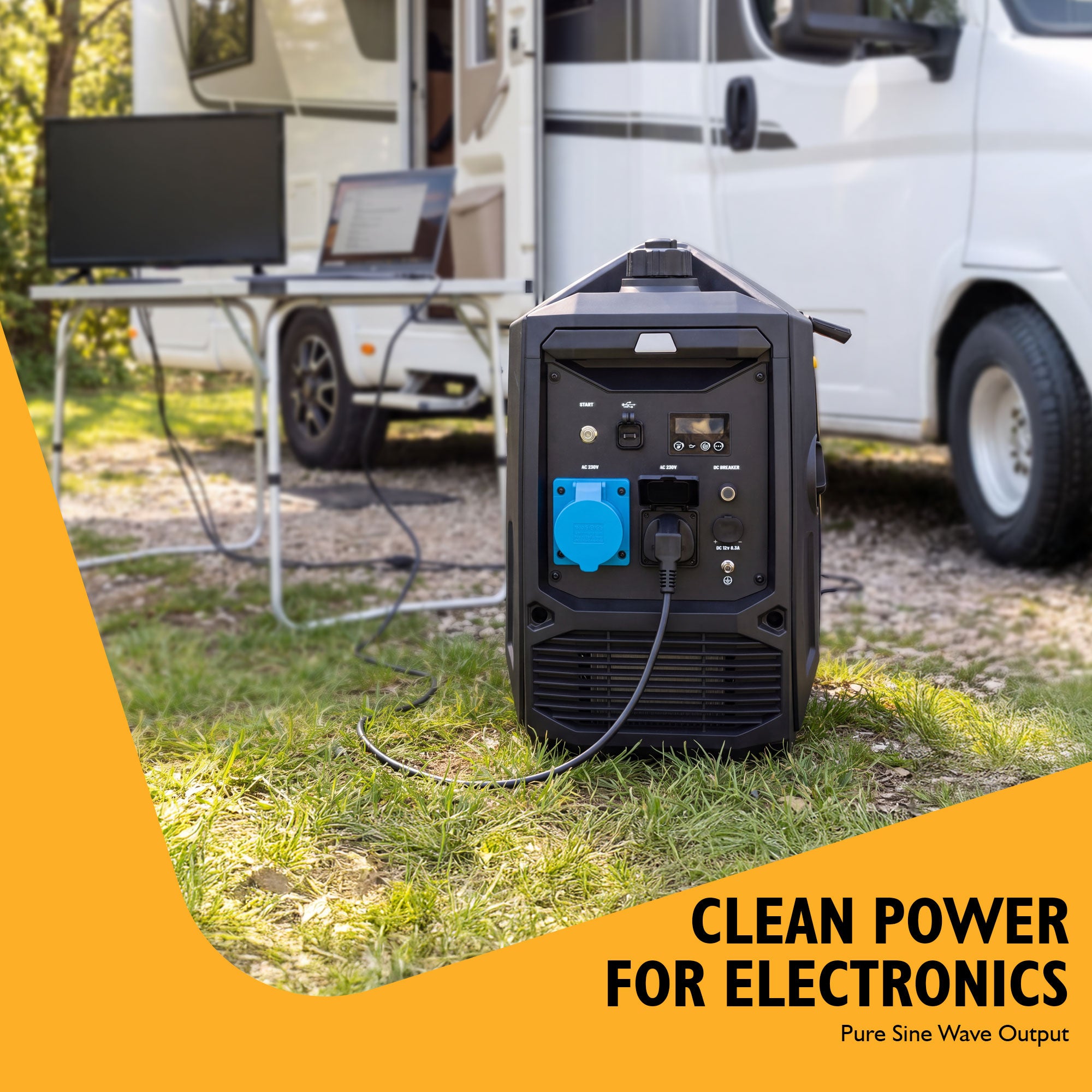

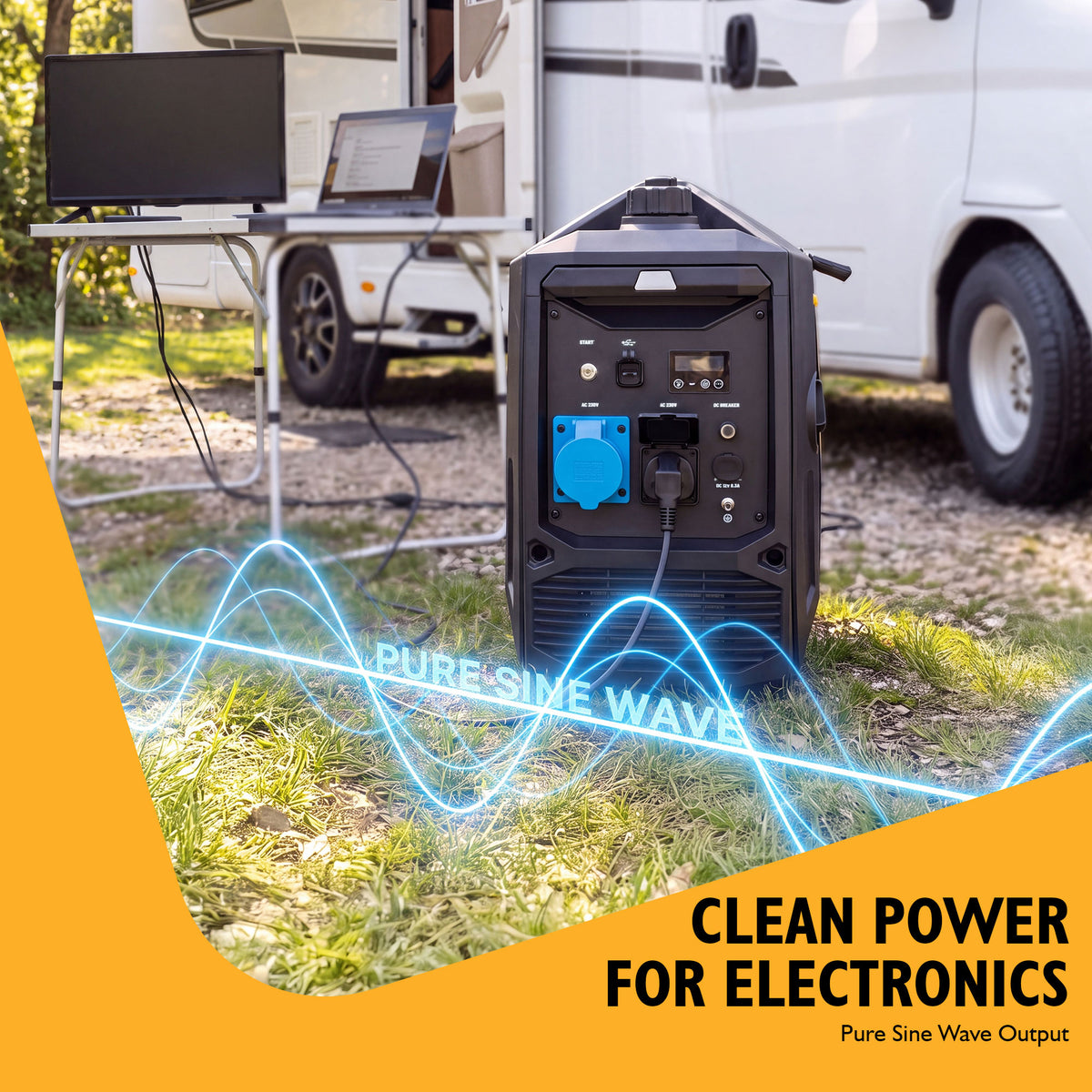

The JCB-IG4200E delivers 4200W maximum and 3800W continuous pure sine wave output for compatible lighting, events and equipment with sensitive electronics. The 230V supply is available through one 13A socket and one 32A industrial socket.

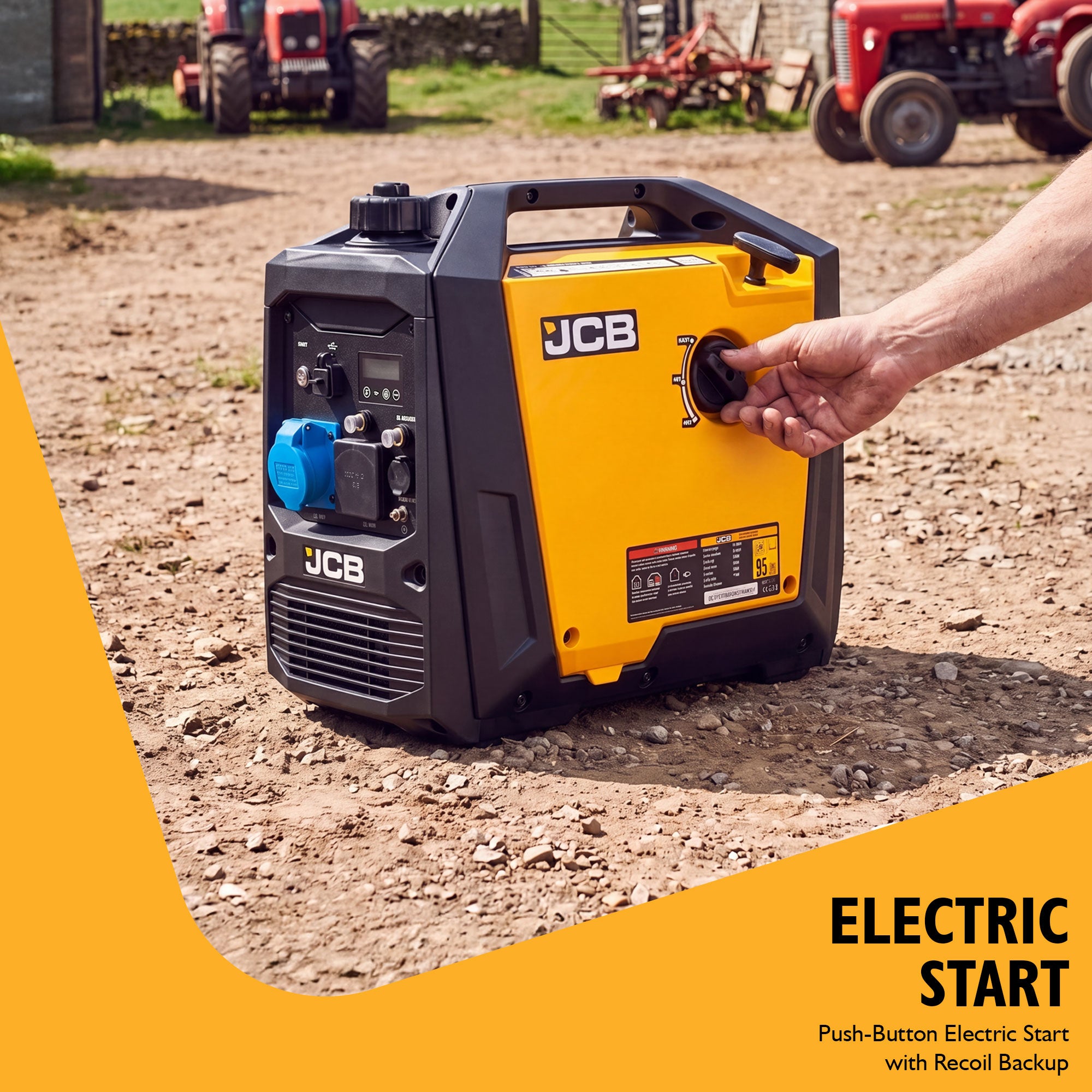

Electric Start with Recoil Backup

Push-button electric start uses the pre-fitted lithium-ion starter battery for straightforward starting, with recoil backup available when required. Eco mode adjusts engine speed under lighter loads.

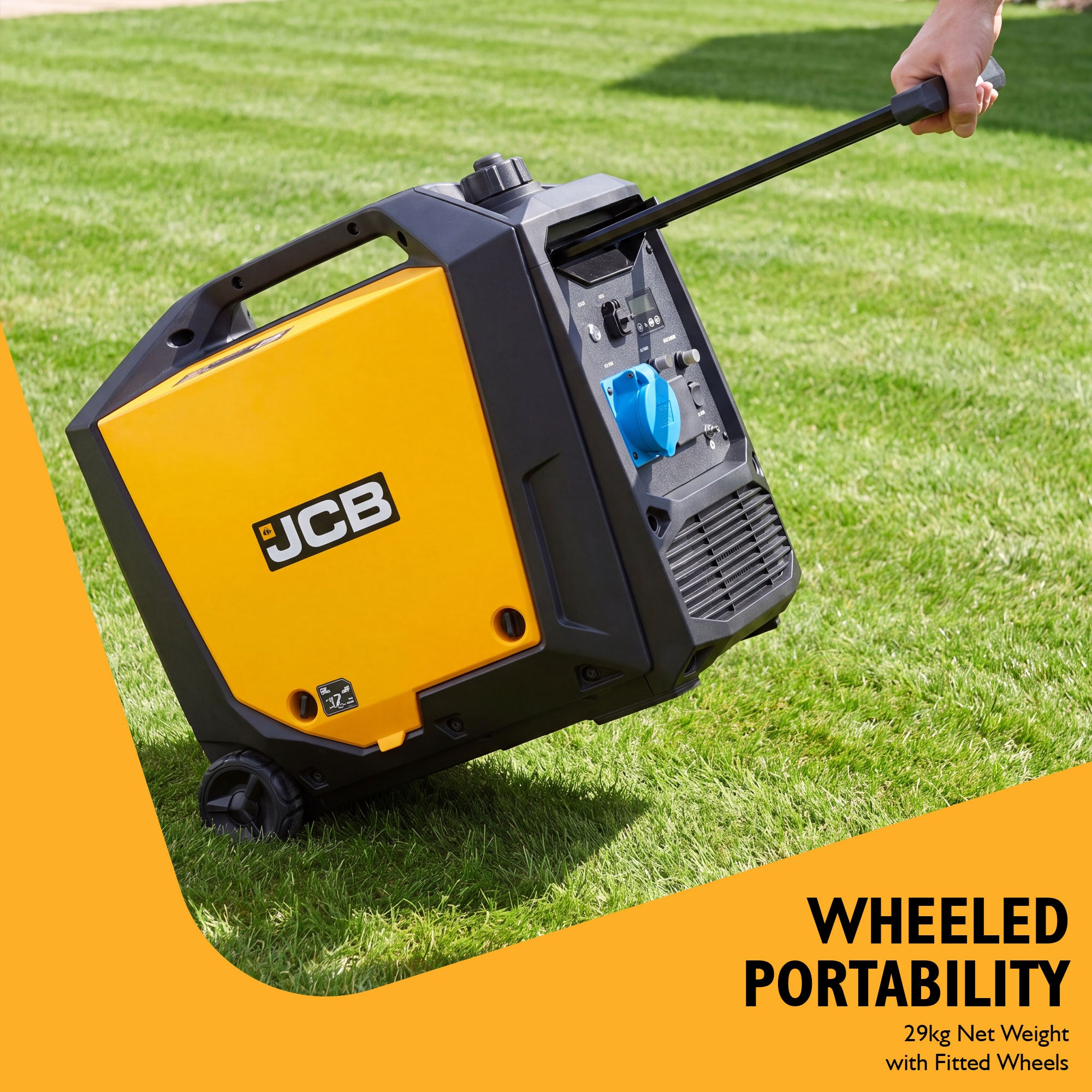

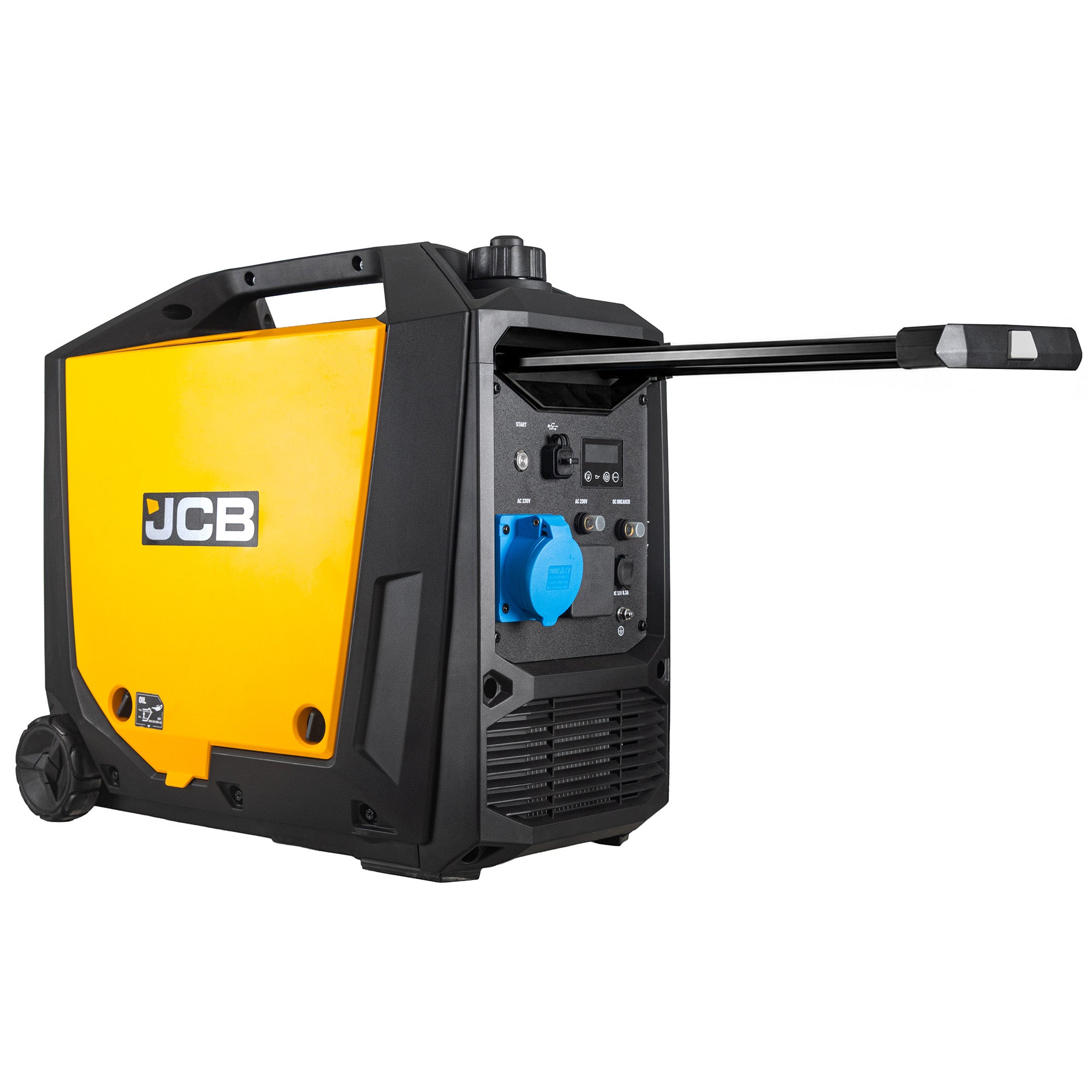

Wheeled 29kg Design

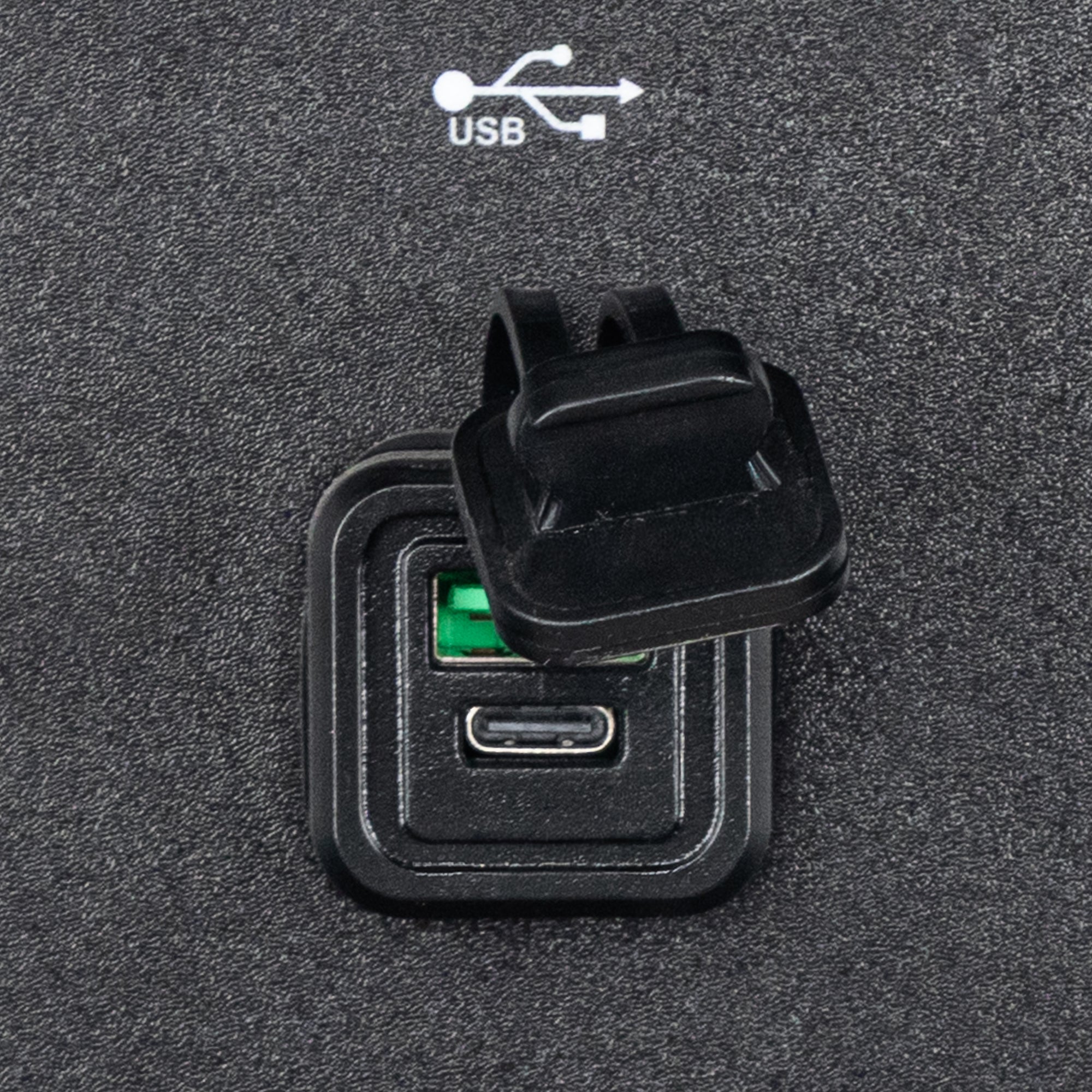

The factory-fitted wheel kit supports practical movement of the 29kg generator between storage and its outdoor operating position. USB, USB-C and 12V DC outputs add convenient connections for compatible low-voltage equipment and charging.

Carbon Monoxide Warning

Use this generator outdoors only, well away from doors, windows and vents. Never run it inside or in a partly enclosed space, including a house, garage, shed, tent, caravan, motorhome, large vehicle or site cabin, even with doors or windows open. Fit a separate, working battery-powered carbon monoxide alarm inside any nearby enclosed occupied space as an additional safeguard. An alarm does not make indoor or enclosed use safe.

Support, Warranty and Range

UK-based service and parts support is available. Warranty cover varies by use, with up to 3 years/1,000 hours for residential use, 1 year for commercial use and 90 days for hire; inverter/circuit boards carry 2 years. Check the full warranty terms and compare other models in the JCB Tools generator range.

Specifications

ModelJCB-IG4200E
Maximum output4200W
Continuous/rated output3800W
Supply230V, 50Hz, single phase
Rated current16.5A

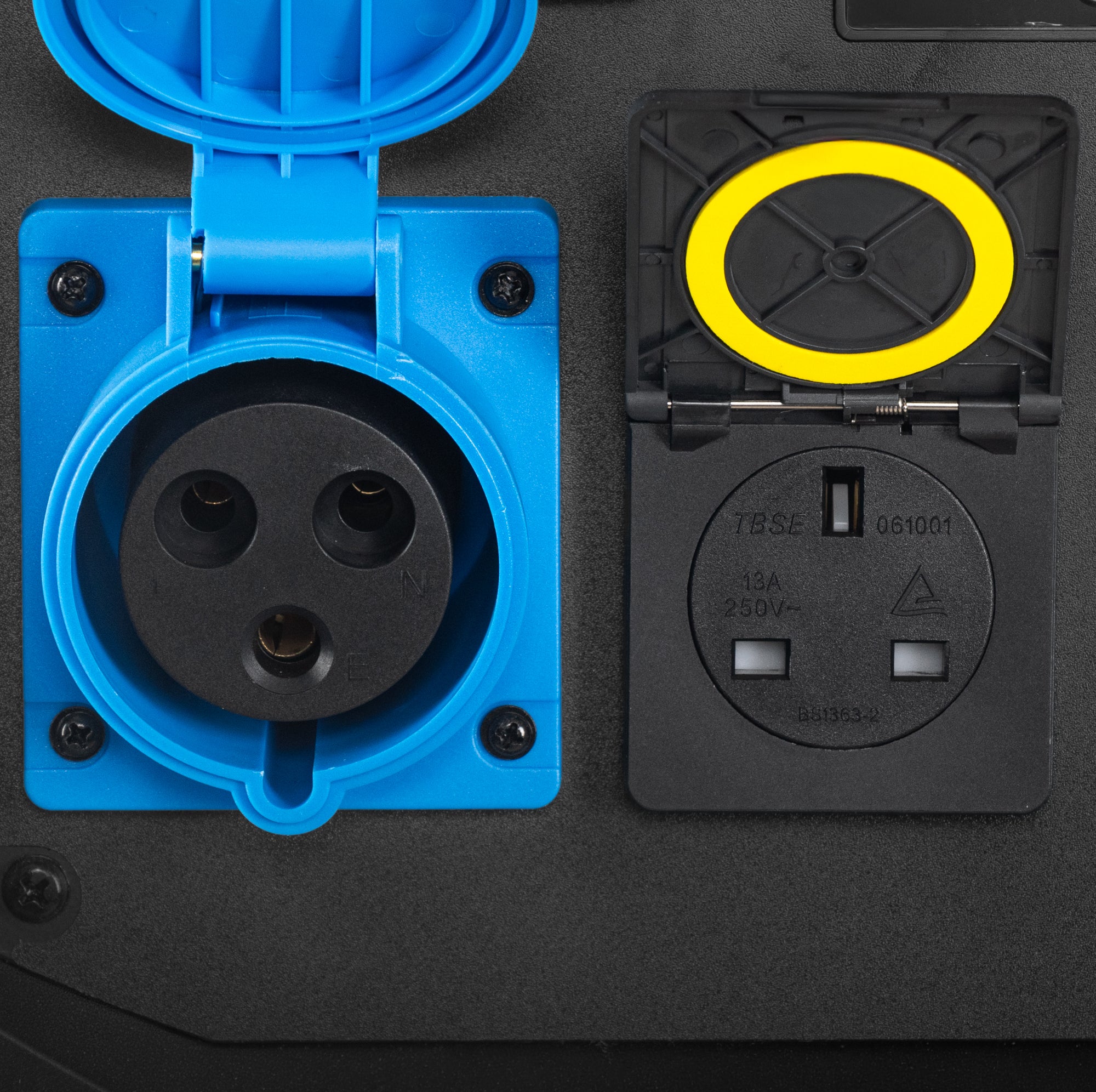

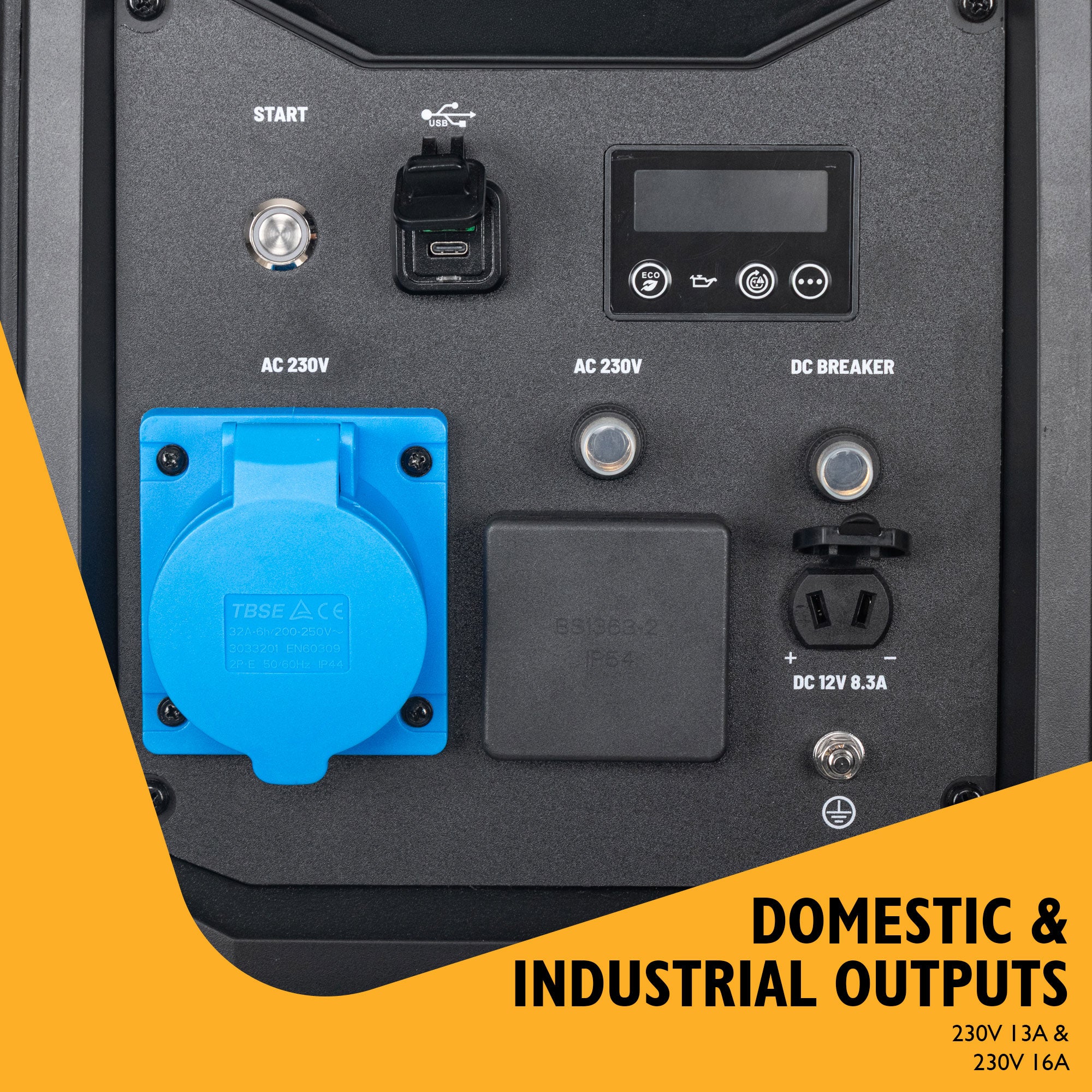

AC sockets1 x 13A BS and 1 x 32A industrial blue
Output typePure sine wave inverter
StartElectric start with lithium-ion starter battery and recoil backup
Engine174cc single-cylinder, 4-stroke OHV petrol
Engine speed4500rpm
FuelUnleaded petrol; 9L tank; calculated fuel consumption of 0.31L/h at 10% load
Engine oil0.45L; SAE 10W-30

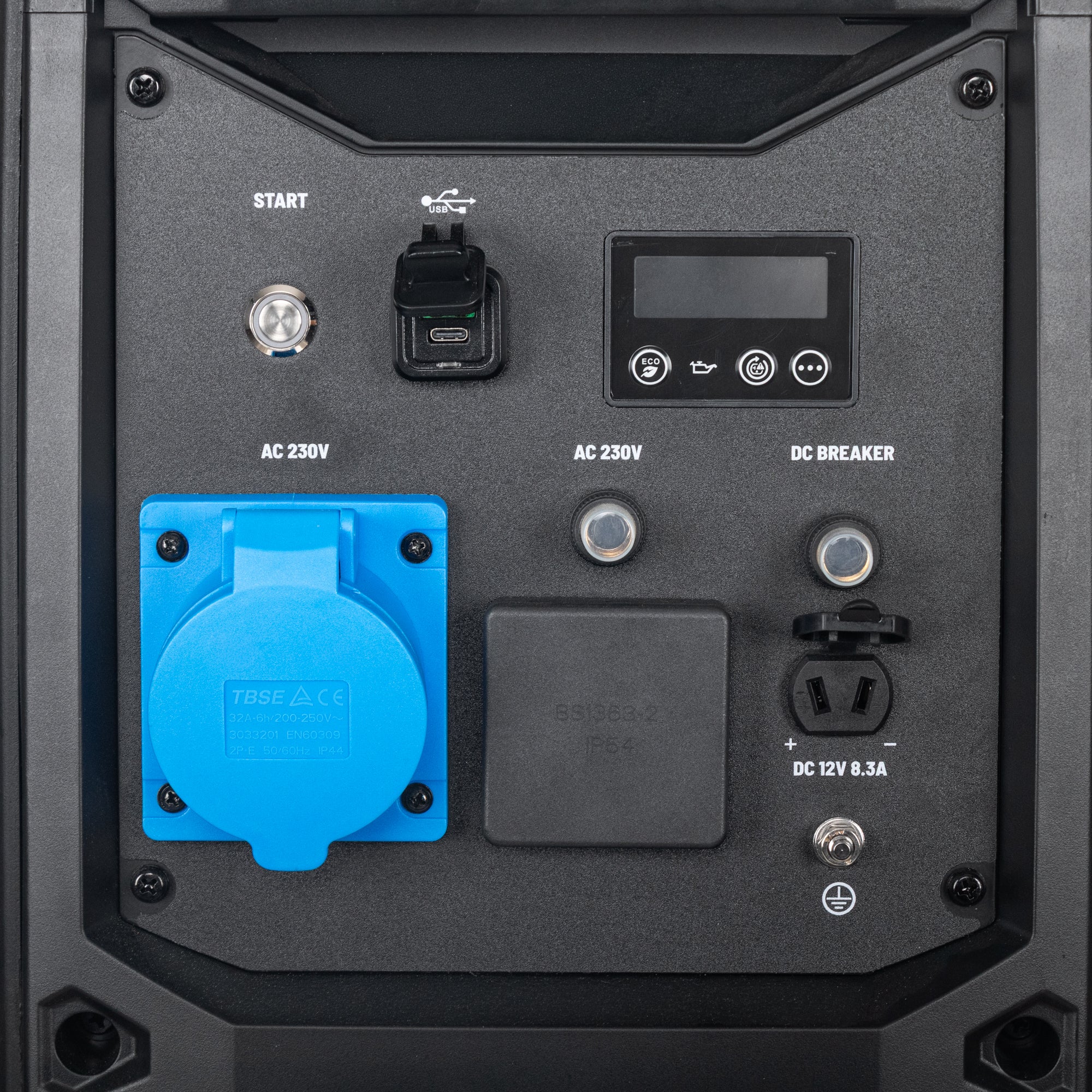

DC and USB outputs12V/8A, USB and USB-C
Noise63 dB(A) at 10% load from 7m; 64 dB(A) at 25% load from 7m
Dimensions (L x W x H)585 x 360 x 530mm
Net weight and mobility29kg; wheel kit fitted as standard
Controls and protectionEco mode, output/overload/low-oil indicators, automatic overload protection and low-oil shut-off
Package Dimensions (H x W x L) (mm)640 × 415 × 585 mm

What's in the Box

  • JCB-IG4200E inverter generator

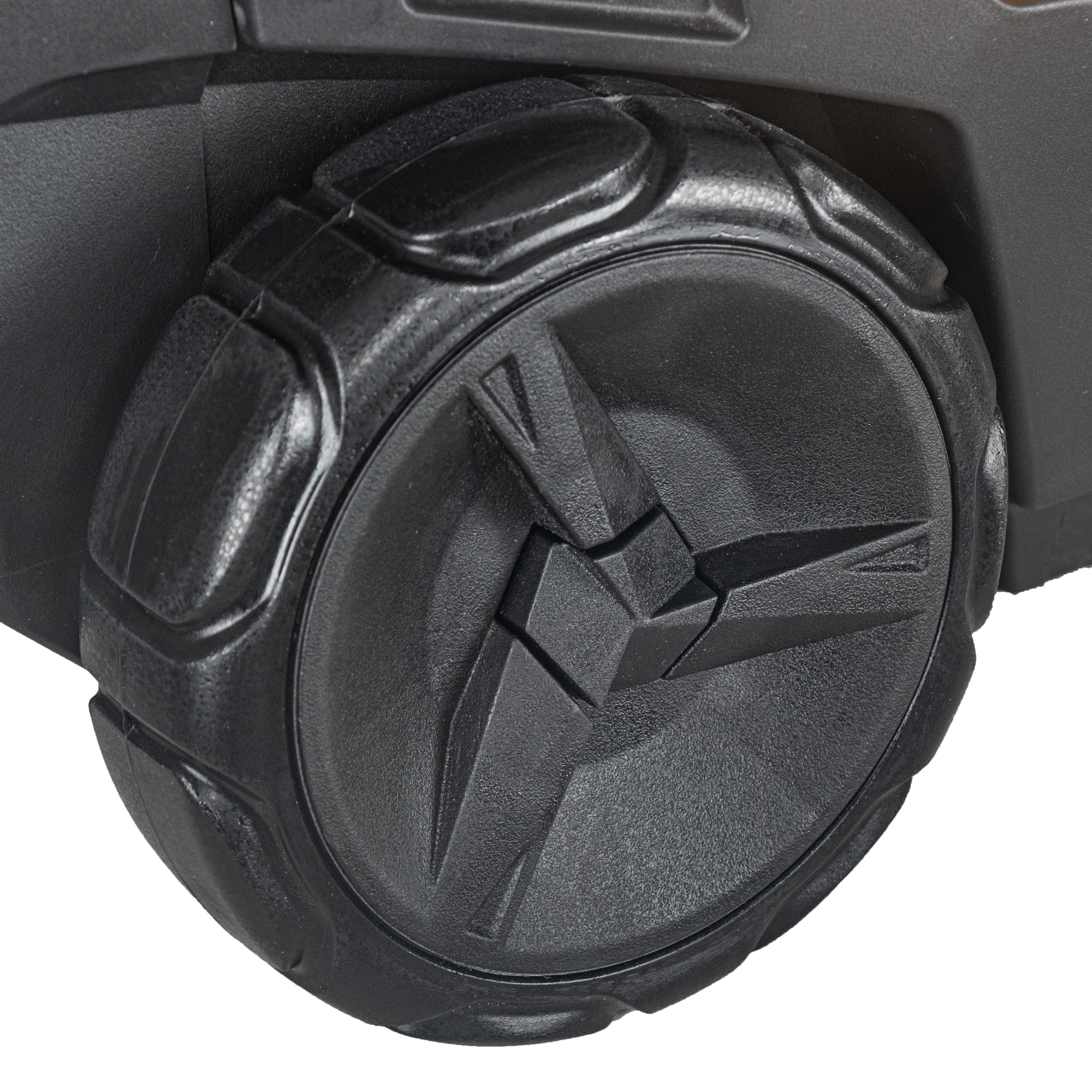

  • Pre-fitted wheel kit, including wheels, axle and fixings
  • Pre-fitted lithium-ion starter battery
  • Spark plug socket
  • Funnel
  • Screwdriver
  • DC power cable
  • Instruction manual

Support

JCB-IG4200E - Manual PDF Document
Download
JCB-IG4200E - Spec Sheet PDF Document
Download
