Product Details
Description

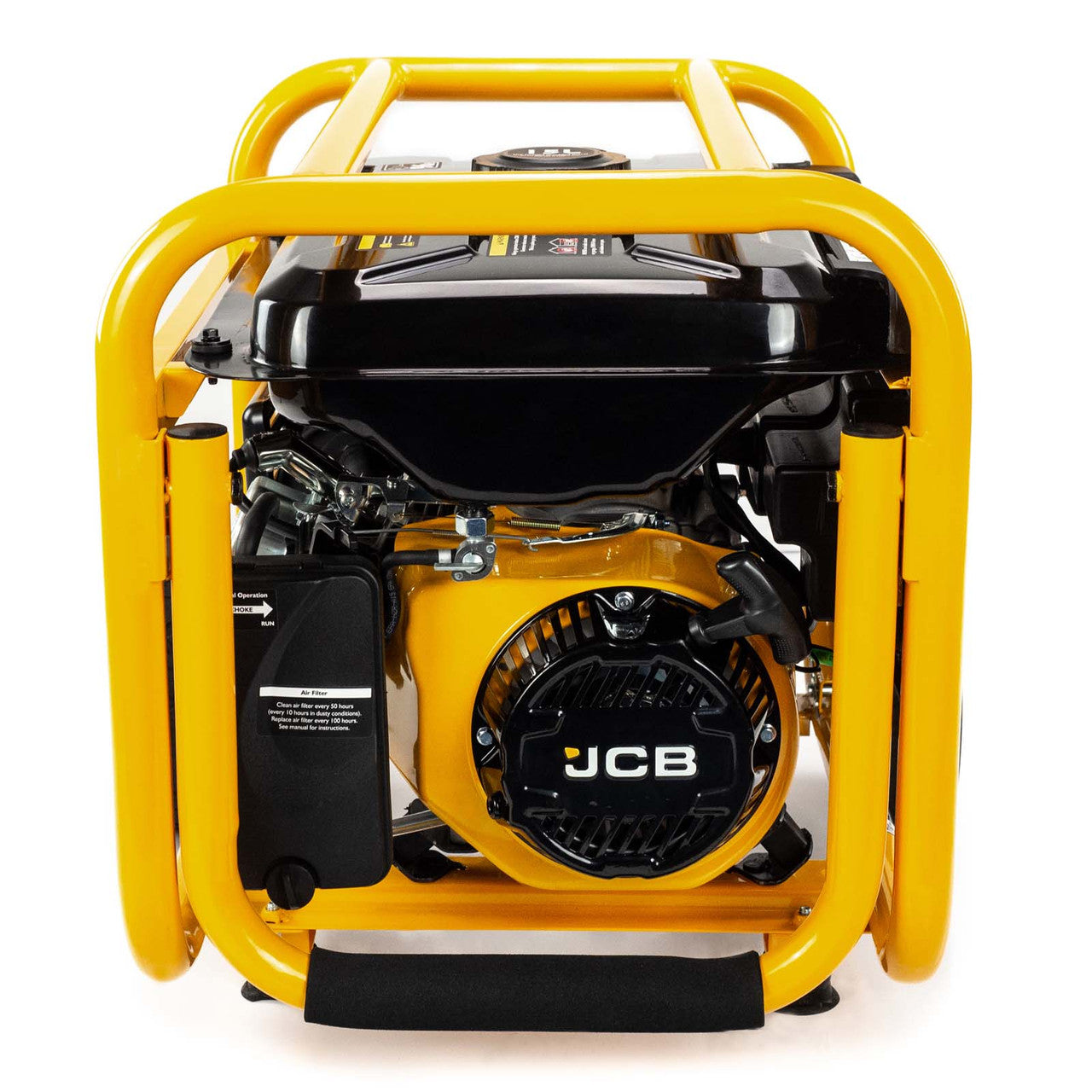

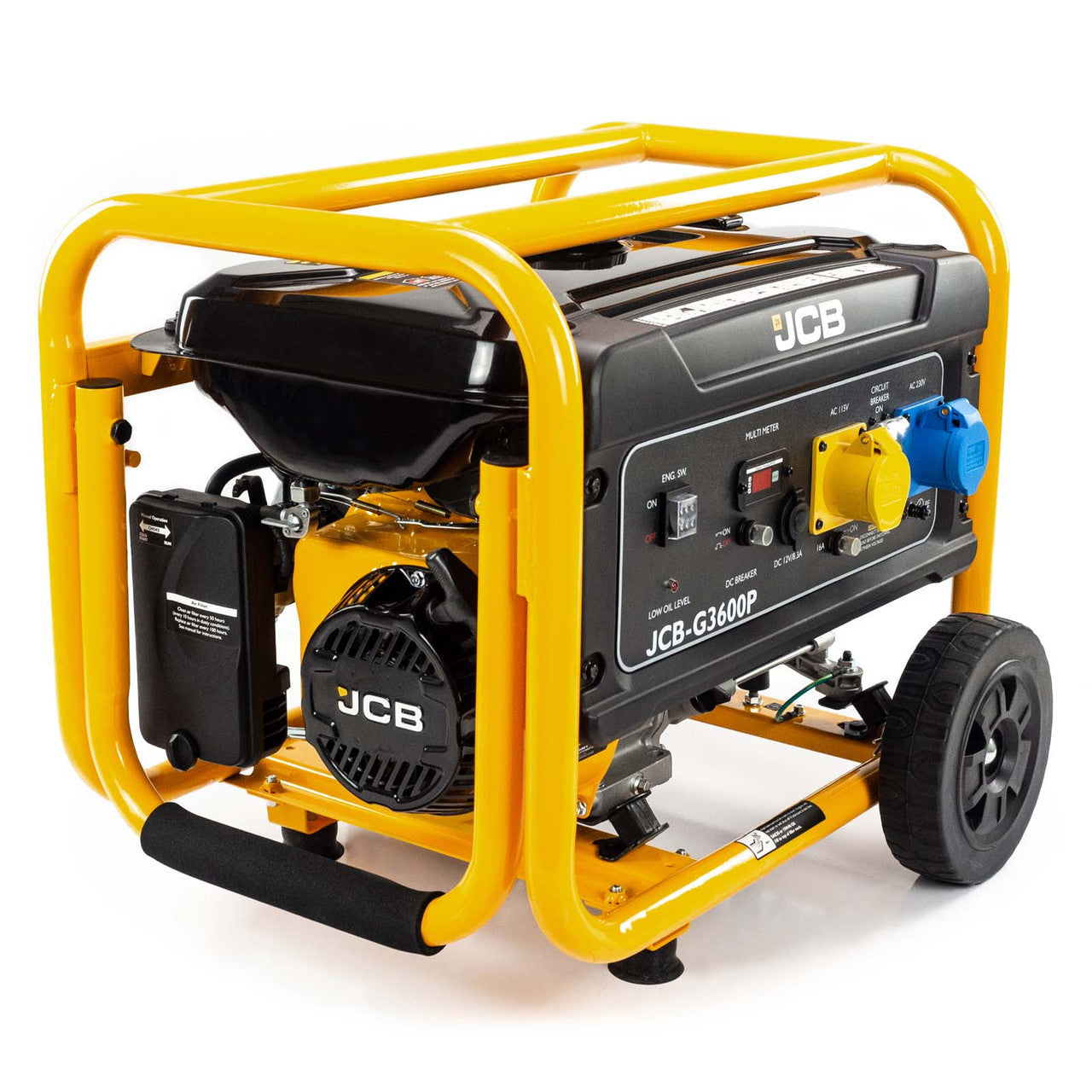

The JCB-G3600P is a robust and high-performance 4.5kVA petrol generator designed to meet the demands of professional applications. Equipped with a market-leading 224cc 7.5hp JCB petrol engine with an output of 3.6kW / 4.5kVA* at peak capacity. Its sturdy construction ensures reliable power generation for building and construction sites, mobile workshops, farms, and beyond!
3 Year Long-term Warranty
For your peace of mind, the JCB-G3600P comes with a comprehensive 3-year warranty* (terms apply). With full parts and service backup, JCB Tools ensures your generators remain in excellent condition for years to come.
Read more information on Generator Safety Operation and Carbon Monoxide Safety.
Important:- If using E10 Petrol, this product must be used with high-quality unleaded fuel ONLY. ALWAYS use automotive petrol/gasoline suitable for four-stroke engines
- DO NOT mix fuel and oil.
- It is recommended to use E10 (95 RON) automotive fuel, with an appropriate additive or stabiliser in this product.
- Damage caused by failure to add fuel or using incorrect or poor-quality fuel is not covered by your warranty.
- E10 petrol is hygroscopic and attracts moisture, which may damage the fuel system if stored in the product for more than four weeks.
- After draining the fuel tank, always run the engine until the last of the fuel in the system is spent and drain the float bowl when the engine is cool.
- E10 petrol should be used within 30 days of purchase.
- Some petrol brands contain other quantities of ethanol. DO NOT use fuels with more than 10% ethanol in your product.
- Always store and dispose of fuels responsibly and in accordance with local regulations.
Specifications
| Assembly Required? | Yes - some assembly may be required |
| Casing | 32mm Thick Open Frame |

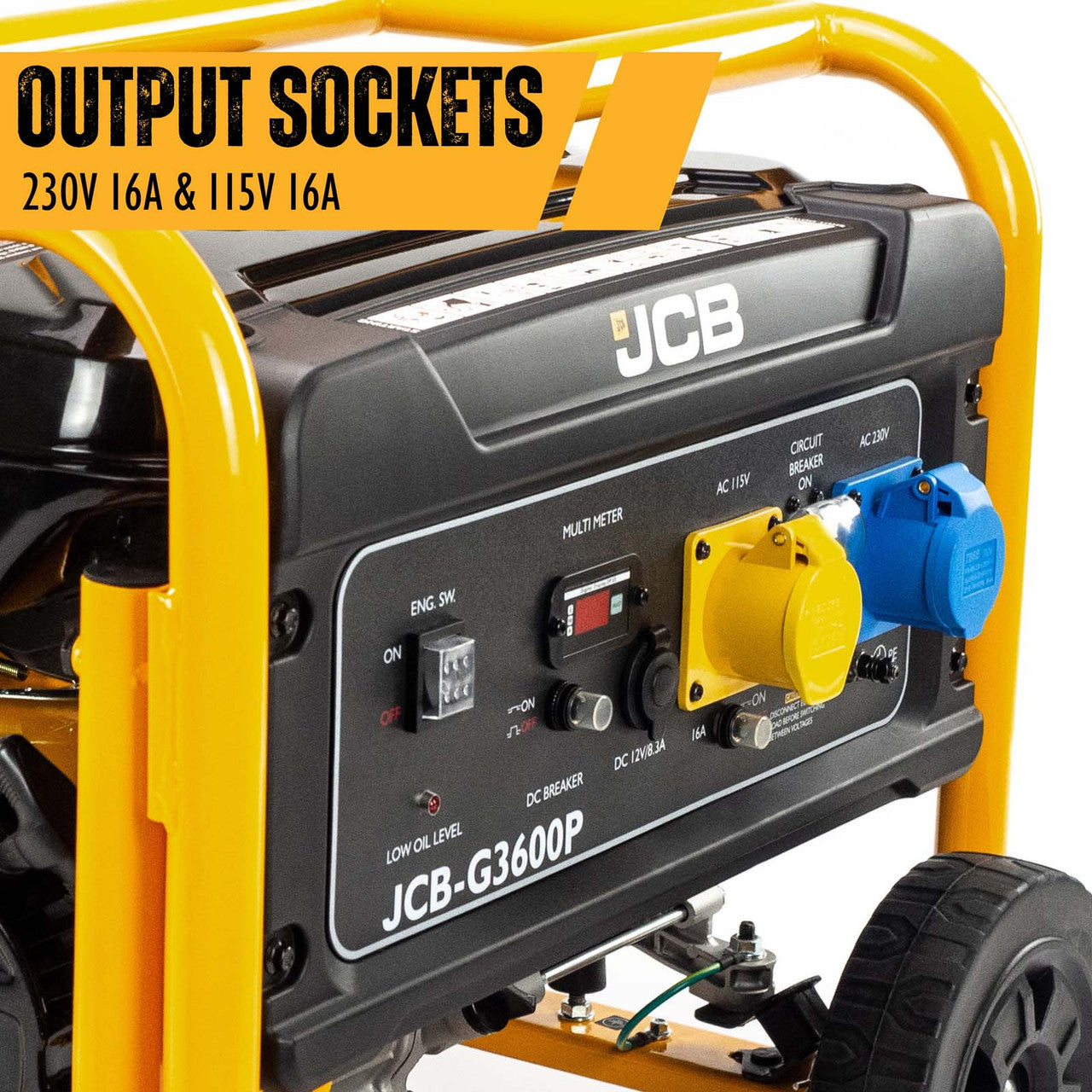

| Connection Method(s) | Sockets - 1x 230V/16A, 1x115V/16A 12V DC 8.3A" |
| Continuous Output (kVa) | 4 |
| Continuous Output (kW) | 3.2 |
| EAN | 5059608313055 |
| Engine Model | JCB-EG225P |
| Engine Oil Capacity (ml) | 600 |
| Engine Oil Type | 10w-30 / SAE 15w40 |
| Engine Power (hp) | 7.5 |
| Engine Size (cc) | 224 |
| Engine Type | Petrol single cylinder |
| Features | Overload Protection |
| Frame Diameter (mm) | 32 |
| Frequency (Hz) | 50 |
| Fuel | Petrol |
| Fuel / Power Source | Petrol |

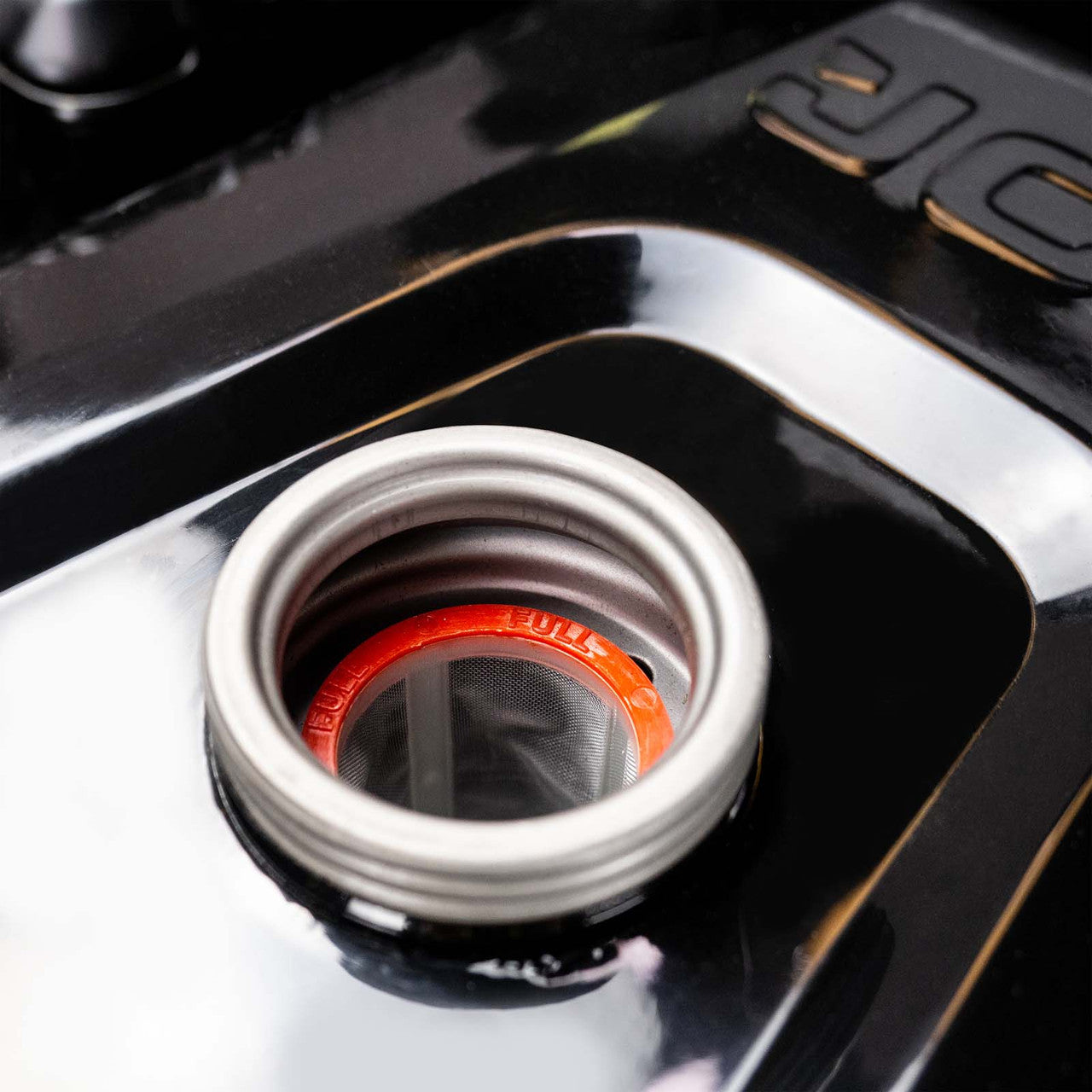

| Fuel Capacity (L) | 15 |
| Fuel Consumption @ 100% load (L/Hr) | 2 |
| Fuel Consumption @ 50% load (L/Hr) | 1.15 |

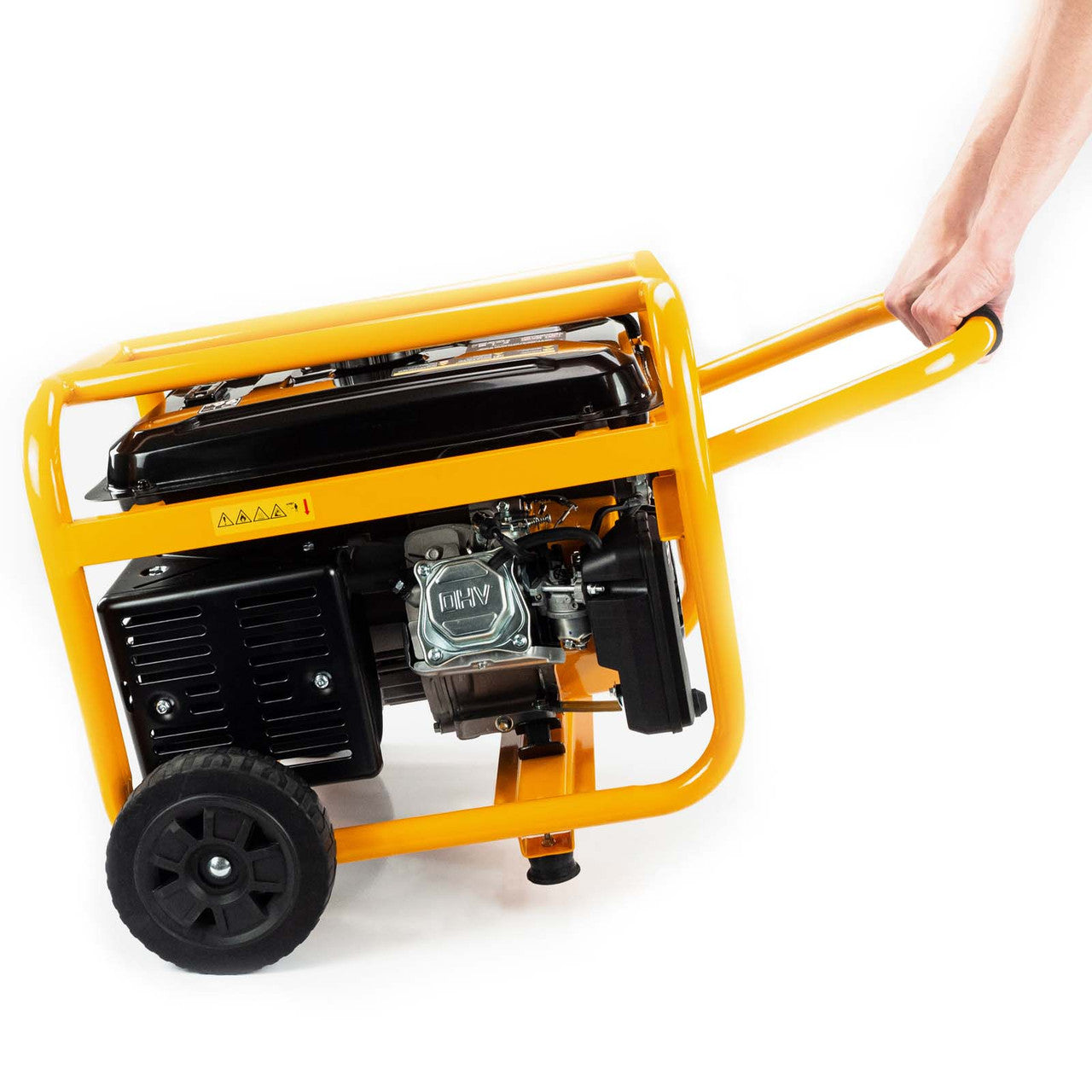

| Fully Assembled Dimensions (L x W x H) (mm) | 610 x 595 x 545 (handle protracted) 915 x 595 x 545 (handle extended) |
| Gross Weight (kg) | 54 |
| Low Oil Level Shutdown | Yes |
| Max/Continuous Current (Amps) | 15.6 / 13.9 |
| Maximum Output (kVA) | 4.5 |
| Maximum Output (kW) | 3.6 |
| Model | JCB-G3600P |
| Net Weight (kg) | 51 |
| Noise Level @ 1m 75% load (dB) | 97 |
| Noise Level @ 7m 75% load (dB) | 70 |
| Package Dimensions (L x W x H) (mm) | 685 x 520 x 515 |
| Phase | Single Phase |
| Power Factor (Cosφ) | 1 |
| Product Type | Petrol Generator |
| Rated Speed (RPM) | 3000 |
| Run Time @ 100% load (hours) | 7 |
| Run Time @ 50% load (hours) | 13 |

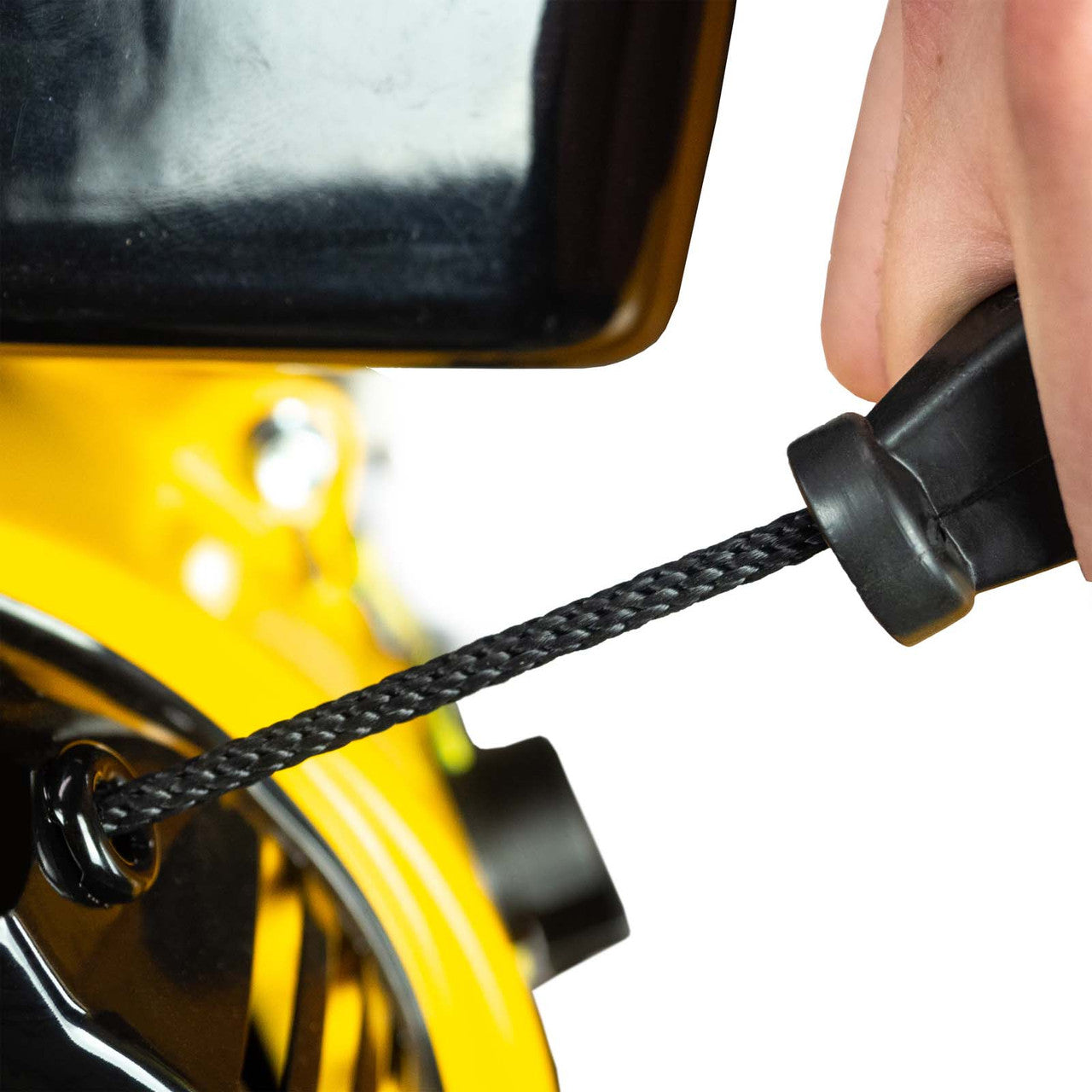

| Start Method | Recoil |
| Voltage | 115V / 230V |

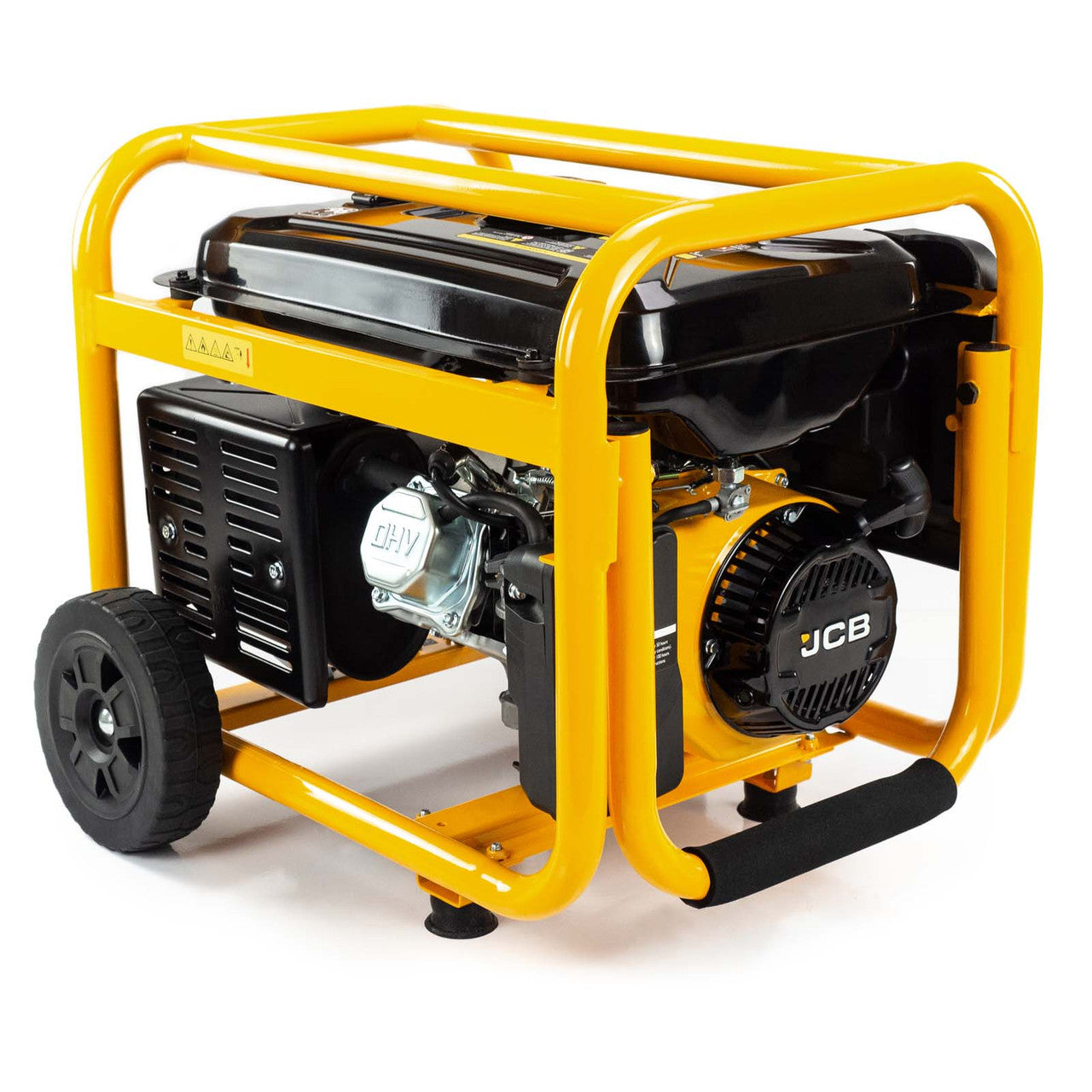

| Voltage Regulation Method | AVR |
| Warranty (Years) | 3 |

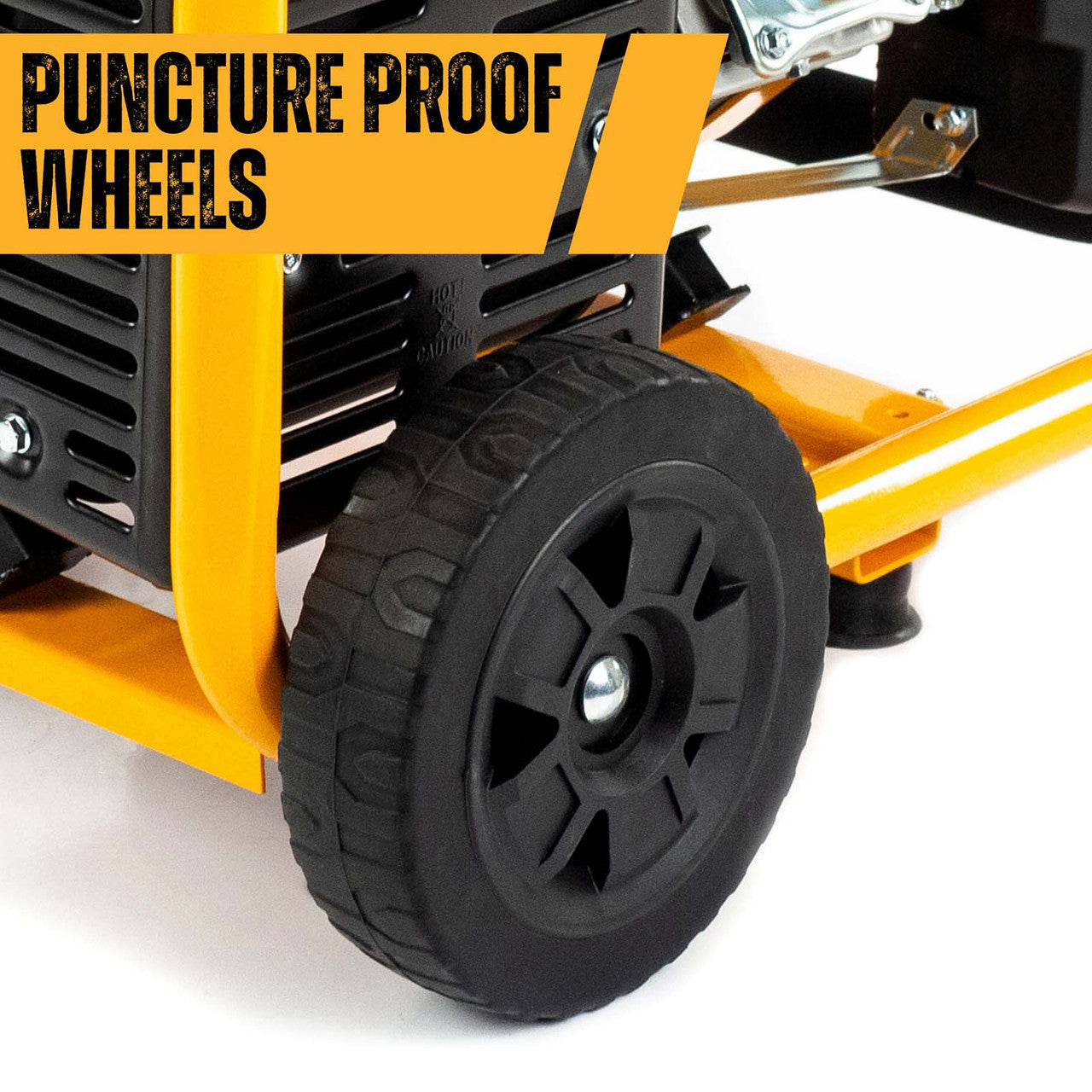

| Wheel Kit? | Yes |
What's in the Box
- JCB Tools JCB-G3600P Generator
- User Manual
