Product Details
Description

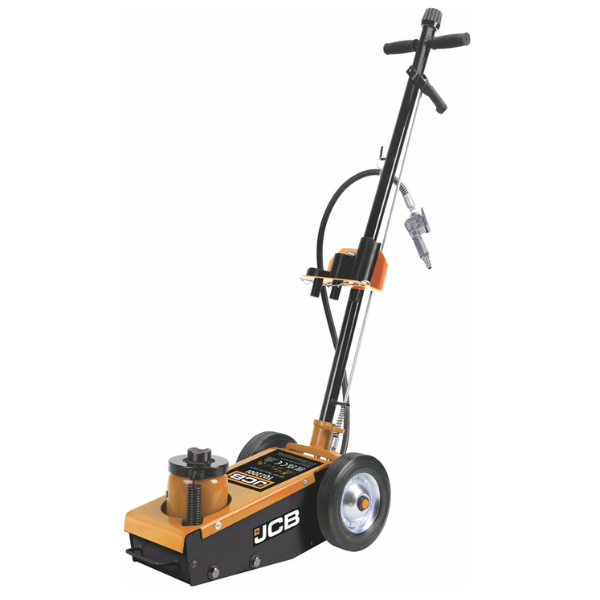

The JCB 22 Tonne Hydraulic Trolley Jack is a wheeled pneumatic-hydraulic jack with a lifting capacity of up to 22 tonnes, maximum lifting height of 430mm and minimum lift of 215mm . It is a highly efficient tool for lifting trucks or heavy machinery.
Key features
- Quick height adjustment provides efficiency and accuracy during operation.
- Maximum Lifting Height 430mm
- Minimum Lifting Height 215mm
- A reliable air intake mechanism ensures uninterrupted and smooth operation of the jack.
- The controlled smooth lowering system guarantees safety for both you and the vehicle when reducing height.
- Large rubber wheels facilitate comfortable maneuvering and precise positioning in confined spaces and on uneven surfaces.
- A robust solid steel construction with a durable coating.
- Three different saddle adapters to increase lifting capacity and more precise positioning during work.
- An ergonomic T-shaped handle for easy maneuvering of the jack. The handle is equipped with a position lock.
- A special profile designed for working with high-clearance trucks.
- A built-in safety valve provides reliable protection against overloading.
Comprehensive 3-Year Warranty (Terms Apply)
Specifications
| Dimensions H x W x L (mm) | - |
| EAN | 5056485705119 |
| Gross Weight (kg) | 47 |
| Lifting Capacity (T) | 22 |
| Max Height (mm) | 430 |
| Min Height (mm) | 215 |
| Model | JCB-TQ22001 |
| Net Weight (kg) | 45 |
| Package Dimensions H x W x L (mm) | 675 x 390 x 260 |
| Product Type | Trolley Jack |
| Warranty (Years) | 3 |
| Wheel Type | Standard |
