Product Details
Description

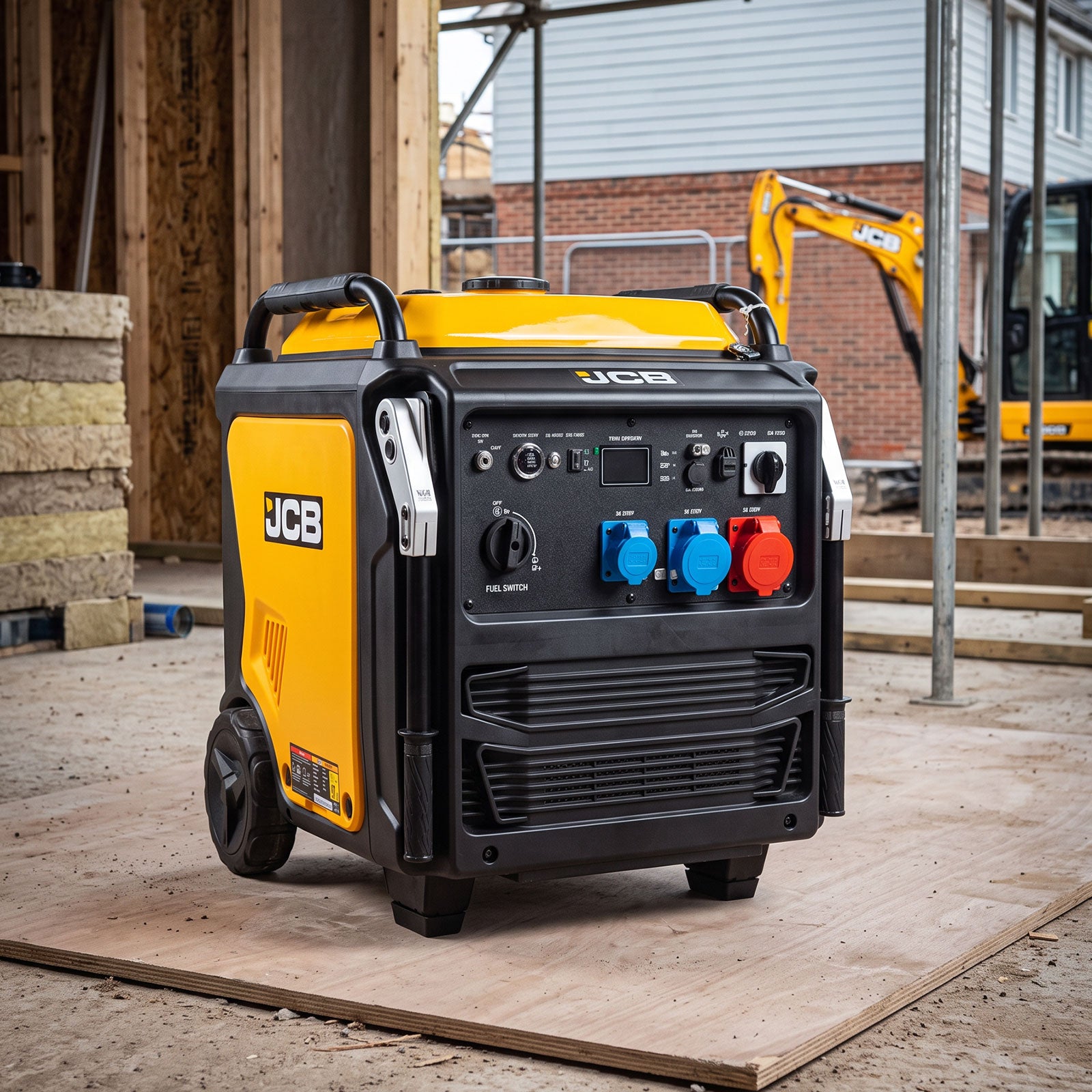

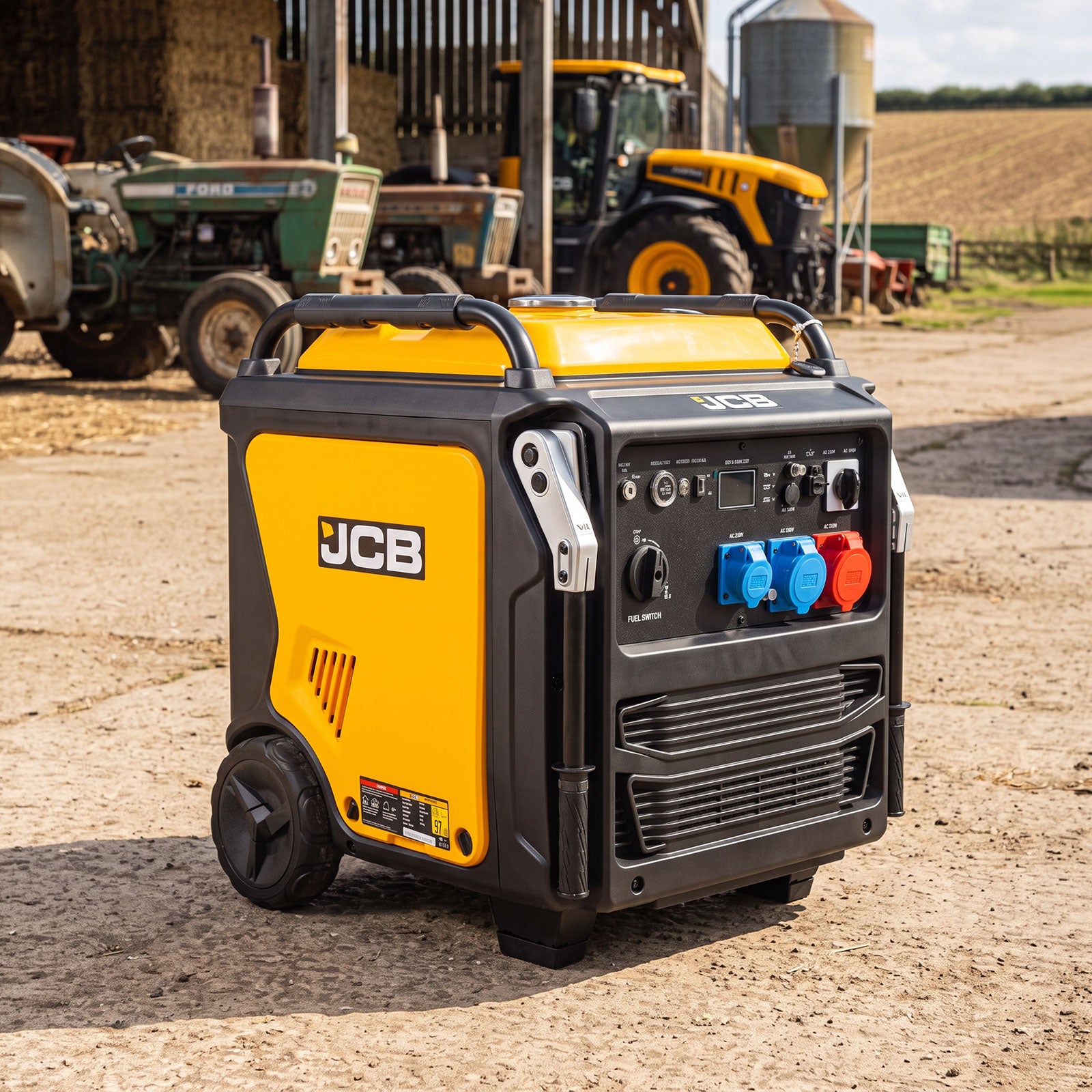

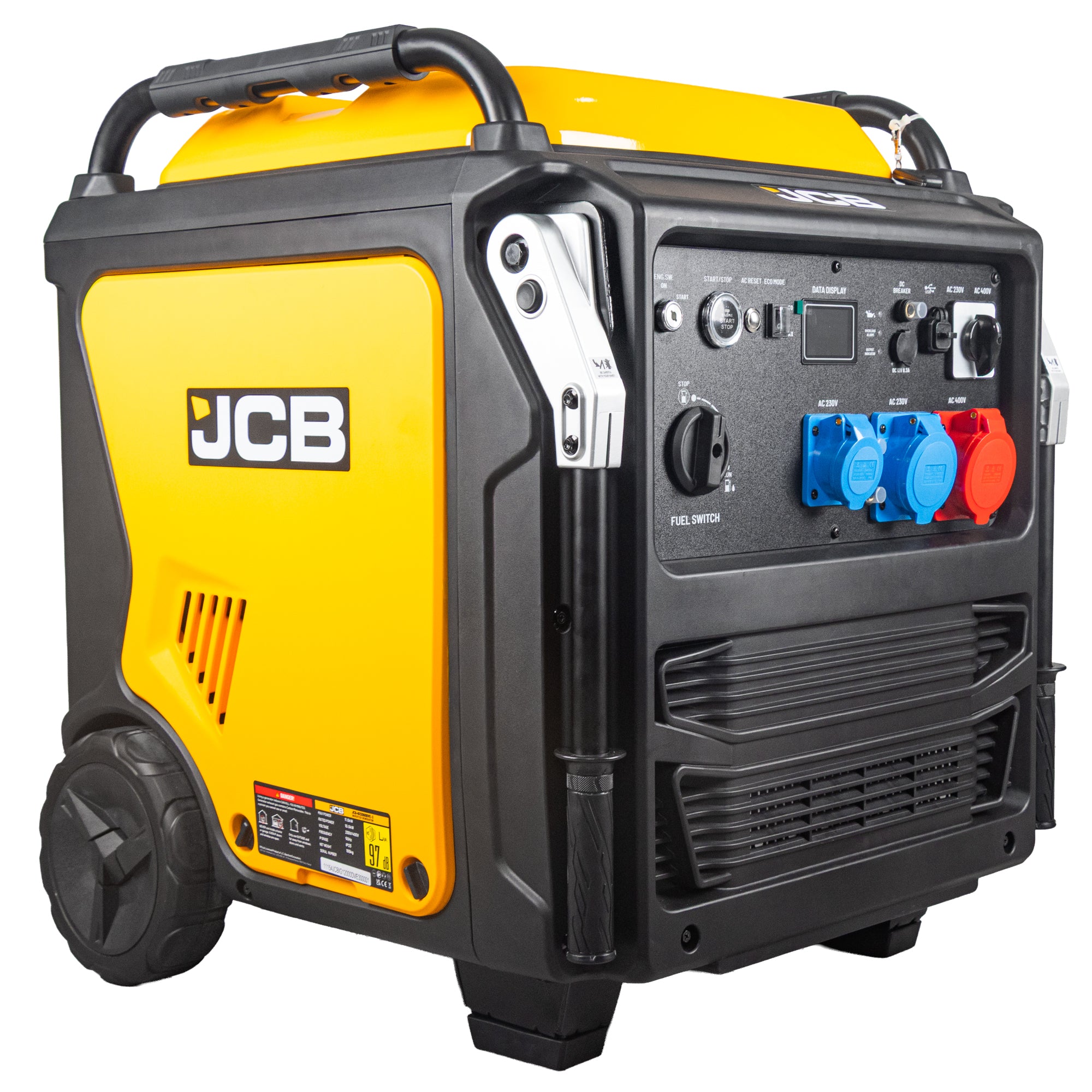

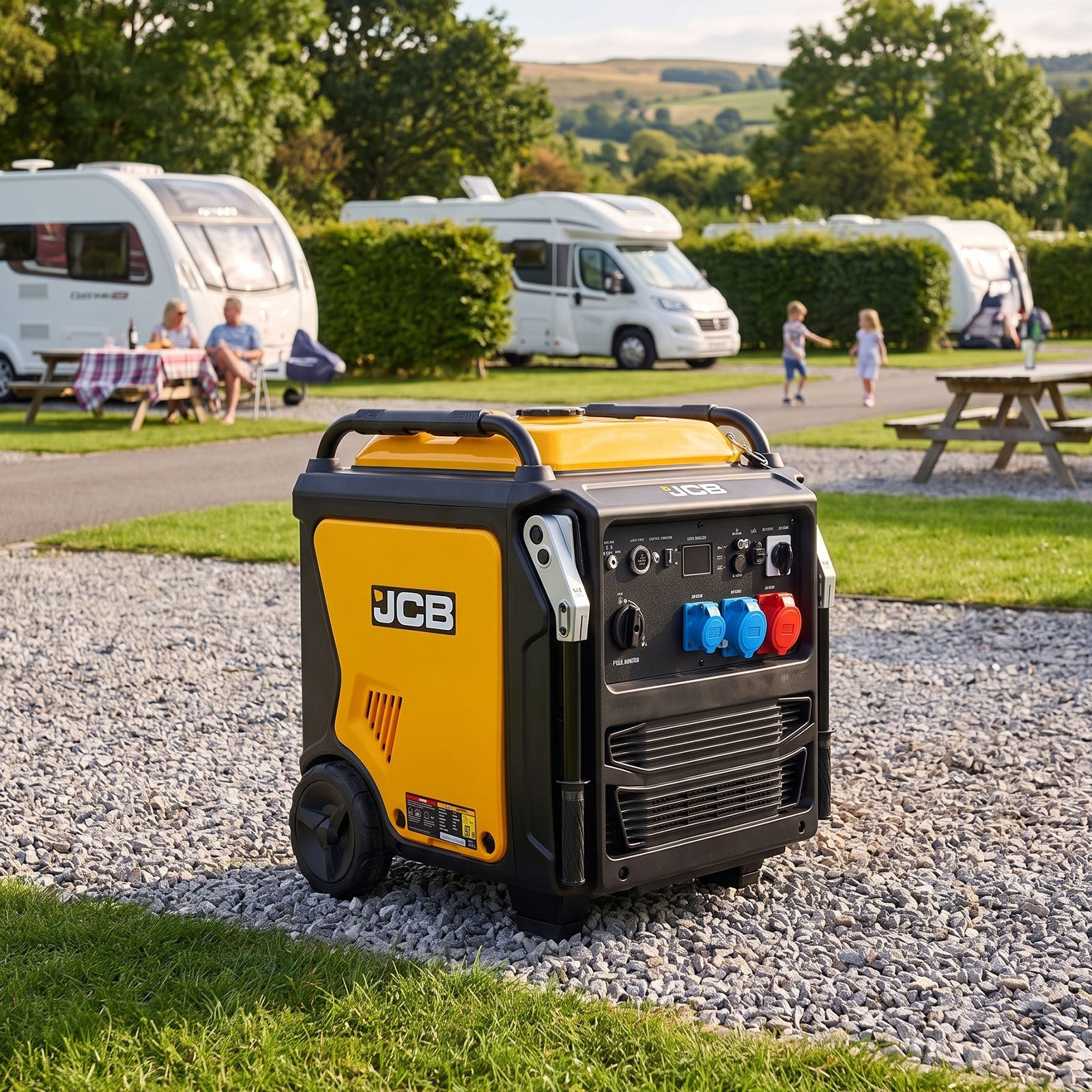

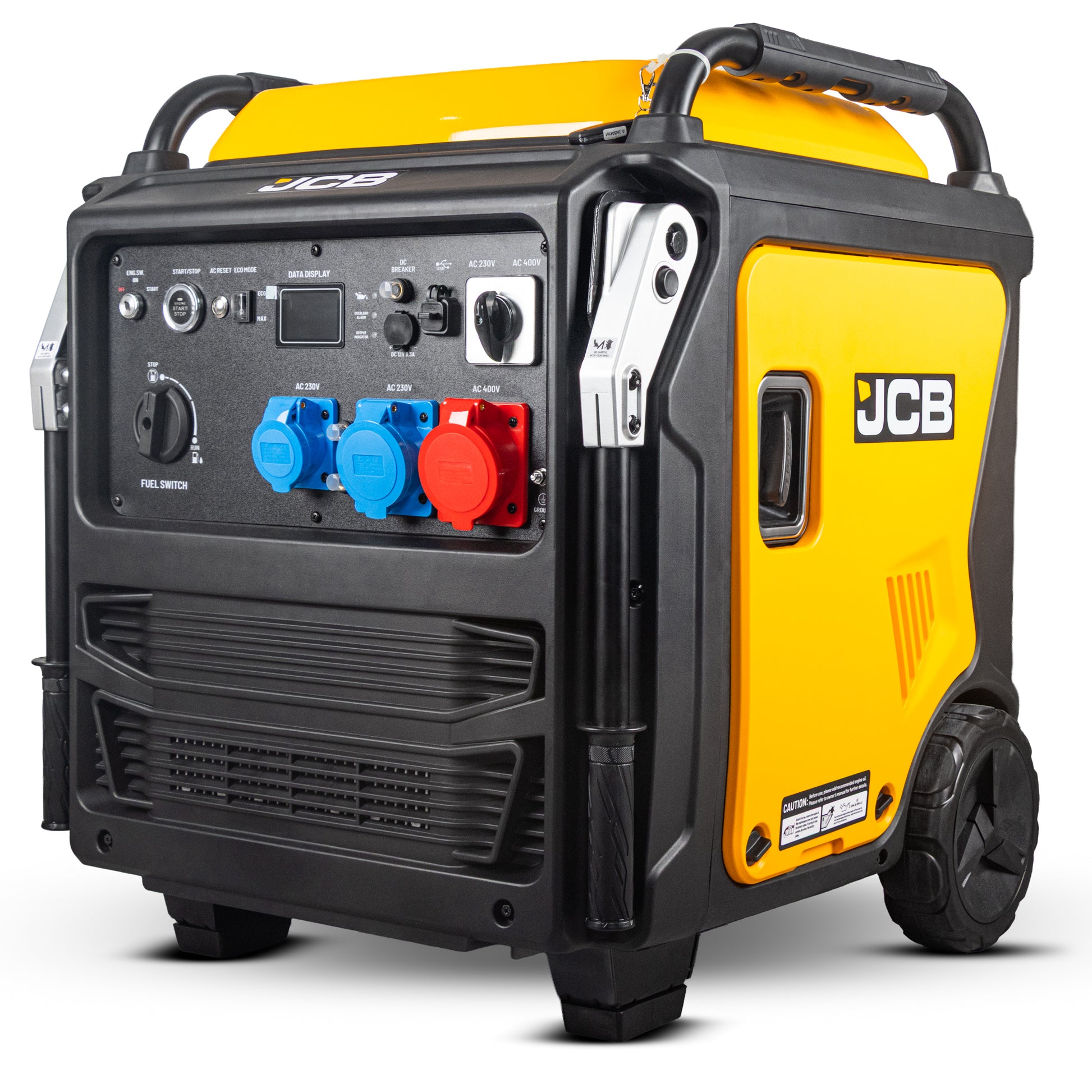

The JCB-IG12000DVE-3 is a wheeled petrol inverter generator providing pure sine wave output at 230V single phase and 400V three phase for compatible industrial plant, lighting and temporary equipment. It delivers 11kW (11,000W) maximum and 10kW (10,000W) continuous output at either voltage, with electric, recoil and remote start. Three-phase connections and load distribution must be planned by a competent electrician.

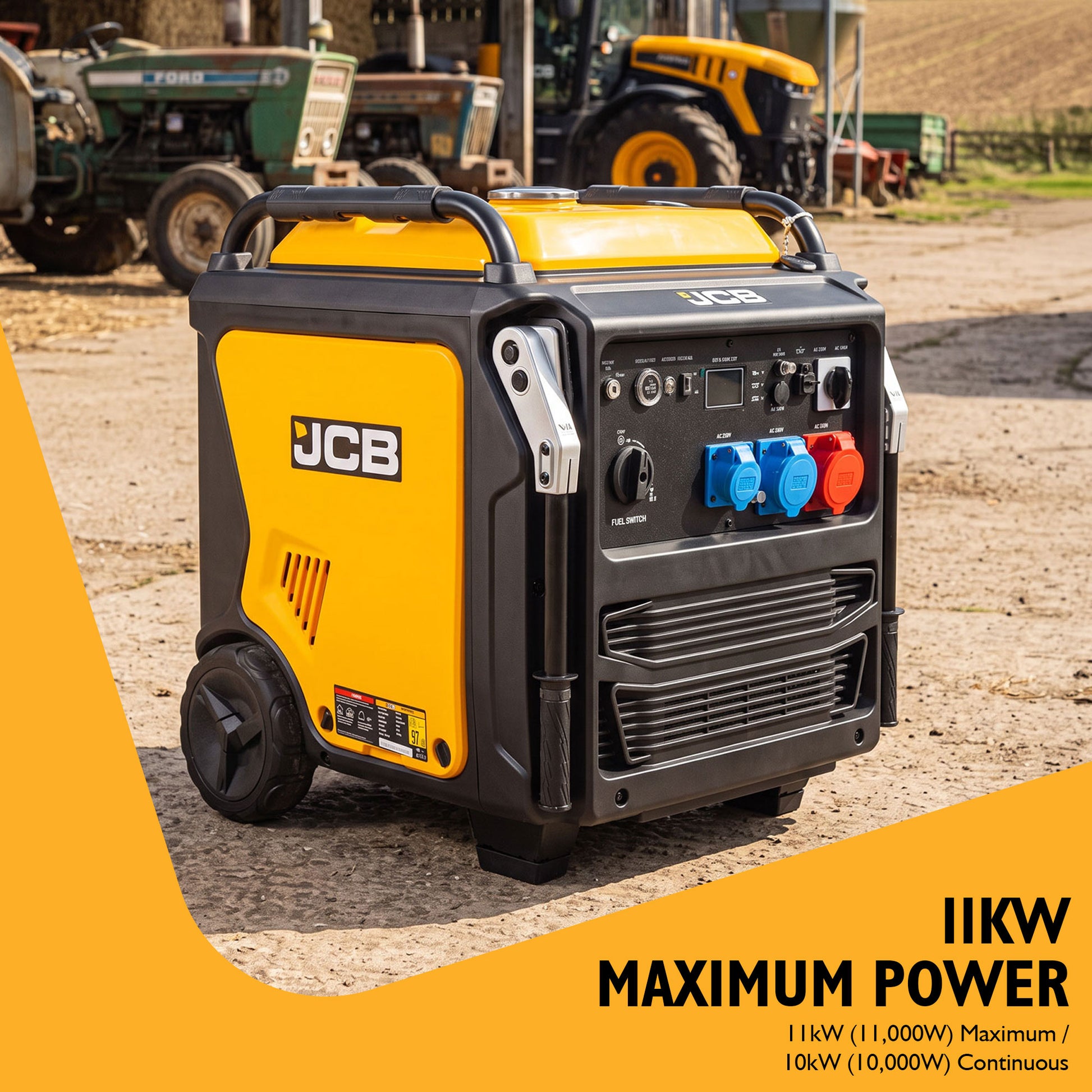

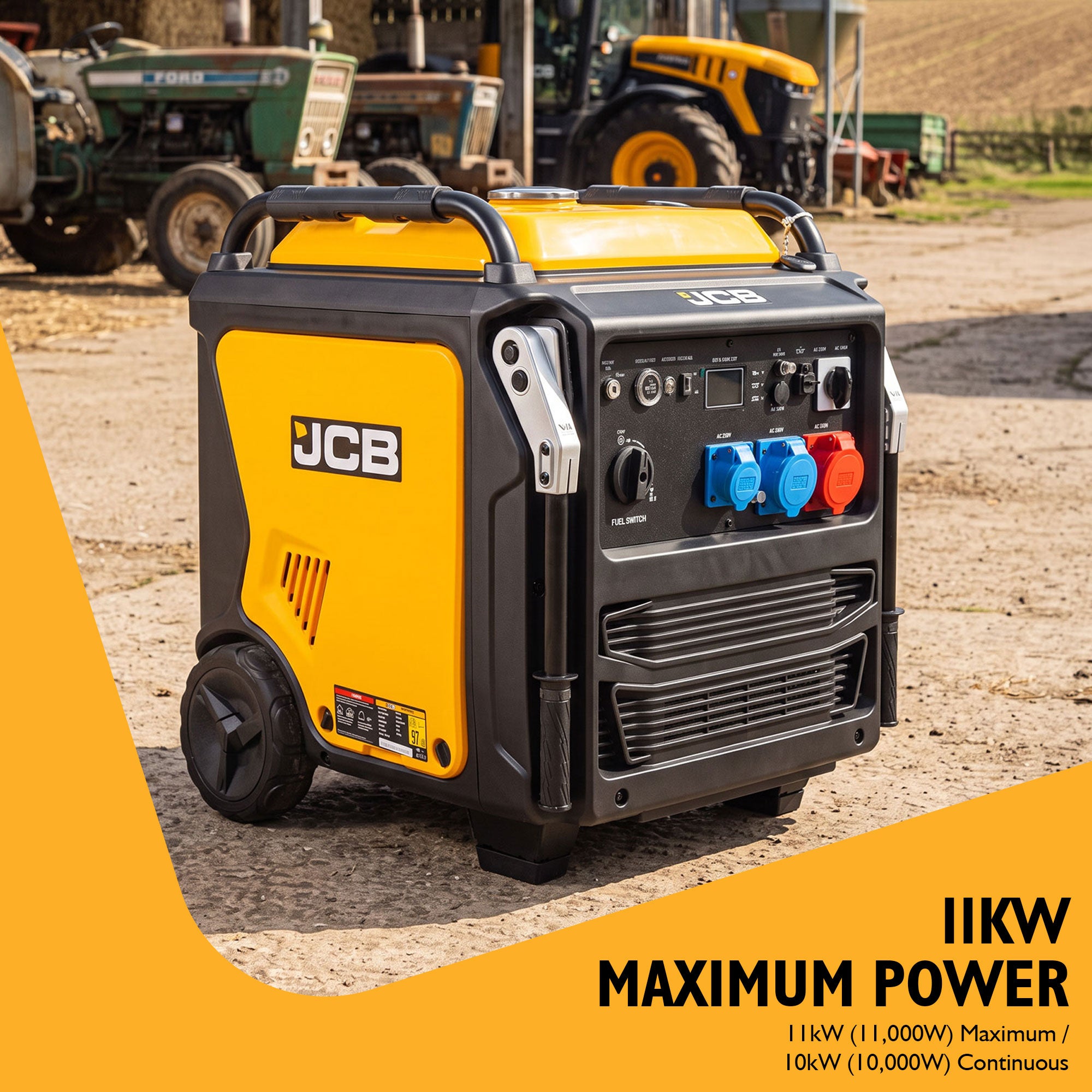

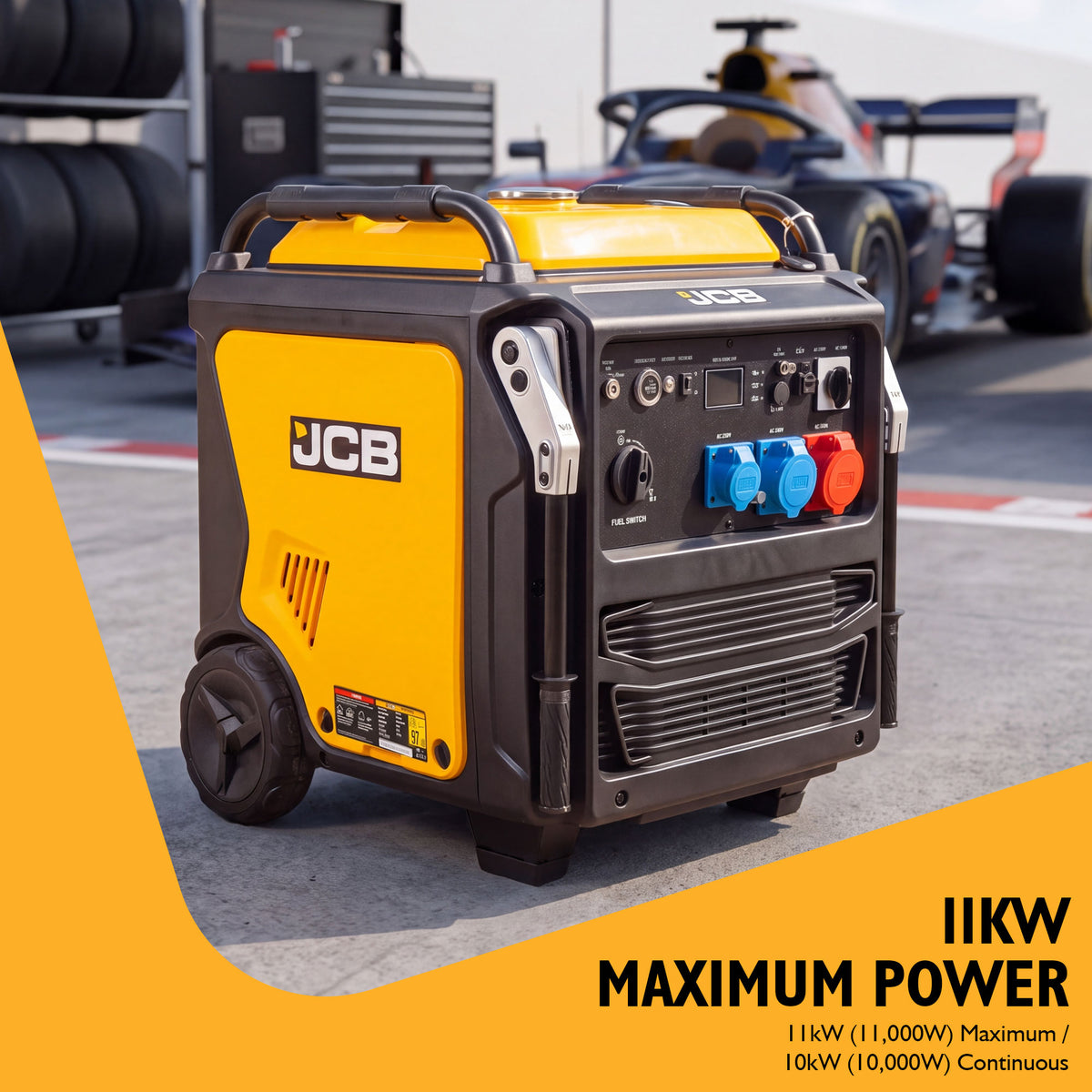

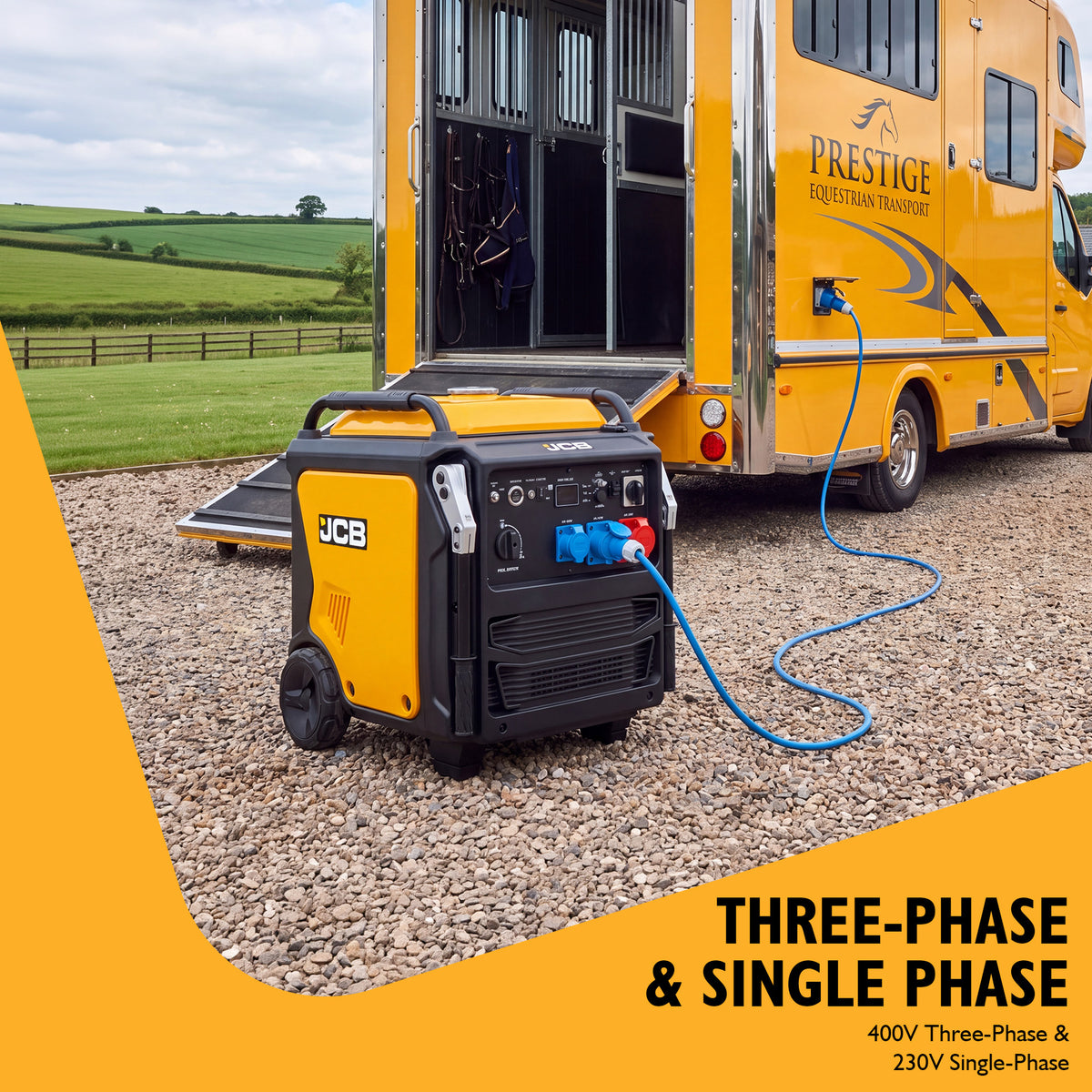

11kW Maximum Three-Phase and Single-Phase Power

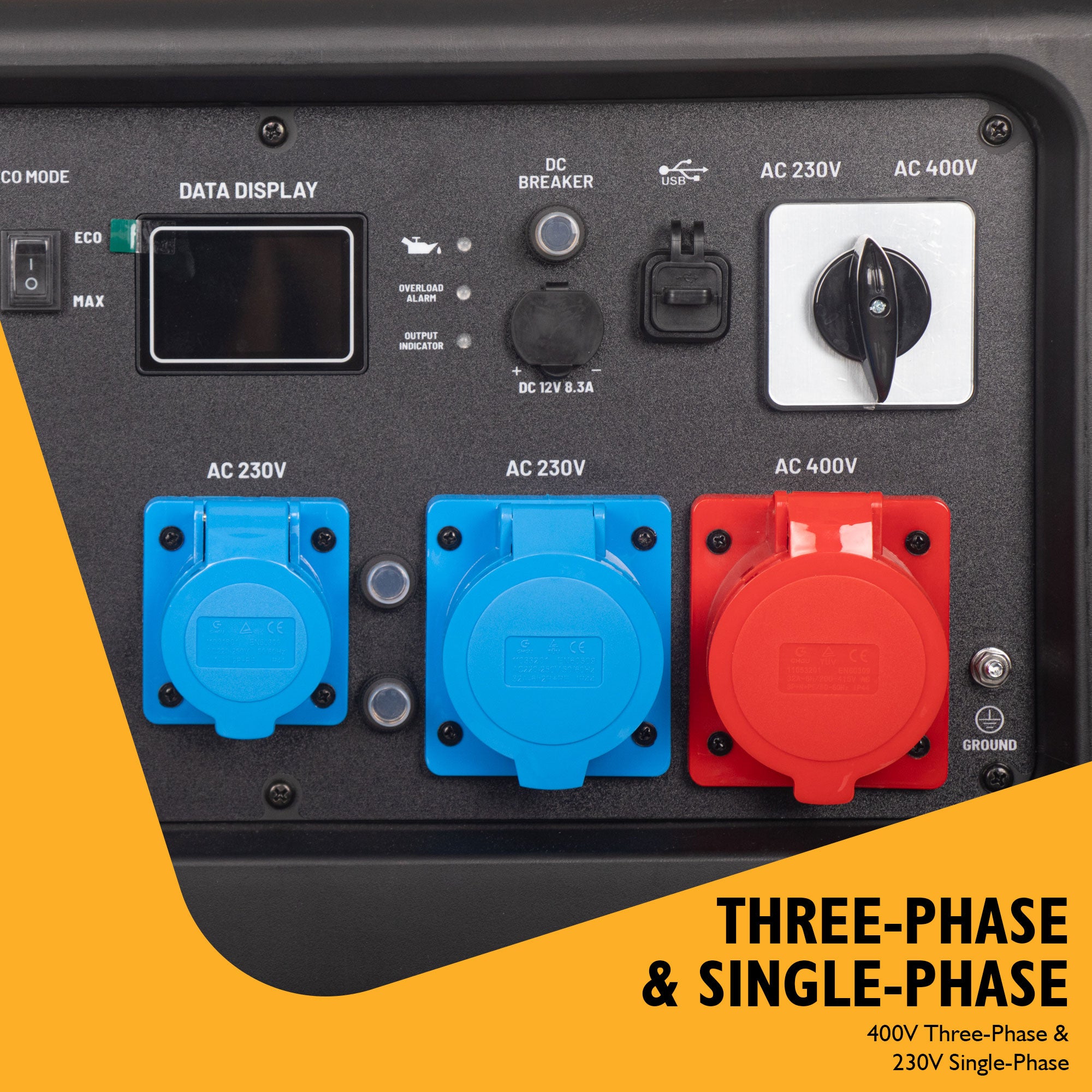

The JCB-IG12000DVE-3 provides 11kW maximum and 10kW continuous output in either 230V single-phase or 400V three-phase mode. A universal changeover switch selects one voltage mode at a time, while three-phase connections and load distribution must be planned by a competent electrician.

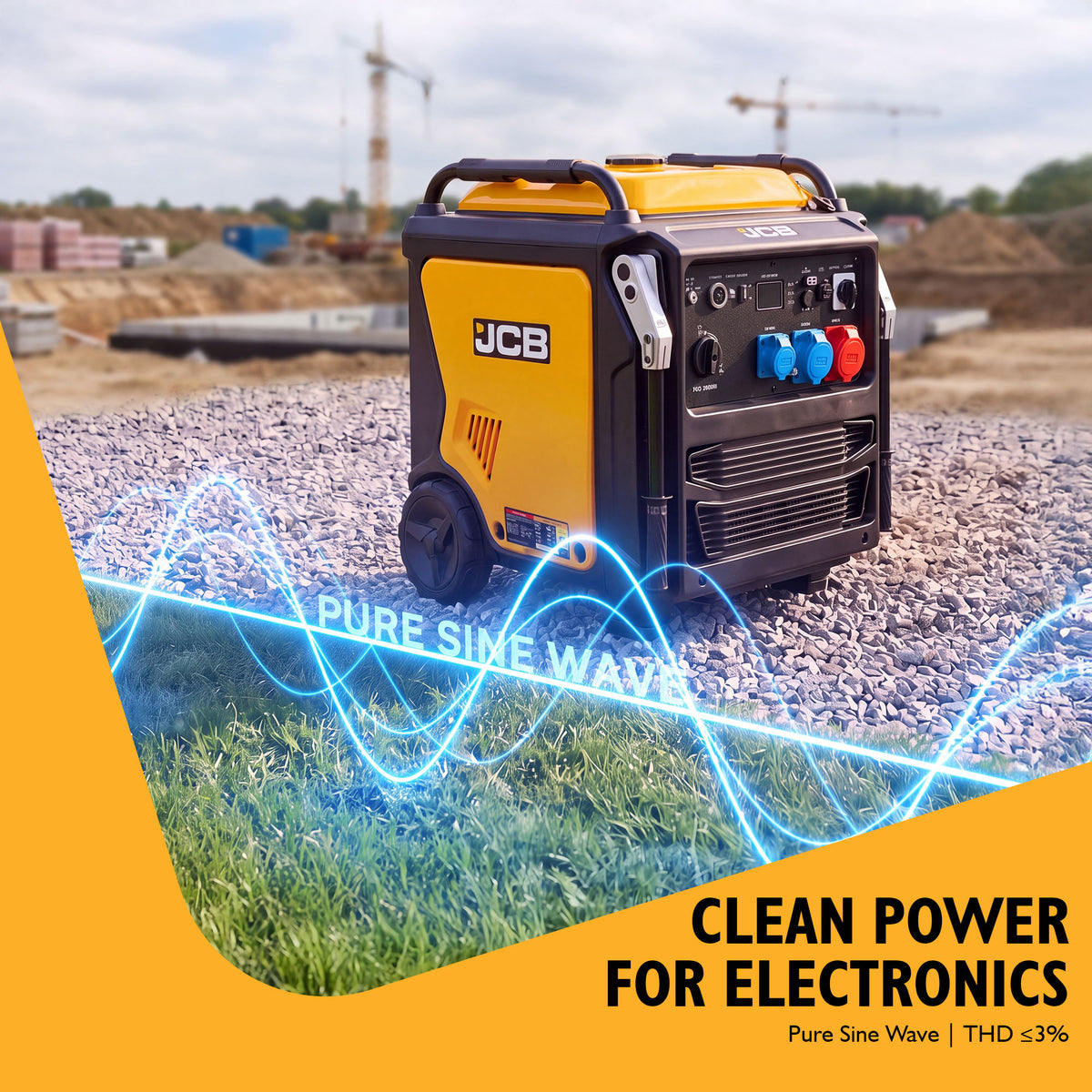

Pure Sine Wave Power with THD ≤3%
The inverter produces pure sine wave output with total harmonic distortion of 3% or less for compatible industrial plant, lighting and temporary equipment.

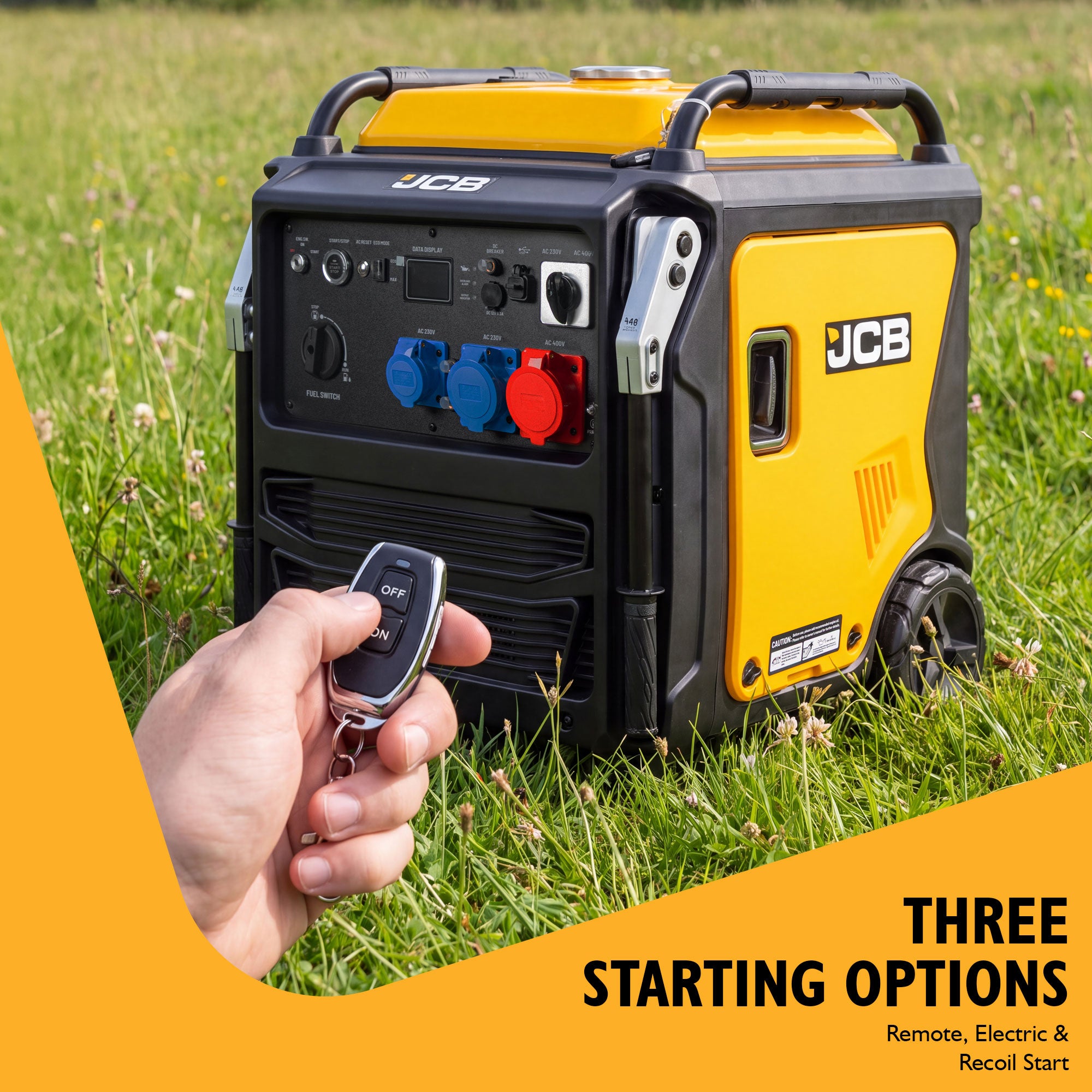

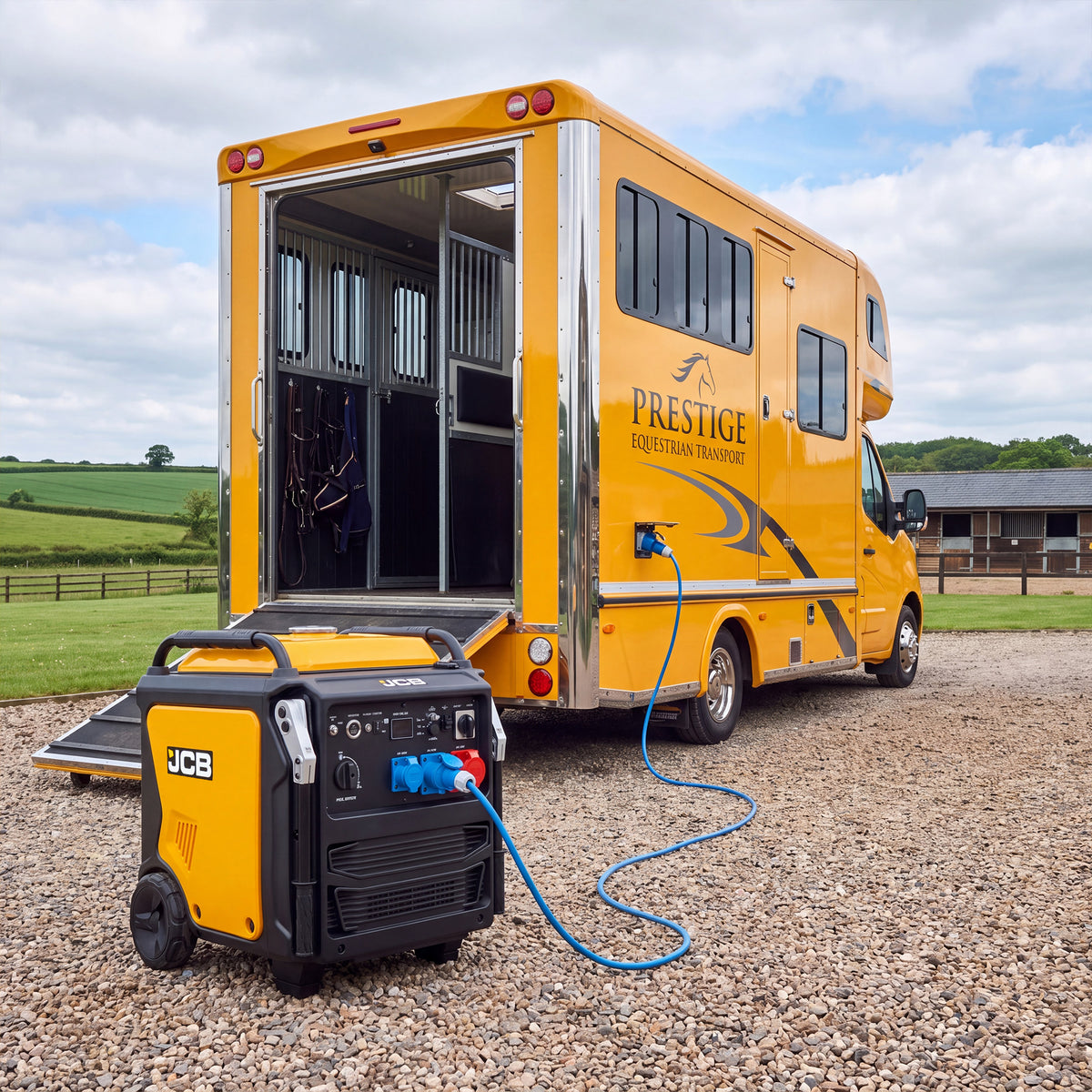

Remote Start and Wheeled Mobility

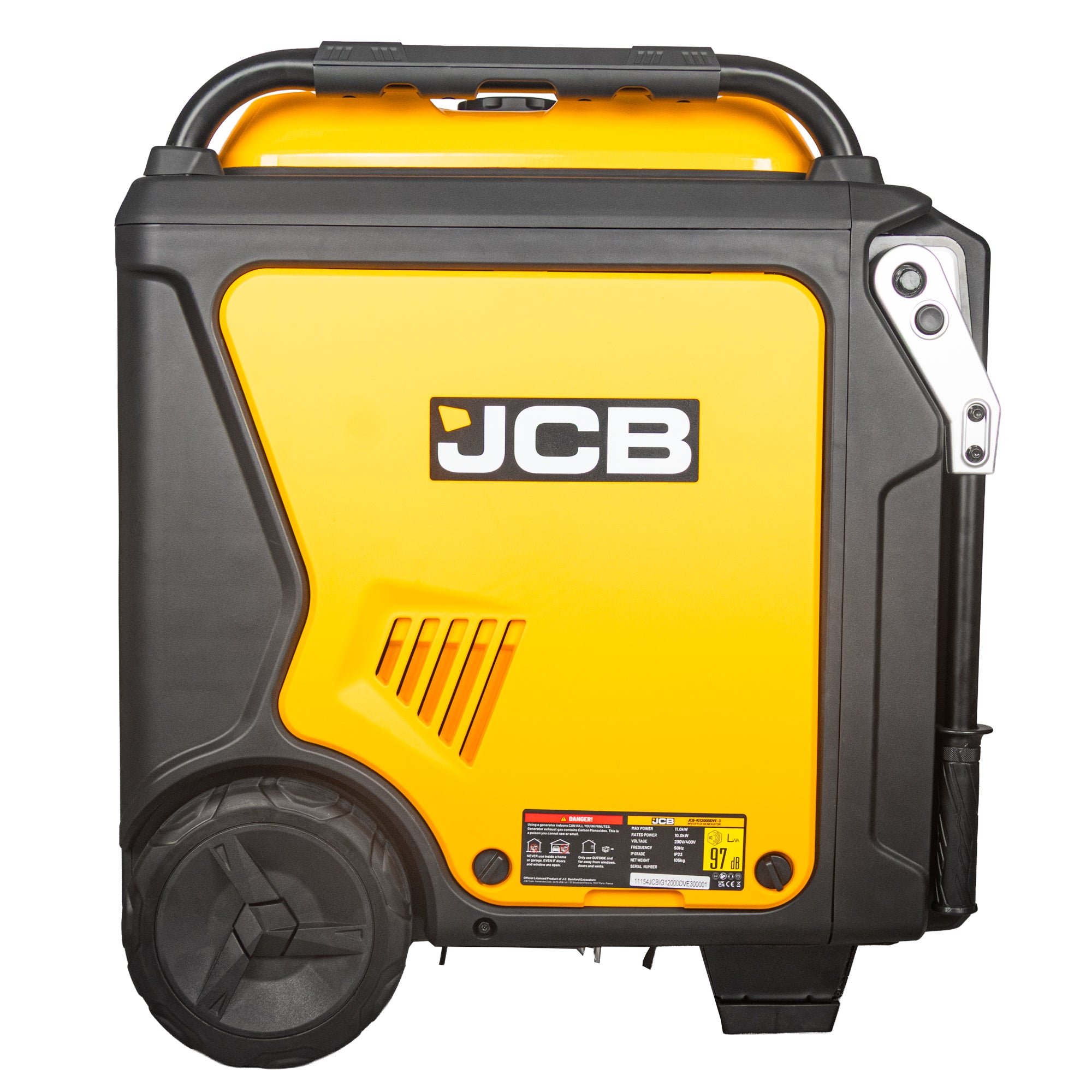

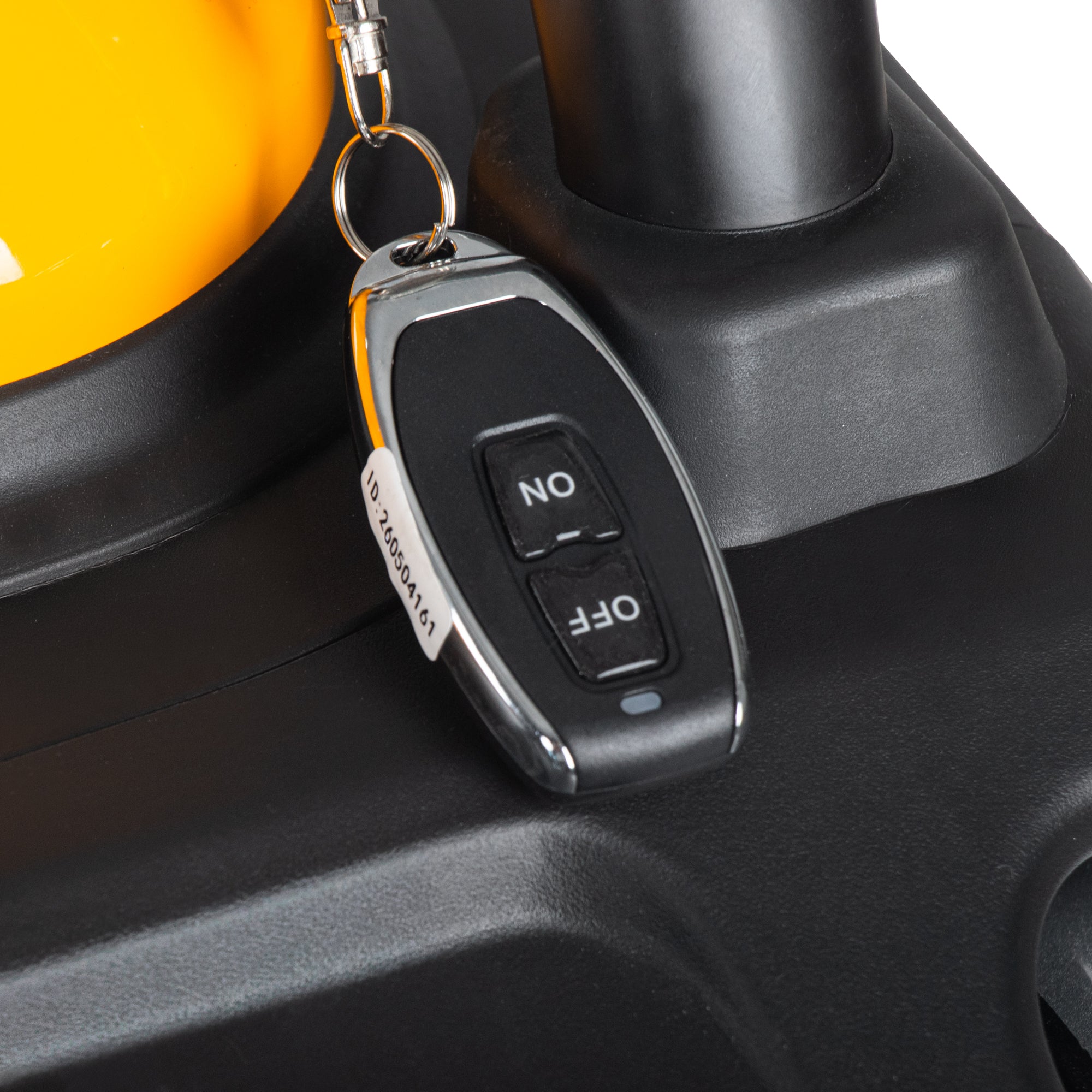

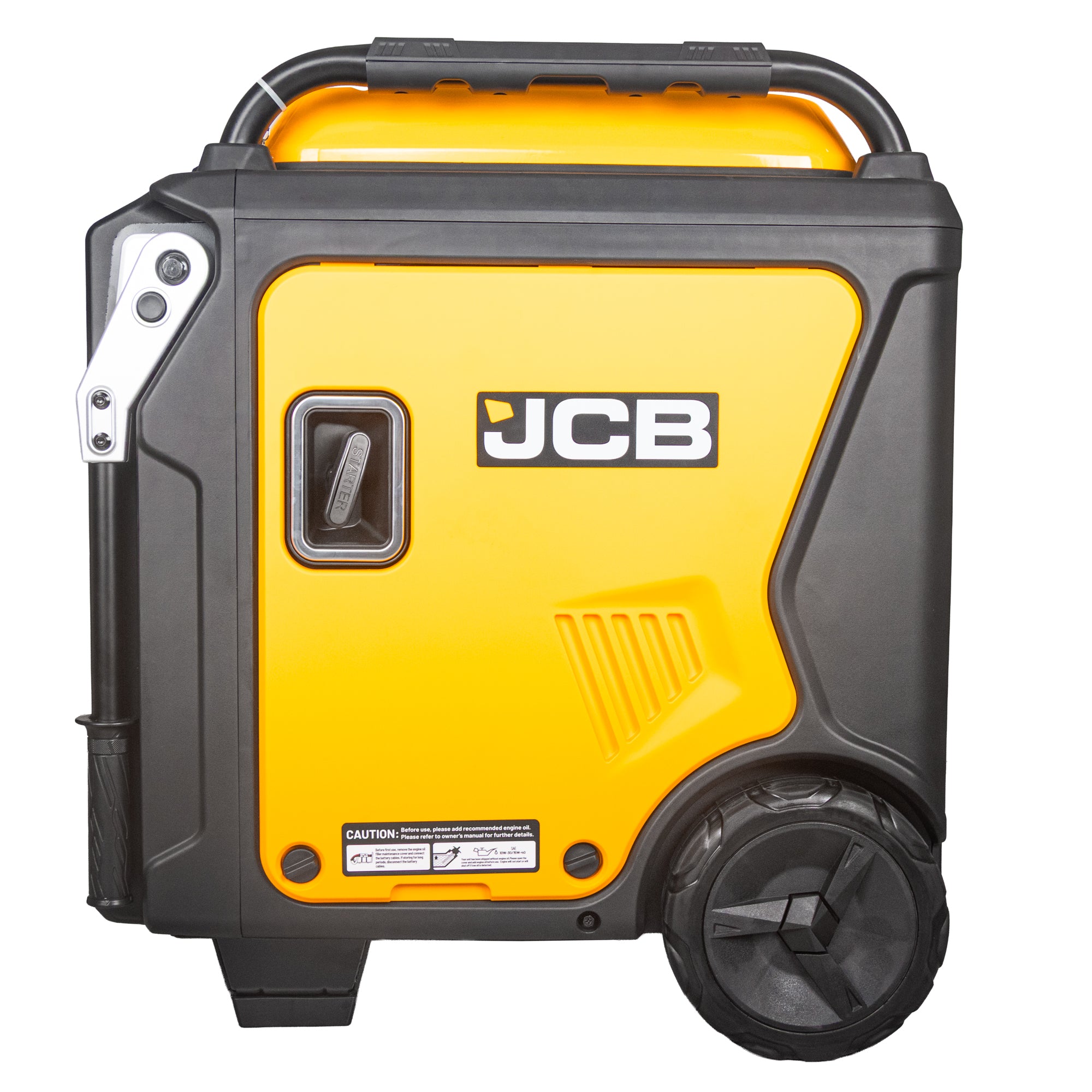

Remote key-fob, electric and recoil starting provide three operating options. The fitted wheel kit supports movement of the 105kg generator, while the current LCD shows voltage, frequency, power and operating-time information.
Carbon Monoxide Warning
Use this generator outdoors only, well away from doors, windows and vents. Never run it inside or in a partly enclosed space, including a house, garage, shed, tent, caravan, motorhome, large vehicle or site cabin, even with doors or windows open. Fit a separate, working battery-powered carbon monoxide alarm inside any nearby enclosed occupied space as an additional safeguard. An alarm does not make indoor or enclosed use safe.
Support, Warranty and Range
UK-based service and parts support is available. Warranty cover varies by use, with up to 3 years/1,000 hours for residential use, 1 year for commercial use and 90 days for hire; inverter/circuit boards carry 2 years. Check the full warranty terms and compare other models in the JCB Tools generator range.
Specifications
| Model | JCB-IG12000DVE-3 |
| Maximum output | 11kW (11,000W) at 230V and 400V |
| Continuous/rated output | 10kW (10,000W) at 230V and 400V; maximum output per phase: 3.3kW |
| Supply | 400V three phase / 230V single phase, 50Hz; one voltage mode at a time, selected by a universal changeover switch |
| Rated current | 43.5A at 230V; 14.5A at 400V |

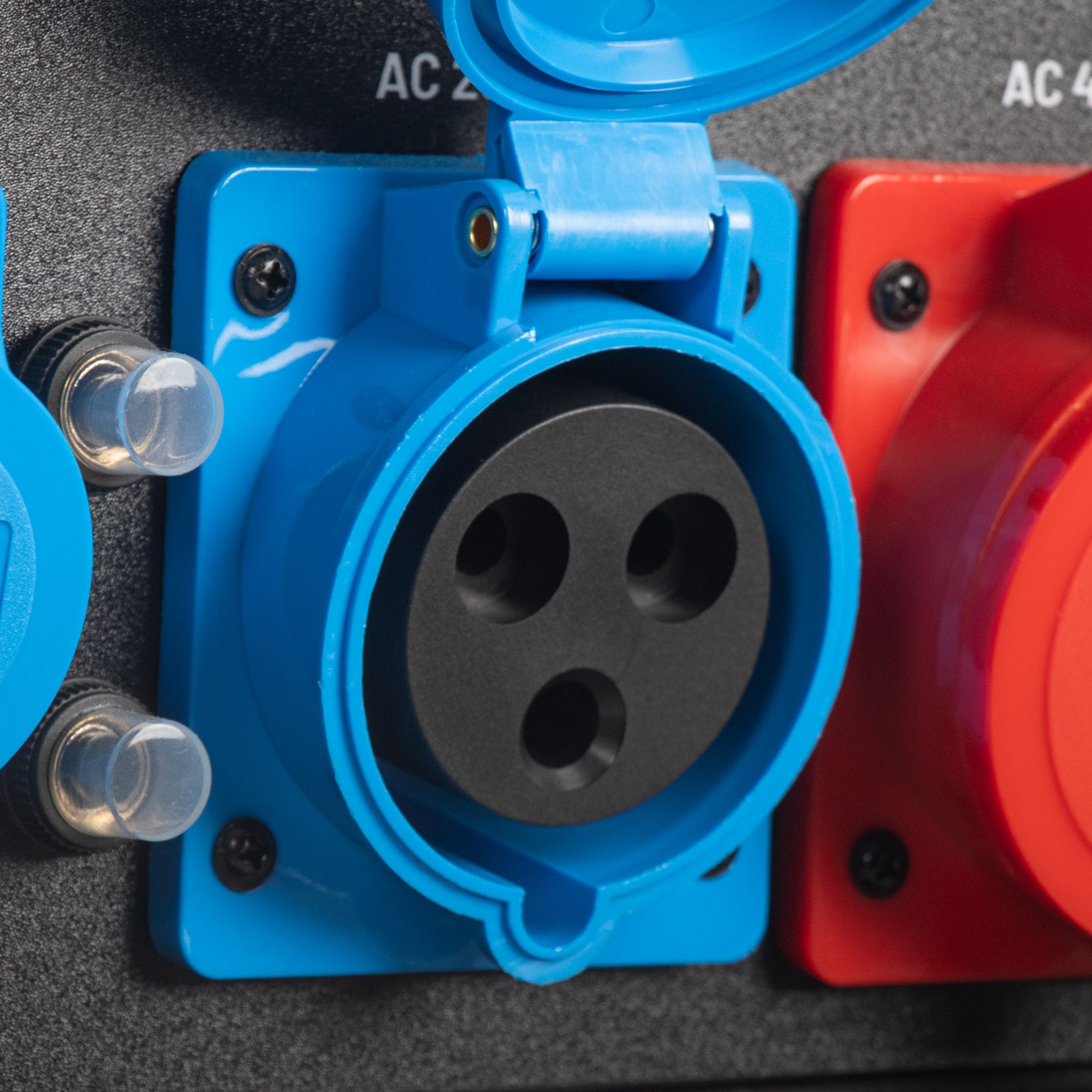

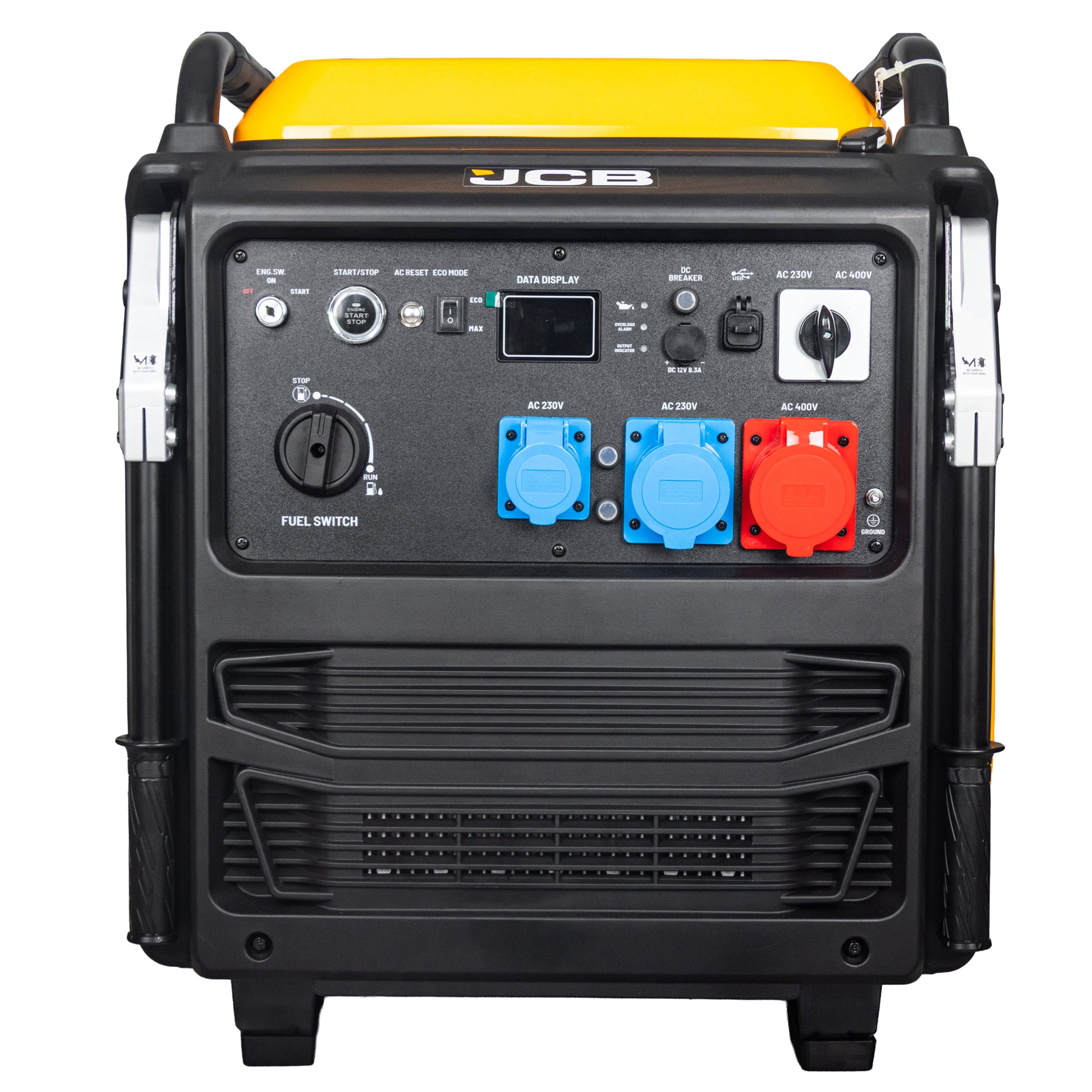

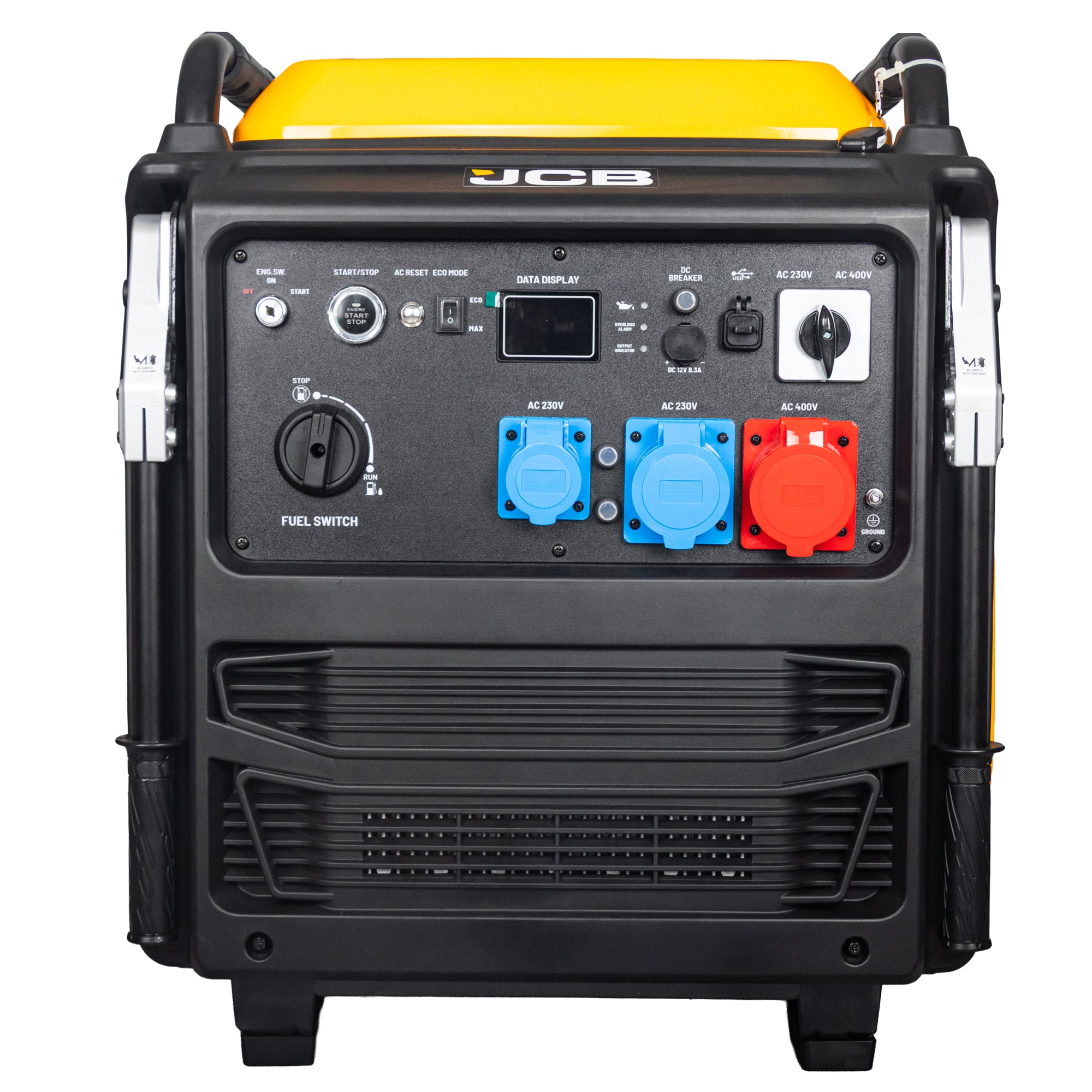

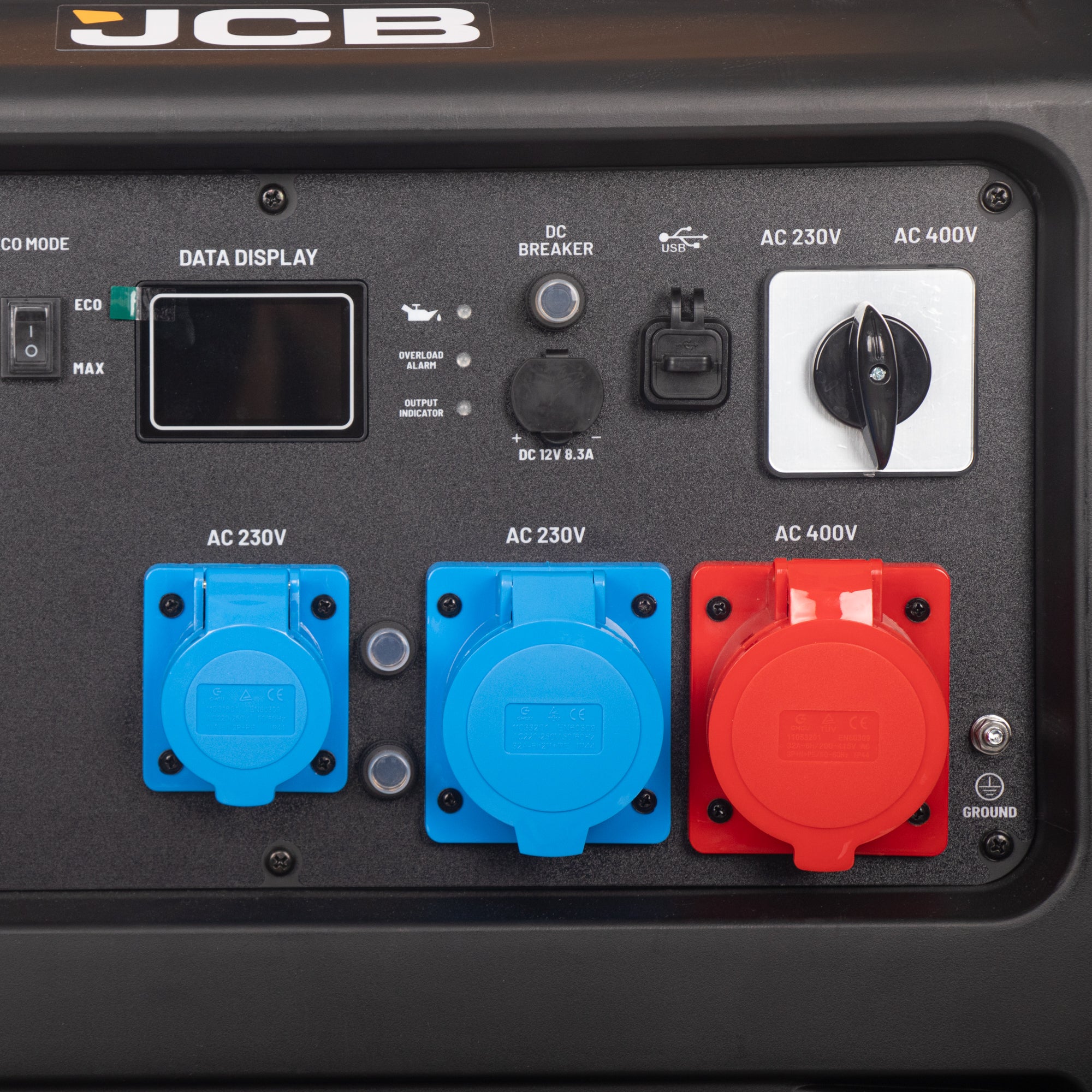

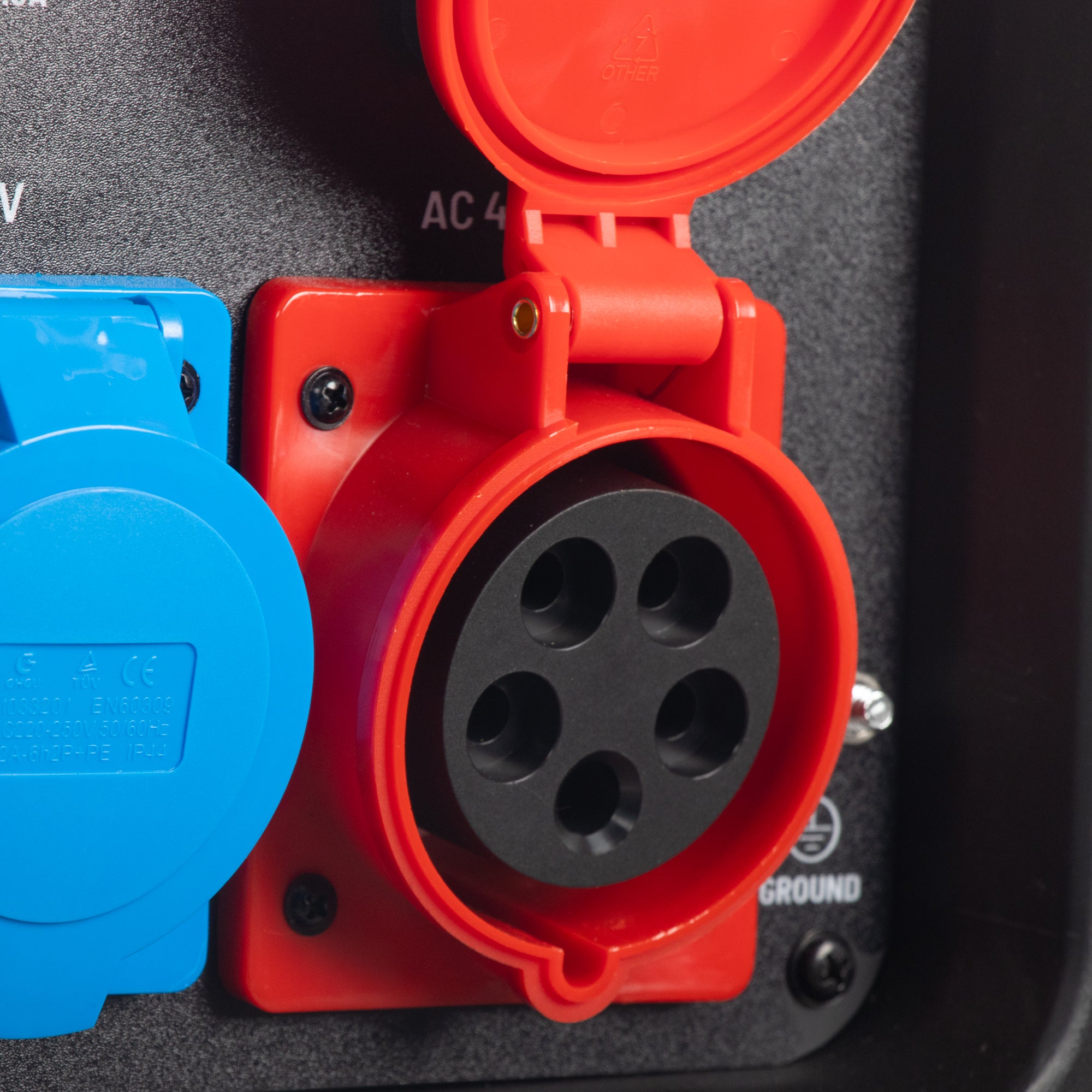

| AC sockets | 1 x 400V 32A industrial red, 1 x 230V 16A industrial blue and 1 x 230V 32A industrial blue |
| Output type | Pure sine wave inverter, THD ≤3% |
| Start | Electric start with lithium-ion starter battery, recoil backup and remote key-fob start/stop |

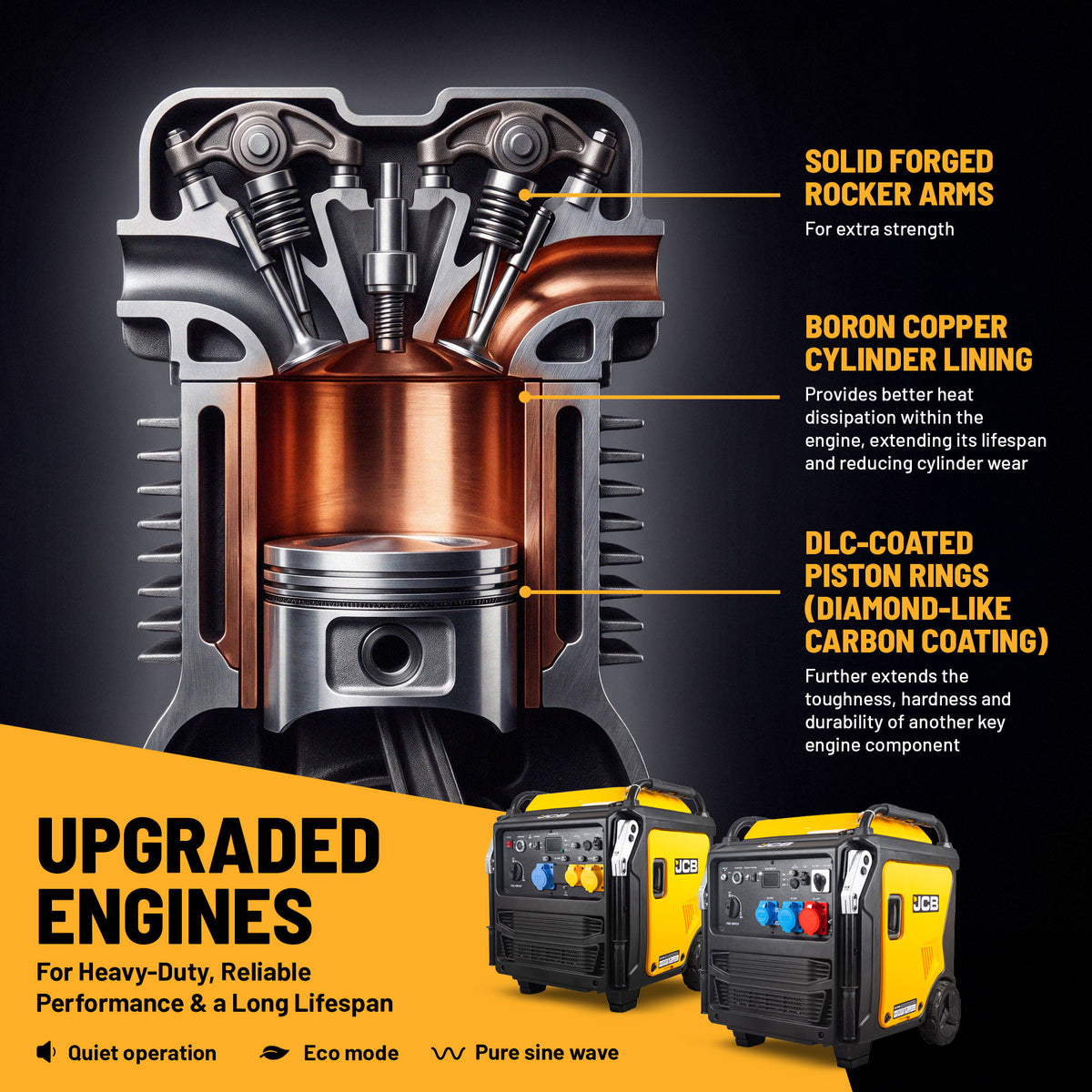

| Engine | 550cc single-cylinder, 4-stroke OHV petrol; maximum engine power: 13kW |
| Engine speed | 3600rpm |

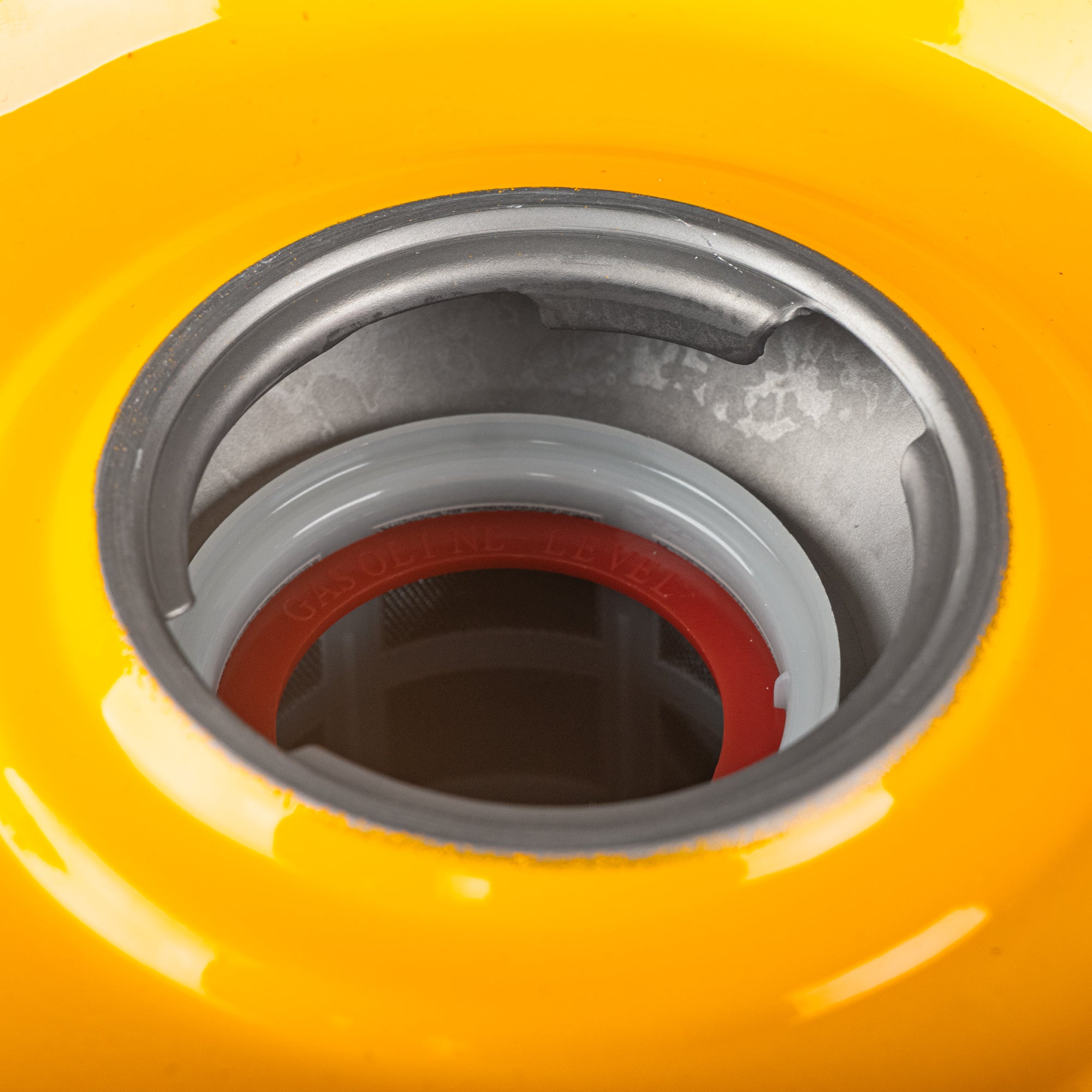

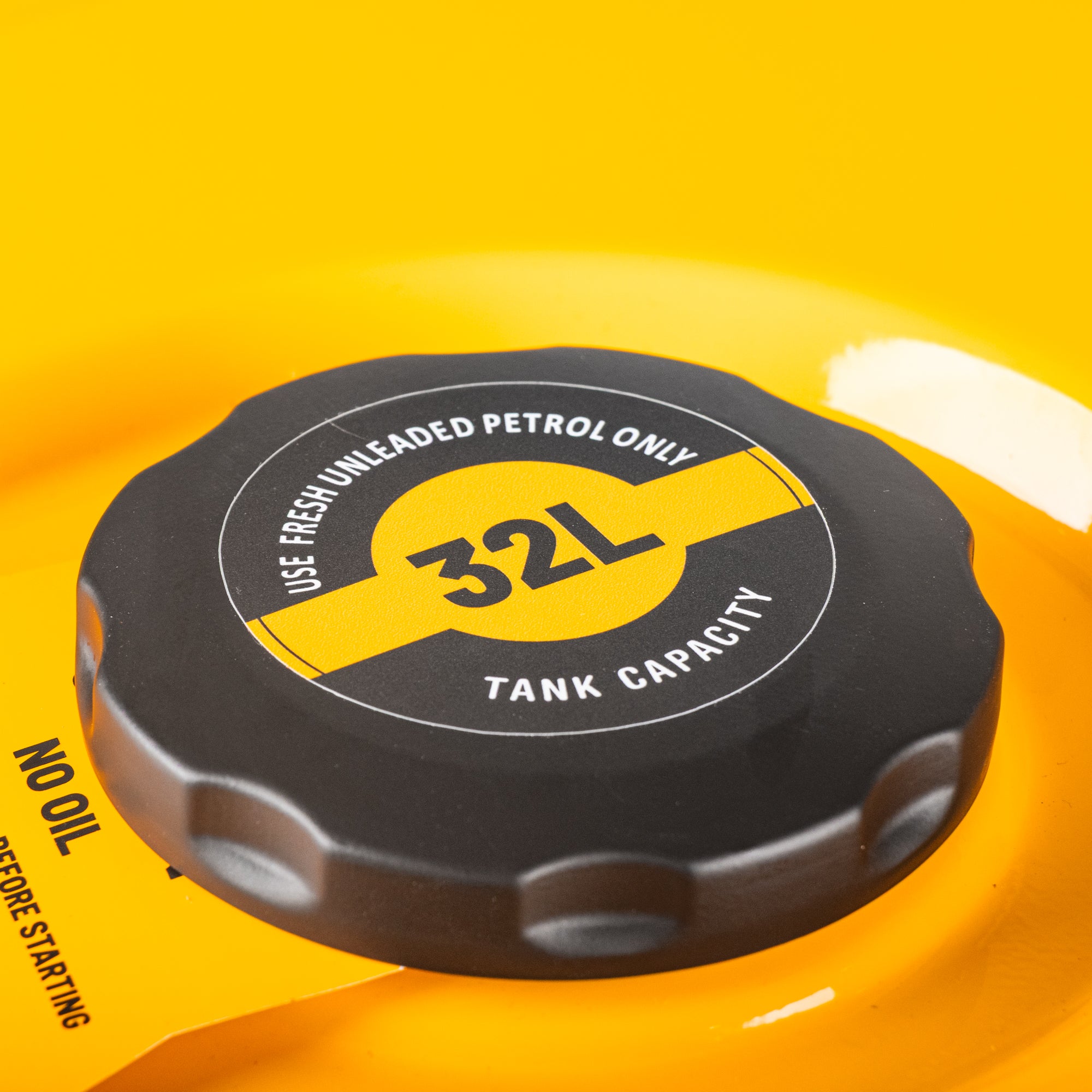

| Fuel | Unleaded petrol; 32L tank; calculated fuel consumption of 0.70L/h at 10% load |
| Engine oil | 1.4L; SAE 10W-30 |
| DC and USB outputs | 12V/8A, USB and USB-C |
| Noise | 60 dB(A) at 10% load from 7m; 61 dB(A) at 25% load from 7m; guaranteed sound power level (LWA): 97 dB(A) |
| Dimensions (L x W x H) | 680 x 670 x 770mm |
| Net weight and mobility | 105kg; wheel kit fitted as standard |
| Controls, display and protection | Eco mode; LCD display shows voltage, frequency, power, cumulative and session operating time; operation, overload and low-oil warning indicators; automatic overload protection and low-oil shut-off |
| Package Dimensions (H x W x L) (mm) | {"h":725,"w":675,"l":815} |
What's in the Box
- JCB-IG12000DVE-3 inverter generator
- Pre-fitted wheel kit
- Pre-fitted lithium-ion starter battery
- Remote key
- Spark plug socket
- Funnel
- Screwdriver
- DC power cable
- Instruction manual
